49-adm00433
49-adm00433

Part Number: ADM00433

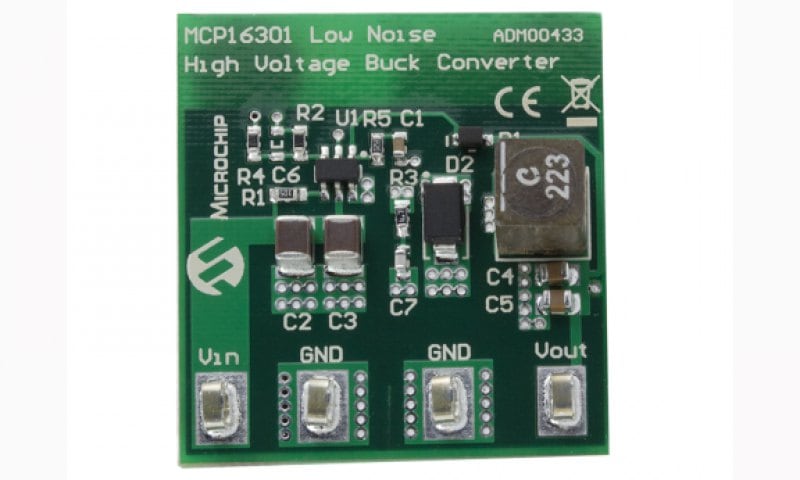

MCP16301 5V/600MA LOW NOISE EVALUATION BOARD



  • Input voltage: 6 to 30V
  • Output voltage: 5V
  • Output capability: 600 mA load current
  • Output ripple plus noise: 30 mVp-p @ 12V input and 100 mA load
  • Low radiated noise
  • Efficiency: up to 91% @ 12V input

    •

    View Purchasing Options
    Contact Us

    Overview

    The MCP16301 5V/600mA Low Noise Evaluation Board is used to demonstrate a high voltage input DC-DC converter design, which can deliver high efficiency, while minimizing high-frequency switching noise. The board steps down high input voltages, up to 30V, to a low output voltage, having more than 90% efficiency and a minimum of 30 mV output ripple. High-frequency input/output noise generated by the switching converters can reach high-noise levels that interfere with other devices powered from the same source. The high amplitude of high-frequency noise can disturb some RF systems. High efficiency is achieved with the MCP16301 buck converter by switching the integrated N-Channel MOSFET at a high speed. The evaluation board is optimized for 12V Input and 100 mA load.

    Devices Supported:  MCP16301

    To view this video, please click manage cookies below and accept functional cookies.
    Manage Cookies

    All Application Notes

    Documentation

    Title
    Document Id
    MCP16301 Evaluation Board User's Guide Download 6361440b-703c-45cf-a49d-4bf83c1cceeb
    MCP16301 5V/600mA Low Noise Evaluation Board (ADM00433) BOM Download aba1f306-4836-401d-9af5-6ee414c761fe
    MCP16301 5V/600mA Low Noise Evaluation Board (ADM00433) Schematics Download e362dd7a-04be-47ff-af01-92aa864908de
    MCP16301 5V/600mA Low Noise Evaluation Board (ADM00433) Gerbers Download 054e22eb-85fa-4ed7-b174-e72f08db17a2

    Application Notes

    Title
    Date
    Document Category
    Reduction of the High-Frequency Switching Noise in the MCP16301 High Voltage Buck Converter 15 Feb 2013 Link Application Notes

    Software

    Title
    Date
    MCP16301 Design Analyzer v1.0 Download 23 Jun 2011
