Understanding Silicon Carbide: The Game-Changer in Power Electronics

Revolutionizing Silicon Carbide in Power Electronics

In the ever-evolving landscape of power electronics, one material has been steadily gaining prominence due to its exceptional properties and transformative potential: Silicon Carbide (SiC). This remarkable semiconductor has revolutionized various industries, from automotive to aerospace, with its ability to operate at high temperatures, voltages and frequencies. Today, we delve into the fundamentals and origins of SiC, offering insights that are crucial for engineers, technologists and innovators looking to harness this advanced material in their applications.

The Rise of Silicon Carbide in Power Electronics

Silicon Carbide's journey began over a century ago, with the first synthetic production of SiC crystals. Since then, it has evolved from an abrasive material to a high-potential candidate for electronic applications. Its inherent properties, such as wide bandgap, high thermal conductivity and chemical inertness, make it an ideal material for power devices that need to withstand harsh conditions while maintaining efficiency.

Why SiC? The Fundamentals Explained

Before we delve deeper into the applications and advantages of SiC, let's explore the fundamental properties that set it apart from traditional silicon:

• Wide Bandgap: SiC has a bandgap nearly three times that of silicon, which translates to higher electric field strength and power-handling capabilities.
• High Thermal Conductivity: With thermal conductivity much higher than silicon, SiC devices can operate at higher temperatures, improving performance and reliability.
• Chemical Inertness: SiC is resistant to chemical erosion, which is critical for devices exposed to harsh environments.
• High Breakdown Voltage – SiC can withstand high voltages before breaking down, allowing for devices with thinner, more efficient designs.

Silicon Carbide's Origins and Evolution

The story of SiC begins in the stars, quite literally. Natural Silicon Carbide, also known as moissanite, is a rare mineral found in meteorites. On Earth, it's synthesized in high-temperature furnaces, where a mixture of silica sand and carbon is transformed into SiC crystals.

Over the decades, advancements in manufacturing techniques have refined the production of SiC, making it more accessible for commercial and industrial use. The Lely method, for instance, was a breakthrough that allowed for the creation of large SiC crystals suitable for electronic devices.

SiC's Impact on Power Electronics

The adoption of SiC in power electronics has been a game-changer, particularly in applications where efficiency, size and thermal management are critical. Here are a few areas where SiC technology shines:

• Electric Vehicles (EVs): SiC enables EVs to have more efficient power inverters, which can lead to longer battery life and extended range.

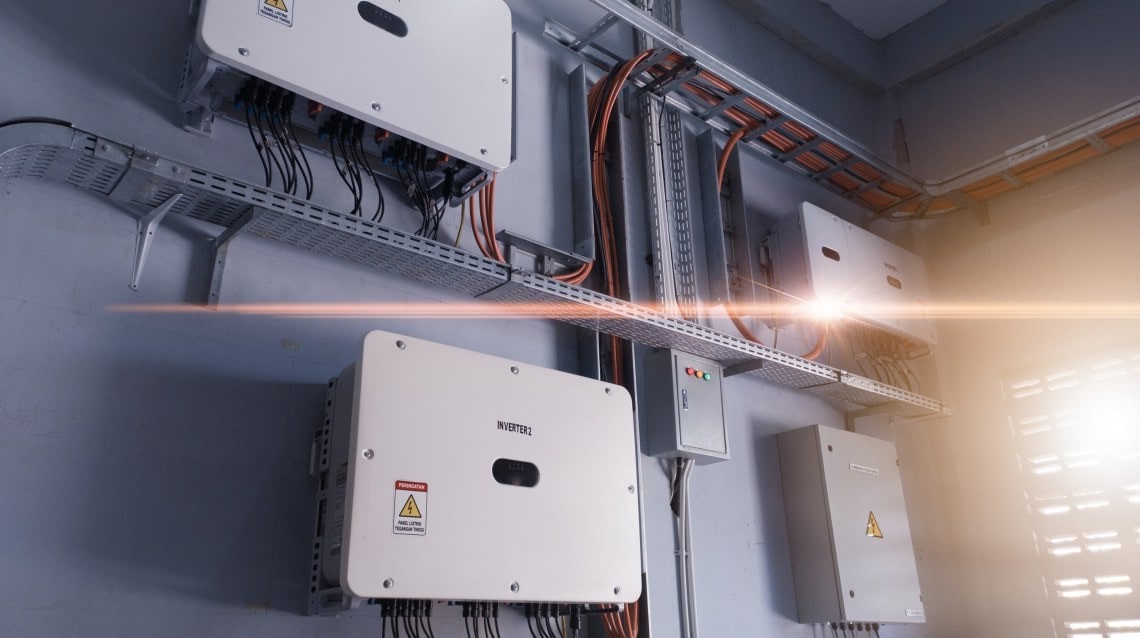

• Renewable Energy Systems: In solar and wind power systems, SiC devices ensure minimal energy loss during power conversion processes.
• High-Voltage Applications: SiC's high breakdown voltage makes it suitable for high-voltage transmission systems, contributing to reduced energy loss and improved grid stability.

The Future Powered by Silicon Carbide

As industries continue to push the boundaries of efficiency and performance, SiC stands at the forefront of this technological revolution. The future promises even greater integration of SiC in areas like 5G networks, where its ability to handle high frequencies can significantly reduce energy consumption and improve system performance.

Training and Resources for SiC Mastery

For professionals eager to master the use of SiC in their projects, we offer comprehensive training resources. These SiC-focused videos provide the foundational knowledge required to understand and implement SiC technology effectively.

• Making a Safe, Intelligent Switch to SiC
• Tame the SiC Beast – Unleash the Full Capability of SiC
• Improve Equipment Uptime and Reliability With SiC E-Fuse Solutions
• SiC Your Way—From Logic to Power With Ease, Speed and Confidence
• Accelerate Time to Market With Plug-and-Play mSiC Gate Drivers

Conclusion

Silicon Carbide represents a significant leap forward in the field of power electronics, offering unparalleled benefits in terms of efficiency, durability, and performance. As we continue to explore its potential, the importance of foundational knowledge cannot be overstated. Whether you're a seasoned engineer or a curious innovator, understanding the basics of SiC is the first step towards unlocking the full potential of this extraordinary material.

For those ready to embark on this journey, explore our silicon carbide mSiC™ products and solutions. We also offer a wide variety design resources, including time-saving reference designs, evaluation kits, models, simulation tools and application notes to accelerate your SiC-based design.
