Silicon Carbide (SiC) Boosts Efficiency and Reliability in Residential Heat Pumps

SiC's Impact on Heat Pump Innovation

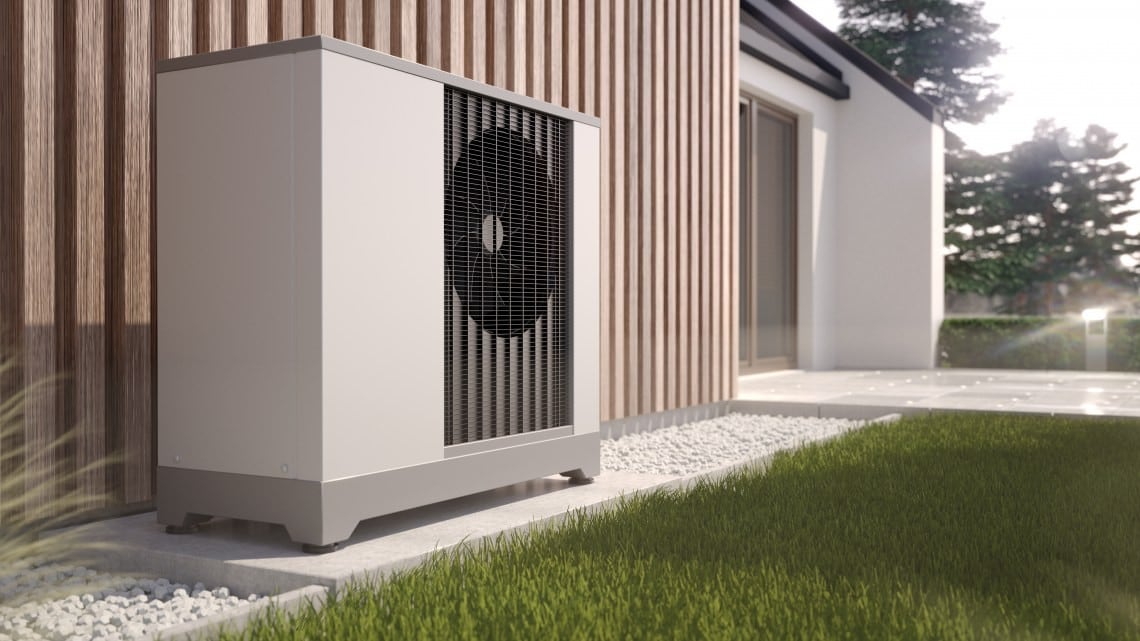

In the quest for more efficient, reliable and environmentally friendly heating or cooling solutions, the residential heat pump stands out as a beacon of innovation. The most popular type of heat pump is an air source, which, as the name suggests, uses air from outside the building (like a basement/foundation/the environment) to heat or cool the interior of the building.

At the heart of these systems lies the unsung hero: power electronics. These components are pivotal in managing the flow and conversion of electrical energy, ensuring that our homes remain comfortable regardless of the season. However, as the demand for more advanced and energy-efficient heat pumps grows, engineers and designers face a myriad of challenges in the power system design.

Enter Silicon Carbide (SiC), a semiconductor material that is rapidly becoming a transformative force in power electronics. With its superior thermal conductivity, high-temperature resilience and efficiency, SiC is poised to overcome many of the limitations of traditional silicon-based systems. But what does this mean for residential heat pump applications? How can SiC not only enhance performance but also drive innovation in this critical area?

The Role of Power Electronics in Heat Pump Systems

Power electronics serve as the backbone of modern heat pump systems, playing a crucial role in managing the flow and conversion of electrical energy within these units. At the heart of a heat pump lies the inverter, a power electronic device that converts the direct current (DC) from the power source into alternating current (AC) to drive the compressor motor & circulation motor. This conversion is vital because it allows for the precise control of the compressor speed, which in turn regulates the heating or cooling output, and blower speed to match the demand. Moreover, advanced power electronics enable the implementation of variable speed drives that significantly improve the efficiency and performance of heat pumps by adjusting the compressor and fan speeds.

However, the integration of power electronics in heat pump systems is not without its challenges. One of the primary concerns is efficiency, especially under partial load conditions, which are common in residential settings. Traditional silicon-based semiconductors have limitations in terms of switching speed and thermal conductivity, which can lead to higher losses and reduced efficiency. Another challenge is the size and weight of the power electronic components, which can affect the overall compactness and installation flexibility of the heat pump unit.

Thermal management is also a significant challenge, as power electronic devices generate heat during operation, and excessive temperature can lead to reduced reliability and lifespan. Designing heat sinks and cooling systems that can effectively dissipate this heat without compromising the heat pump's performance or efficiency is a complex task. Electromagnetic compatibility (EMC) issues can also arise from the high-frequency switching operations of power electronics, potentially causing interference with other electronic devices and requiring careful design considerations to mitigate.

In the context of residential heat pump applications, these challenges underscore the need for innovative solutions that can enhance efficiency, reduce size and weight, improve thermal management and ensure EMC compliance. By addressing these issues, manufacturers can deliver more reliable, efficient and user-friendly heat pump systems that meet the growing demand for sustainable and cost-effective home heating and cooling solutions.

Understanding Silicon Carbide

Silicon carbide (SiC) has garnered significant attention in the power electronics world due to its superior properties compared to traditional silicon-based systems. SiC is a compound of silicon and carbon, which together form a robust molecular structure that gives SiC semiconductors the ability to withstand high temperatures, high voltages and high frequencies with greater efficiency.

One of the most notable properties of SiC is its wide bandgap, which is approximately three times greater than that of silicon. This wide bandgap allows SiC devices to operate at higher temperatures and voltages, which is crucial for applications that demand high power density and efficiency. Moreover, SiC has a higher thermal conductivity than silicon, which means it can dissipate heat more effectively, reducing the need for complex cooling systems and improving overall system reliability.

When compared to silicon-based systems, SiC components exhibit lower switching and reverse recovery losses. This results in smaller, lighter and more efficient power supplies and inverters, as the lower losses allows for the use of smaller heatsinks. Furthermore, SiC's ability to maintain performance under high-temperature conditions could foster a trend of convection cooled heat pumps, further reducing Total Cost of Ownership. The inherent robustness of SiC makes it an ideal candidate for demanding environments.

Advantages of SiC in Residential Heat Pump Applications

SiC technology is revolutionizing residential heat pump applications by offering substantial efficiency gains, enhanced thermal performance and significant size and weight reductions, all while improving reliability and longevity. SiC semiconductors enable heat pumps to operate at higher voltages and temperatures with less energy loss compared to traditional silicon-based systems. This translates into efficiency gains, which are critical in residential settings where energy consumption directly impacts household expenses and carbon footprint.

The thermal performance of SiC-based heat pumps is superior due to SiC's ability to withstand high temperatures without degradation. This ensures consistent operation even under extreme conditions, which is particularly beneficial in climates with severe temperature fluctuations. Moreover, the high thermal conductivity of SiC helps in the effective dissipation of heat, contributing to the overall efficiency of the heat pump system.

In terms of design, SiC components are smaller and lighter than their silicon counterparts, allowing for more compact and less cumbersome heat pump units. This reduction in size and weight not only makes installation easier but also expands the possibilities for where a unit can be placed, a significant advantage for residential applications where space can be at a premium.

Lastly, the reliability and longevity of SiC in heat pumps stem from its robustness and resistance to wear and tear. SiC devices exhibit lower degradation over time, which means that heat pumps can maintain optimal performance over a longer lifespan, reducing the need for maintenance and replacement. This durability is particularly appealing to homeowners looking for long-term, cost-effective solutions for their heating and cooling needs.

The key advantages of SiC in power systems:

• The wide bandgap allows SiC to operate at higher temperatures and voltages, leading to lower switching losses and higher system efficiency
• The superior thermal conductivity, high-temperature resilience and efficiency allows SiC to overcome the limitations of traditional silicon-based systems
• SiC provides substantial efficiency gains, enhanced thermal performance and reductions in size and weight, improving reliability and longevity
• SiC's robustness and resistance to wear and tear extend the lifespan of heat pumps, offering long-term, cost-effective solutions for homeowners

Challenges in Heat Pump Power System Design

Designing power systems for heat pumps presents a complex set of challenges that require a delicate balance between performance, reliability, cost-effectiveness and compliance with regulatory standards. One of the primary difficulties lies in accommodating variable loads and environmental conditions. Heat pumps must operate efficiently across a spectrum of temperatures and usage patterns, which can fluctuate dramatically with seasonal changes and user demands. This variability necessitates a power system that can quickly adjust to changing conditions without sacrificing performance.

Ensuring reliability is another critical concern. Heat pumps are long-term investments for residential and commercial users alike, and downtime due to power system failures can be costly and inconvenient. Designers must incorporate components that withstand continuous operation and handle power fluctuations and environmental extremes. This reliability must be achieved without significantly driving up costs, as price remains a decisive factor for many consumers and businesses when selecting HVAC solutions.

Cost-effectiveness extends beyond the initial purchase price to encompass the total cost of ownership, which includes maintenance, energy consumption and the potential costs associated with system downtime. Designers are tasked with selecting materials and components that offer durability and energy efficiency while keeping the overall system cost within competitive ranges.

Finally, meeting regulatory and safety standards is a non-negotiable aspect of heat pump power system design. With regulations often varying by region and becoming increasingly stringent in terms of energy efficiency and environmental impact, designers must stay abreast of current and upcoming legislation. This includes adhering to standards for electrical safety, refrigerant use and emissions, which can influence everything from the choice of components to the system architecture.

Navigating these challenges requires a multidisciplinary approach, combining expertise in thermodynamics, electrical engineering, materials science and regulatory compliance. It also underscores the importance of ongoing research and development to innovate more adaptable and resilient power systems that can meet the evolving demands of heat pump technology.

SiC's Impact Power Grid Stability and Regulation Compliance

SiC components are increasingly being utilized in the power electronics systems of residential heat pumps due to their superior thermal conductivity, higher breakdown electric field and faster switching capabilities compared to their silicon counterparts. These properties translate into tangible benefits for residential and commercial heat pump applications.

Beyond efficiency and energy savings at the heat pump, there are also substantial impacts that appear in the power grid. Citing a paper by Aalbord University in Denmark:

by directly connecting the motor to the grid, the start-up is rough both for the grid and for the motor—a high startup current being drawn to magnetize the motor. Even worse, some are using single phase motors and are therefore connected to a single phase (230 V) creating unbalance in the distribution grid. An improved heat pump topology is shown in [the figure below], where a variable speed drive is used to drive the compressor. Using a power converter to control the motor results in a fine control of the temperature and reduces the mechanical stress of the heat pump motor and compressor. The startup is soft which in turns helps the distribution grid and improves the reliability of the heat pump. (Trintis et al., 2015.)

Moreover, the adoption of SiC in heat pumps aligns with global energy efficiency goals and regulatory requirements. In regions with stringent energy regulations, such as the European Union's Ecodesign Directive, the improved efficiency from SiC technology helps manufacturers meet and exceed the required standards, thus making their products more competitive in the market.

Navigating the Decision: SiC vs. Traditional Solutions

Navigating the decision between SiC and traditional silicon-based IGBT solutions in power electronics, particularly in applications like inverters for renewable energy systems, requires a meticulous cost-benefit analysis and a clear understanding of long-term ROI considerations. According to a publication by Aalborg University in Denmark, “…an increase in electricity consumption is expected as the heating and cooling market expands, higher energy efficiency will be required and the energy intensity of air conditioning, for example, will have to be reduced from 3,000 kWh/unit/year in 2021 to 2,000 kWh/unit/year in 2030“ (Idaka et al., 2023).

SiC technology, while often more expensive upfront, offers superior performance in terms of efficiency, thermal conductivity and power density. This translates into lower operational costs over time due to reduced energy losses, smaller heat sinks and potentially smaller overall system size. Industry research has shown that SiC can achieve significant efficiency improvements over silicon in certain applications.

Long-term ROI is a critical factor for many decision-makers, as the initial investment in SiC technology can be offset by the lower total cost of ownership. This includes savings from reduced cooling requirements, lower maintenance costs and the extended lifespan of the components.

By reducing the switching losses, the efficiency of a high-efficiency inverter—already at a high 97.5% to 98%—can be further improved by an additional 1.5%. Although this boost in inverter efficiency is beneficial, the key advantage lies in the inverter's higher switching frequencies. Enhancing the inverter's switching frequency significantly improves the quality of the supply current to the electric machine and raises the system's efficiency by about 14% in the partial load range. This substantial increase in efficiency has a more pronounced impact on the energy cost over time.

Addressing the risk-averse nature of the industry involves demonstrating the reliability and maturity of SiC technology. With numerous successful deployments and endorsements from leading manufacturers, SiC is increasingly being recognized as a viable and advantageous alternative to traditional solutions. Moreover, as the demand for energy-efficient and high-performance power systems grows, the industry is gradually shifting towards advanced semiconductor materials like SiC that can meet these demands. By presenting case studies and real-world examples where SiC has led to measurable improvements in performance and cost savings, stakeholders can be more confident in the technology's value proposition. Additionally, the growing regulatory push for energy efficiency and reduced carbon emissions can serve as a catalyst for the adoption of SiC, as it aligns with broader environmental and sustainability goals.

Conclusion

In summary, SiC technology is not just a theoretical enhancement but a practical solution that is already being implemented in residential heat pumps to deliver significant efficiency improvements. These advancements are critical as the industry moves towards more sustainable and energy-efficient heating solutions, and they serve as a testament to the potential of SiC in modern power electronics applications.

As the residential heating and cooling industry continues to evolve, SiC technology is set to play a pivotal role. Its advantages align with the growing demand for energy-efficient, sustainable and high-performing home appliances. Manufacturers and engineers are looking to SiC as a key material for next-generation residential heat pumps.

SiC is emerging as a key material in power electronics, enhancing the efficiency and reliability of residential heat pumps.

Power electronics, crucial for managing electrical energy flow and conversion, benefit from SiC's properties, enabling variable speed drives and precise control of heat pump compressors.

Choosing between SiC and traditional silicon-based solutions involves considering long-term ROI, with SiC often providing lower operational costs and energy savings.

The industry is recognizing SiC as a reliable and mature technology, with its adoption driven by the need for energy-efficient and high-performance power systems.

SiC technology supports global energy efficiency goals and helps manufacturers meet stringent regulatory requirements.

Silicon carbide is revolutionizing residential heat pumps with superior properties and benefits over silicon IGBTs. As the demand for more efficient and sustainable technologies increases, we can expect to see more applications of SiC in the residential sector. Our broad portfolio eases the adoption of mSiC™ products and solutions helps to adopt SiC with ease, speed and confidence.
