Edge Computing and IoT Products of Tomorrow
The demand for analyzing data at the edge is a growing product requirement. Computing at the edge device instead of the cloud means that….
Customers who have struggled to design IoT edge computing products will now be able to understand all of the requirements needed for secure connectivity, data processing, system design and life cycle management, thanks to our total system solution SOM approach.
Big data, smart devices, cloud connectivity, artificial intelligence (AI), machine learning (ML) and security. These are the terms you hear at every technology conference in existence today. We are swimming in an ever-expanding sea of data, and IoT devices are trying to keep up by analyzing as much as possible in the cloud, while still fighting off security threats and vulnerabilities! A typical IoT-based device is often reliant on a stable and secure internet connection in order to compute data points locally in the cloud, sometimes before it can perform vital task(s).
So, what happens when that device connection is not stable, or the cloud environment experiences technical issues?
In this scenario the device might not be able to perform appropriate tasks based on the lack of instruction from the cloud. Now imagine a similar device that can compute the same data points and is able to act without an internet connection, all the while maintaining security at the hardware level. Many devices today are trending in this direction and for very good reasons.
Due to security risks and customer demands for more intelligence at the edge, an evolution of the IoT market is taking place. Catering to edge technologies, the computational power needed for data gathering, processing, communication and running complex security algorithms is exponentially rising. All these requirements, when combined with the shrinking size of end products, present some serious circuit design challenges, including system power management.
While increasing edge computing the remote connection to the cloud remains valuable for collecting summary data from the edge device or over the air updates.
This article aims to explain these challenges while offering solutions for current and future product designs.
An example of how IoT needs are changing is illustrated in figure 1 and 2.

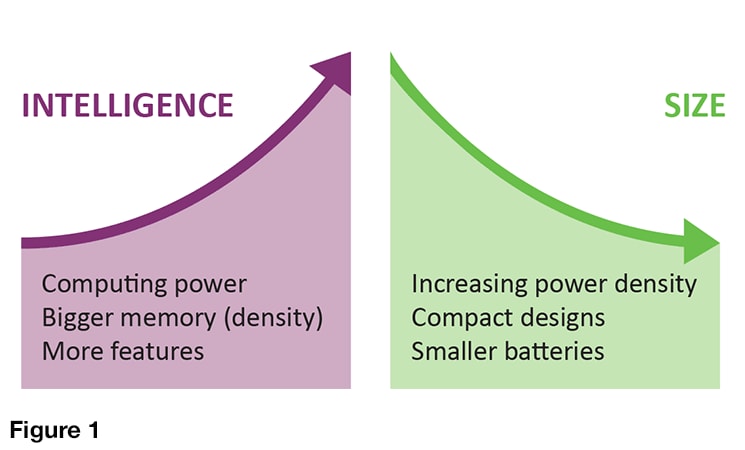

Figure 1. The challenges of intelligence and shrinking solution size.

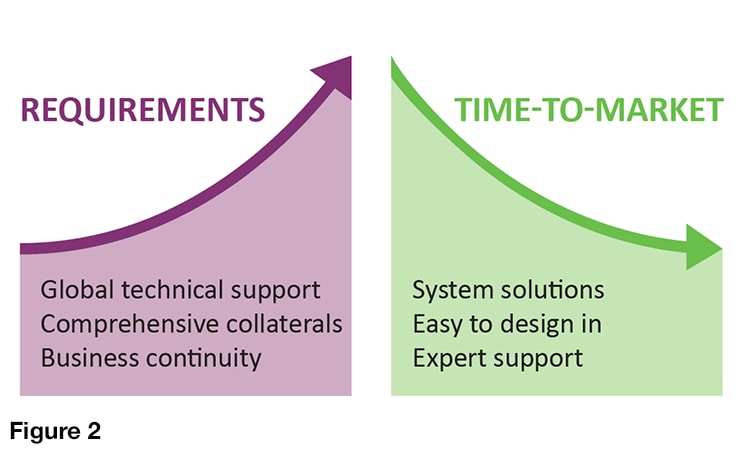

Figure 2. The needs of customers are changing as well.
Let’s tackle the intersection of intelligence and size first, as seen in figure 1.
Understanding Computing Power Differences

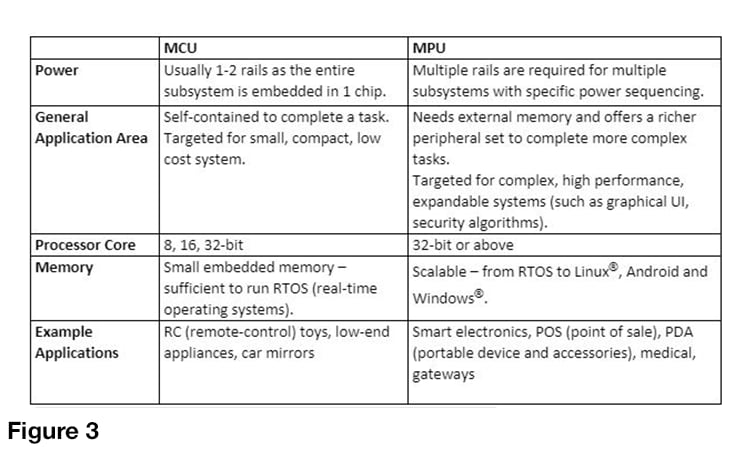

Figure 3 outlines some of the key feature differences. Go here to view a full-size image of Figure 3.
MPU Based Edge Computing Solutions
Microchip’s MPUs are a natural extension of our 32-bit microcontroller portfolio and may be a fit for you if you fall into any of the following categories:
Have you outgrown the capabilities of an MCU?
Do you have the need for large external memory?
Do you want to a use Linux operating system (OS) which also include the middleware and drivers you need, free of charge?
Transitioning to an MPU can be greatly simplified by using an MPU-based System-On-Module (SOM) or System-in-Package (SiP) solution. These offerings take away the complexity of high-speed PCB design and provide a robust and reliable power management implementation. Effortlessly move through the hardware development process by using the available development boards, MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony v3 peripheral libraries and device drivers.
For those of you using Linux, all of Microchip’s Linux development code is mainlined in the Linux communities providing you full access to source code and long-term support. This also opens the door to the world’s largest developer community providing access to a plethora of qualified software engineers who can assist with your projects.
Securing the Edge
This is a very cost-efficient way to solve the challenge of security logistics. You will save the cost of not only hiring a third-party certificate authority company but also save on test development, implementation and maintenance due to a customized programming. As each key is unique to each device, each system becomes unique. Previously, this system “personalization” causes a logistical nightmare for the product owner, as uniqueness adds consequent costs to their supply chain. But Microchip’s provisioning service significantly reduces all those costs and provides a securely pre-provisioned chain of trust even for low volume projects, thanks to the ATECC608A Trust&GO from Microchip’s Trust Platform.
Connecting the Edge
Timing the Edge
Powering the Edge
Microchip not only provides all the above hardware, but also the software (free Linux distribution) as part of a fully validated solution in Wireless System-On-Module (WLSOM1). This facilitates a risk-free foundation, leading customers to fast time-to-market and high-quality solutions.
AWS IoT Greengrass
Bringing It All Together as a Total System Solution – ATSAMA5D27-WLSOM1
Microchip has developed a total system solution that solves all the major hurdles discussed in this article. It includes the following solutions and is depicted in Figure 4:
SAMA5D27-LD2G: System-in-Package (SiP): 32-bit MPU + LPDDR2
MCP16502: Power Management IC (PMIC)
MIC842: Voltage detector
SST26VF064BEUI: NOR Flash memory
KSZ8081: 10/100 Ethernet PHY
DSC6102/6003: 25 and 24 MHz oscillators
ATWILC3000: Wi-Fi/Bluetooth module

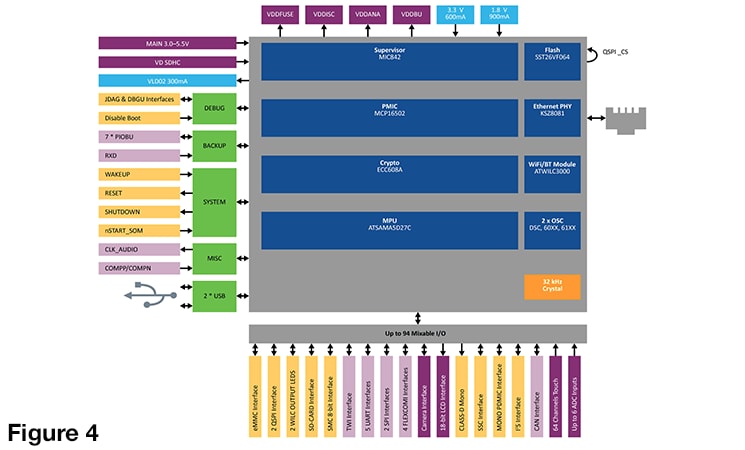

Figure 4. ATSAMA5D27-WLSOM1 Block Diagram. Go here to view a full-size image of Figure 4.

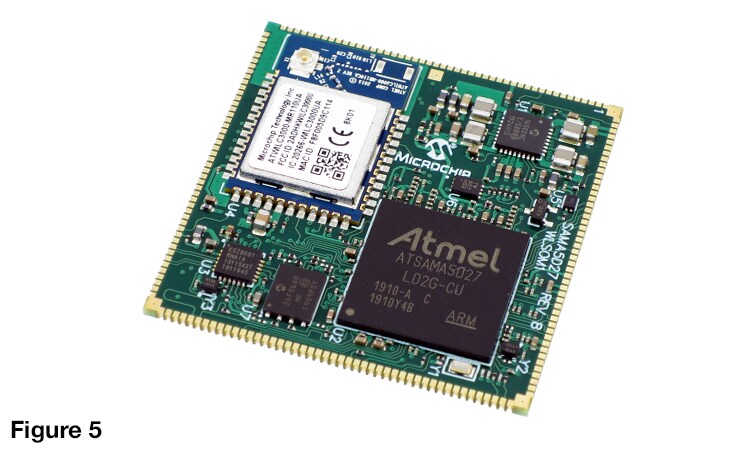

Figure 5. SAMA5D27 Wireless SOM1 (WLSOM1) is a small single-sided System-On-Module (SOM).
Now you can fast forward to your smart, connected and secure future with Microchip, accelerating your IoT development with a total system solution and world-class global design support. To learn more, visit Intelligent Gateways.
