SmartHub™ ICs

Flexible USB SmartHub™ Bridge ICs

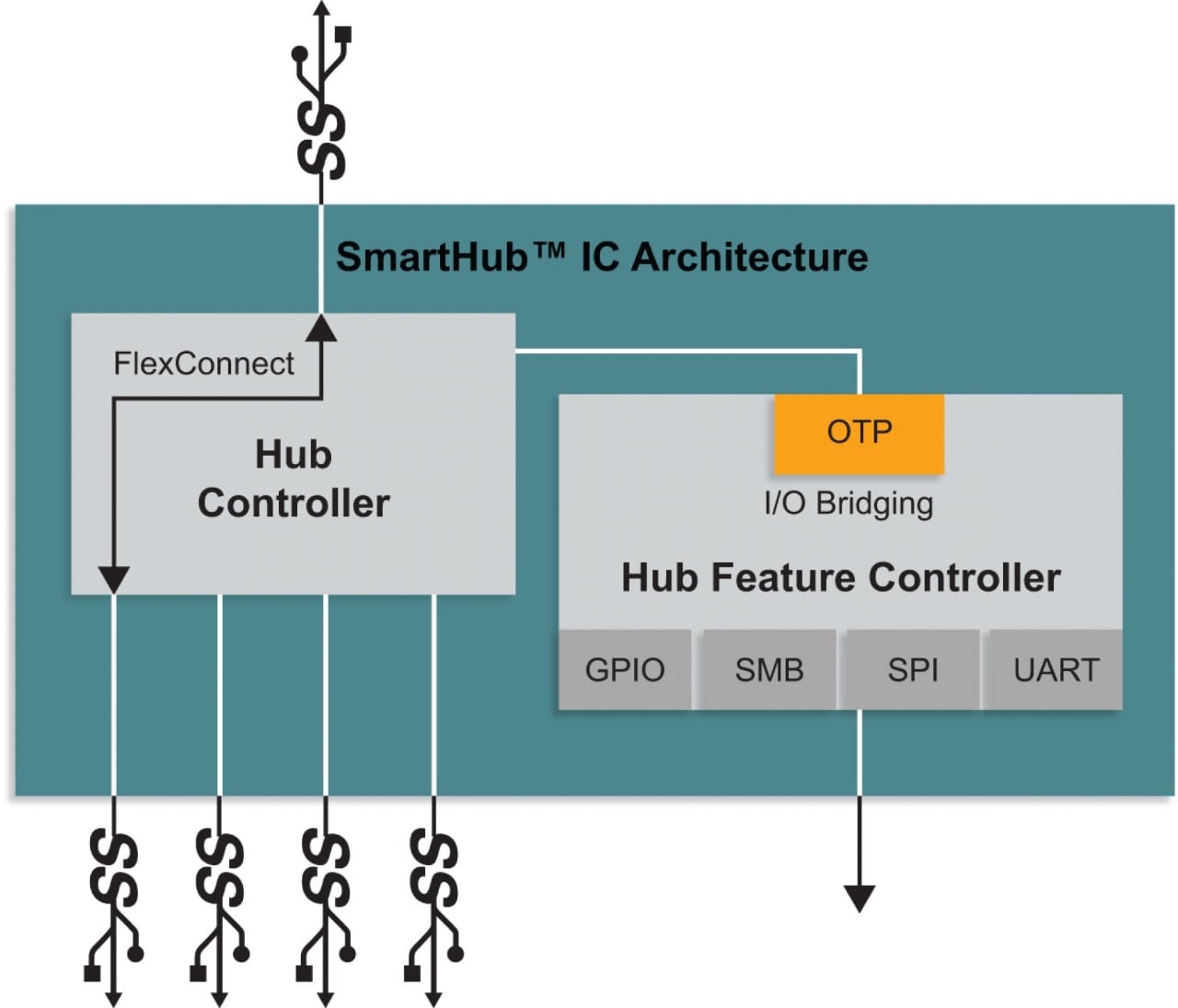

A SmartHub IC is a USB hub that integrates system-level functions typically associated with a separate microcontroller (MCU) or processor. It provides an extra port to handle host communication outside of USB. This enables the host to interact with peripheral components under the USB umbrella without the need for special bridge ICs. The downstream port used with the external bridge IC can now be made available for other USB functionality. We offer USB 2.0 and USB 3.2 SmartHub ICs that feature I/O bridging and FlexConnect port swapping and switching technologies to deliver expanded functionality, provide a more robust data interface and reduce BOM cost for applications such as:

Sub-system connectivity (wireless modules, POS peripherals, GPIO)
Laptop docks
PC monitor docks
Multi-function USB 3.2 Gen 1 peripherals

Download USB Solutions Brochure

Why Choose a SmartHub IC?

Expands I/O capabilities beyond traditional USB 2/3 signaling
Integrates functionality to reduce BOM costs
Simplifies hardware design
Provides flexibility to switch host connectivity between ports as needed
Offers One-Time Programmable (OTP) memory for customization of hub ports
Supported by MPLAB^® Connect Configurator for customization and mass programming of devices
Available configuration straps eliminate the need to program devices at all

Key Functions of SmartHub ICs

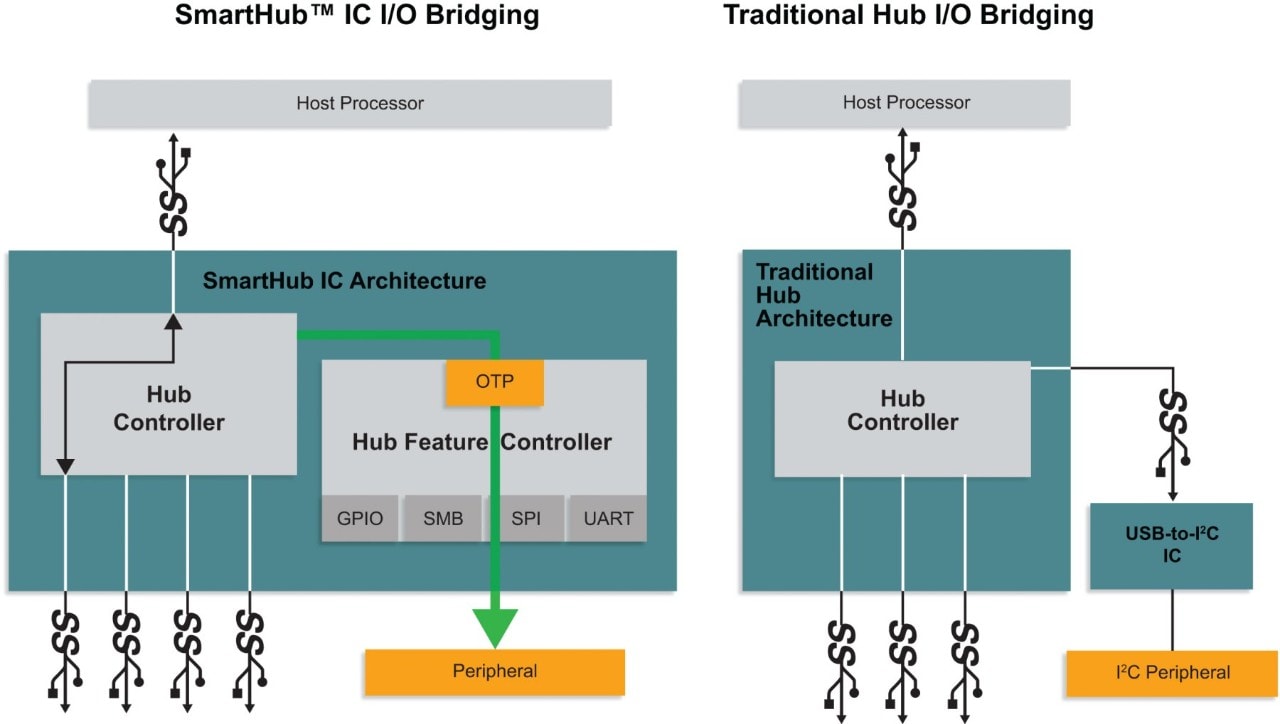

Bridging Over USB for I/O Expansion

Enables the host to communicate to a non-USB peripheral over USB through a simple set of APIs
- I²C, SMBus, SPI, UART, GPIO
Saves the added expense of using a separate bridging IC to manage the non-USB peripheral
Eliminates the need to use a downstream USB port to interface to the bridging IC

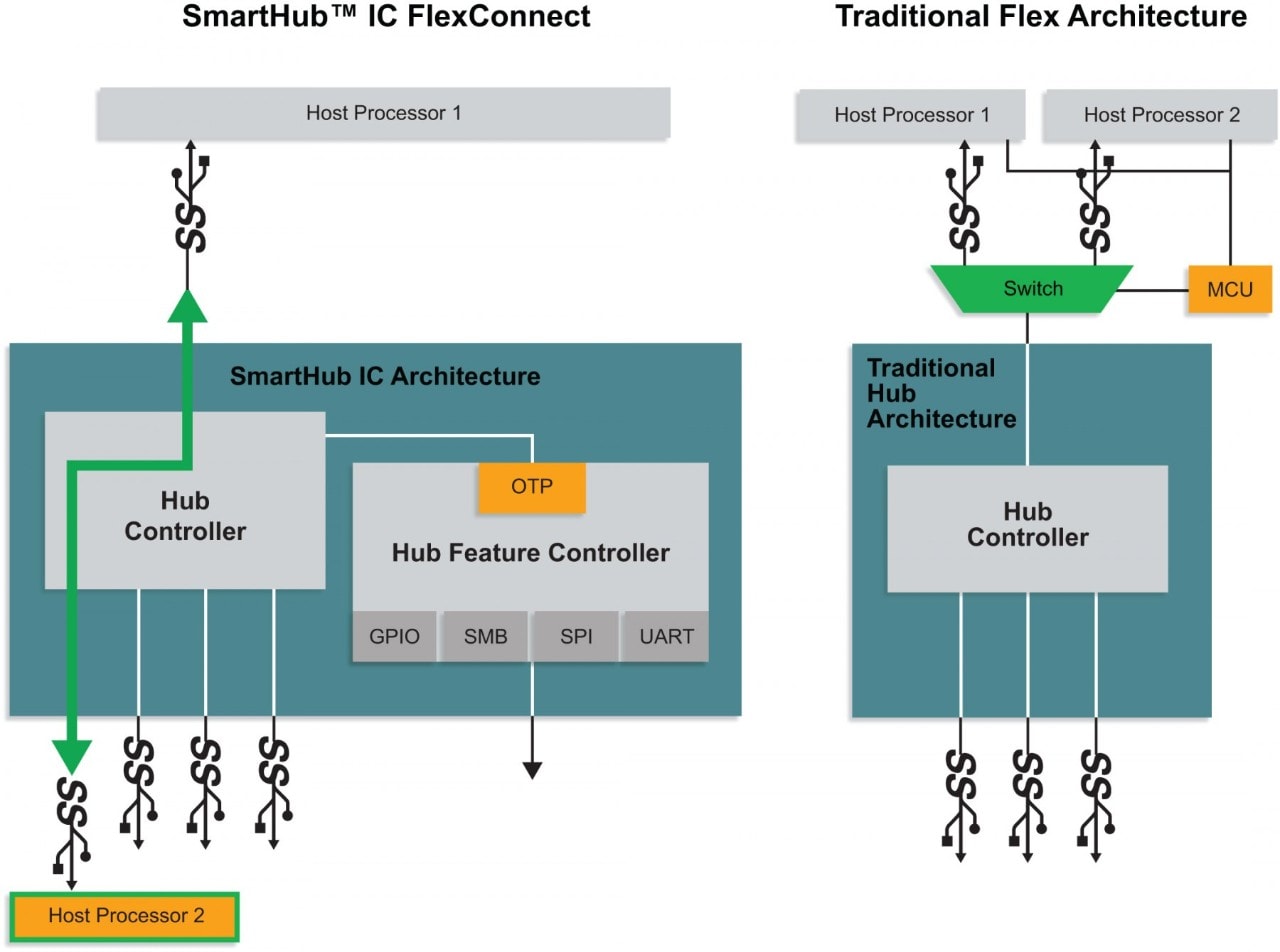

Dynamic Host Switching: FlexConnect Feature

Enables system to be configured to switch between two USB hosts
- Switch can be enabled through a GPIO pin, a USB host command or via pre-boot configuration code
- Remaining downstream devices will re-enumerate with new host once switch has been made
Saves the added expense of using a separate 2:1 switch outside the hub
Simplifies implementation through use of dedicated GPIO pins and the ability to set registers or use custom APIs

SmartHub IC Numbering:

USB 2.0 SmartHub Products by Family*

USB 2.0 SmartHub™ IC Family	HSIC Upstream	FlexConnect	I/O Bridging	Package
USB2532/33/34		Port 0, 1	I²C, SPI, UART, GPIO	36-pin QFN
USB4604/24	HSIC	Port 0, 1	I²C, SPI, UART, GPIO	48-pin QFN
USB4715		All Ports	I²C, SPI, UART, GPIO, I²S™	48-pin QFN
USB3813/USB3613	HSIC	Port 0, 1	I²C, SPI, UART, GPIO	30-ball CSP

*USB2512B-M2/USB2513B-M2/USB2514B-M2, and USB2422 are standard hubs without SmartHub IC features.

USB 3.2 SmartHub Products by Family

USB 3.2 SmartHub™ IC Family	USB-C^® Ports	FlexConnect	I/O Bridging	Package
USB5734/42/44		Port 0, 1	I²C, SPI, UART, GPIO	56-pin QFN 64-pin QFN
USB5806C/07C/16C/26C	USB-C Down	Port 0, 1	I²C, SPI, UART, GPIO	100-pin QFN
USB5906C/16C/26C	USB-C Up and Down	Port 0, 1	I²C, SPI, UART, GPIO	100-pin QFN
USB7002/06/16/52N	USB-C Up and Down	All Ports	I²C, SPI, UART, GPIO, I²S™	100-pin QFN
USB7206C/16C/52C	Gen 2 USB-C Up and Down	All Ports	I²C, SPI, UART, GPIO, I²S	100-pin QFN
USB7050P/51/52N/56	Gen 2 USB-C Up and Down Integrated Power Delivery	All Ports	I²C, SPI, UART, GPIO, I²S	100-pin QFN

Development Tools

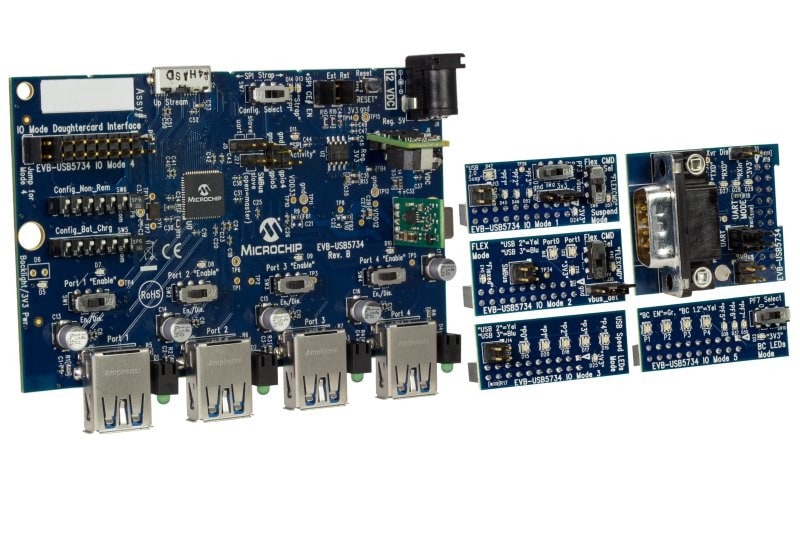

USB5734 USB 3.2 Gen 1 Controller Hub Evaluation Board

Part Number: EVB-USB5734

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5734 SmartHub IC on a four-layer RoHS-compliant PCB.

Learn More

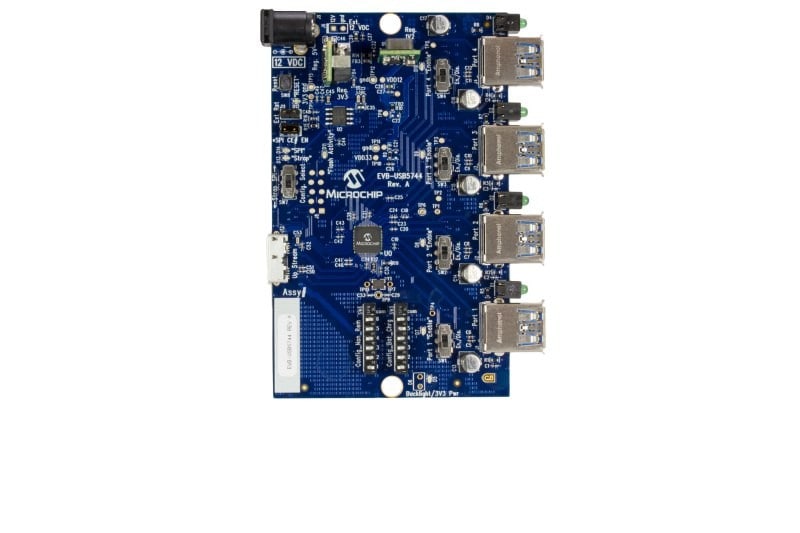

USB5744 USB 3.1 Gen 1 Controller Hub Board

USB5744 USB 3.2 Gen 1 Controller Hub Evaluation Board

Part Number: EVB-USB5744

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5744 SmartHub™ IC on a four-layer RoHS-compliant Printed Circuit Board (PCB).

Learn More

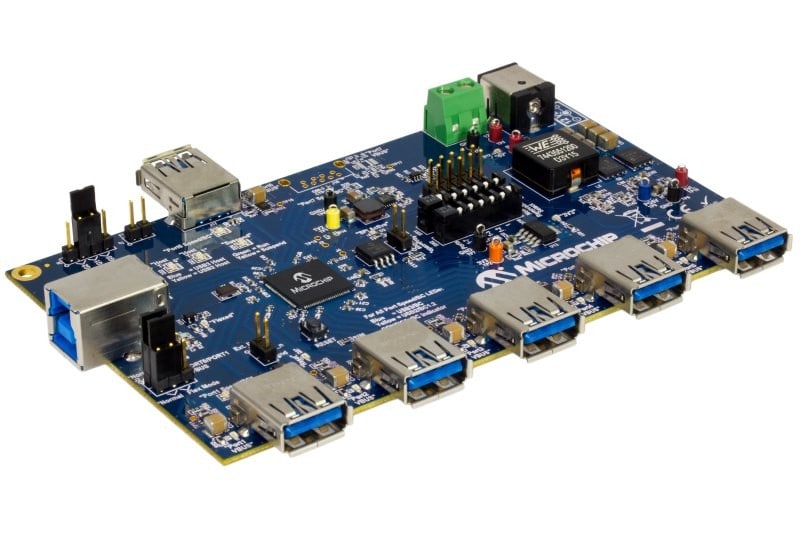

USB5806 Evaluation Board

Part Number: EVB-USB5806

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5806, a 6-port SuperSpeed/High-Speed (SS/HS) USB SmartHub IC, on a four-layer RoHS-compliant PCB.

Learn More

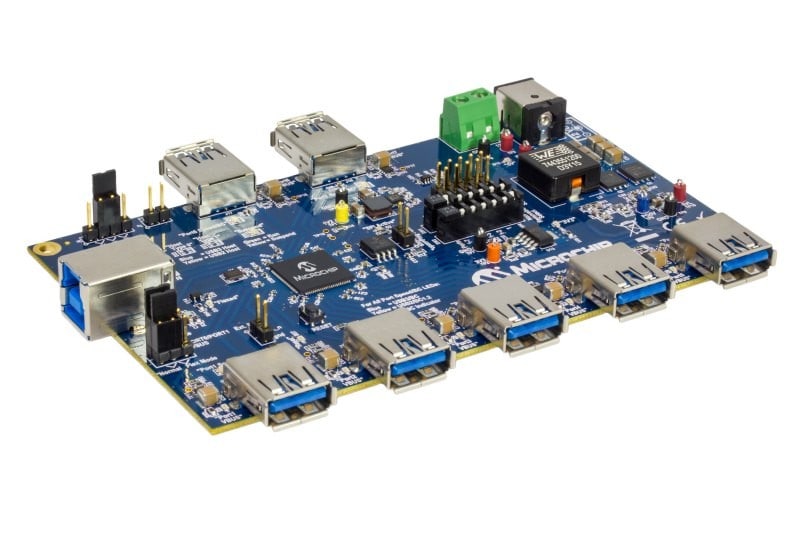

USB5807 Evaluation Board

Part Number: EVB-USB5807

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5807, a 7-port SS/HS USB SmartHub IC, on a four-layer RoHS-compliant PCB.

Learn More

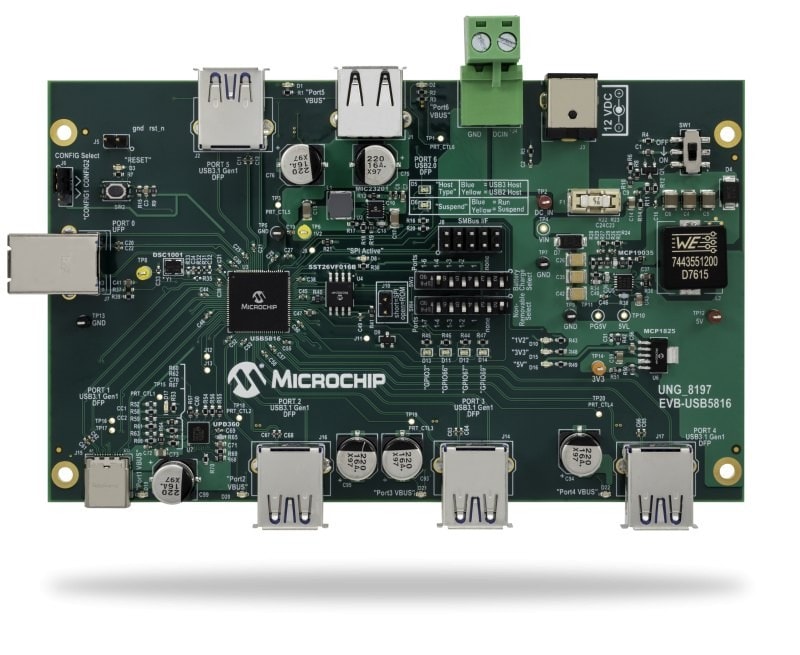

USB5816 Evaluation Kit

Part Number: EVB-USB5816

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5816, a 6-Port SuperSpeed/Hi-Speed USB SmartHub IC, on a four-layer RoHS-compliant PCB.

Learn More

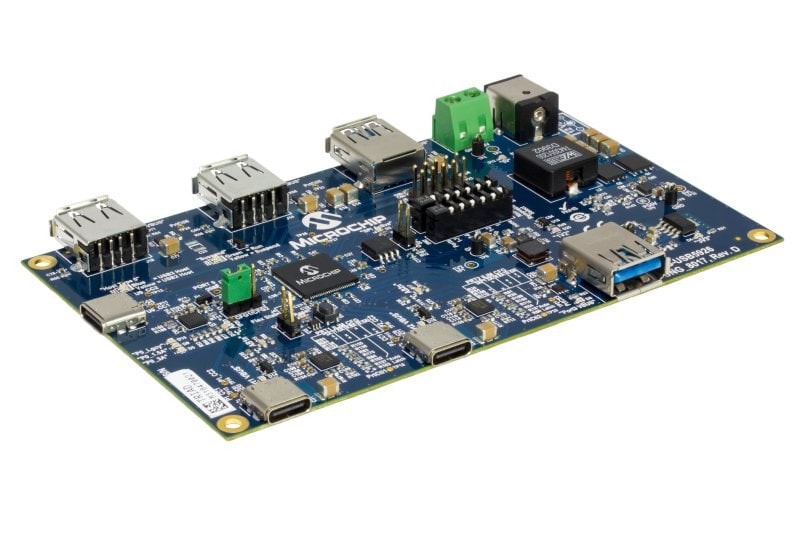

USB5926 Evaluation Board

Part Number: EVB-USB5926

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB5806, a 6-port SS/HS USB SmartHub IC, on a four-layer RoHS-compliant PCB.

Learn More

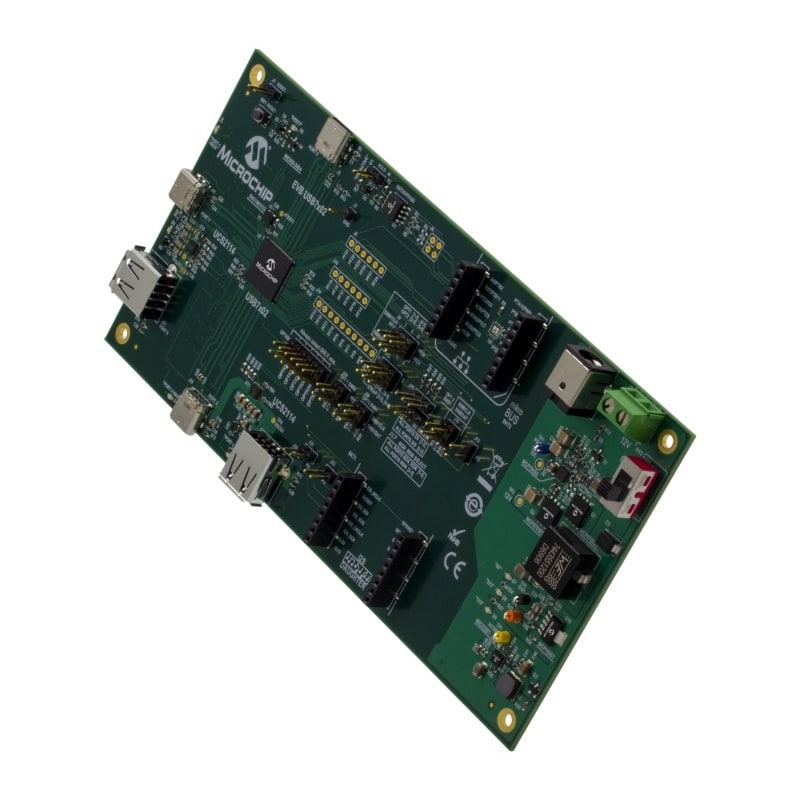

USB7002 USB Type-C^® Evaluation Board

Part Number: EVB-USB7002

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB7002, which is a 4-port HS, Native USB Type-C SmartHub™ IC, on a four-layer RoHS-compliant PCB.

Learn More

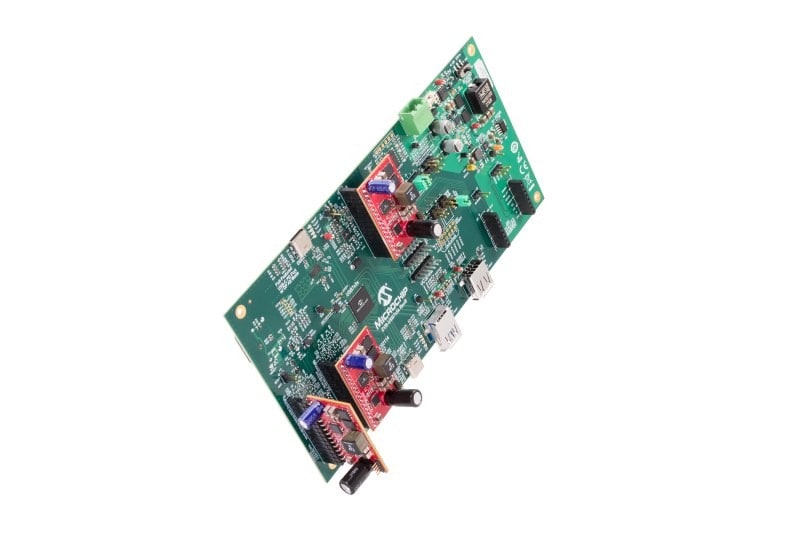

USB7050 USB Type-C PD Evaluation Board

Part Number: EVB-USB7050

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB7050, which is a 4-port HS, Native USB Type-C SmartHub IC, on a four-layer RoHS-compliant PCB with support for three ports of Power Delivery (PD).

Learn More

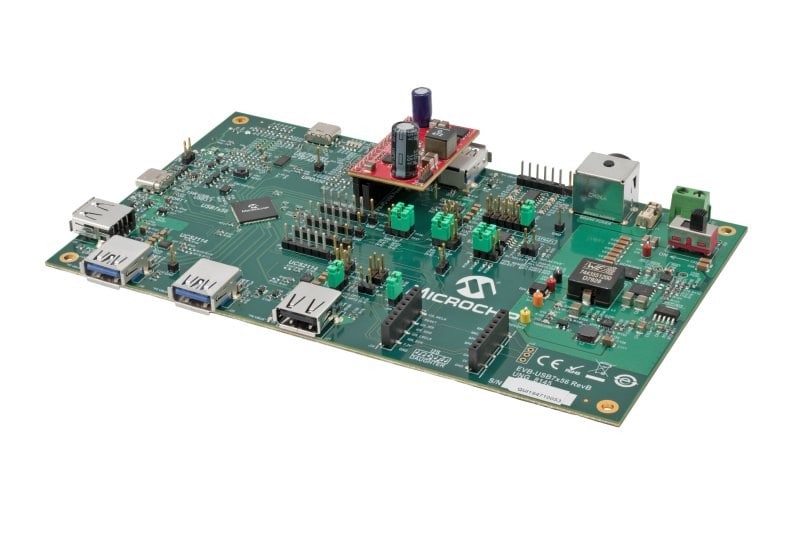

USB7056 USB Type-C PD Evaluation Board

Part Number: EVB-USB7056

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB7056, which is a 6-port HS, Native USB Type-C SmartHub IC, on a four-layer RoHS-compliant PCB with support for one port of PD.

Learn More

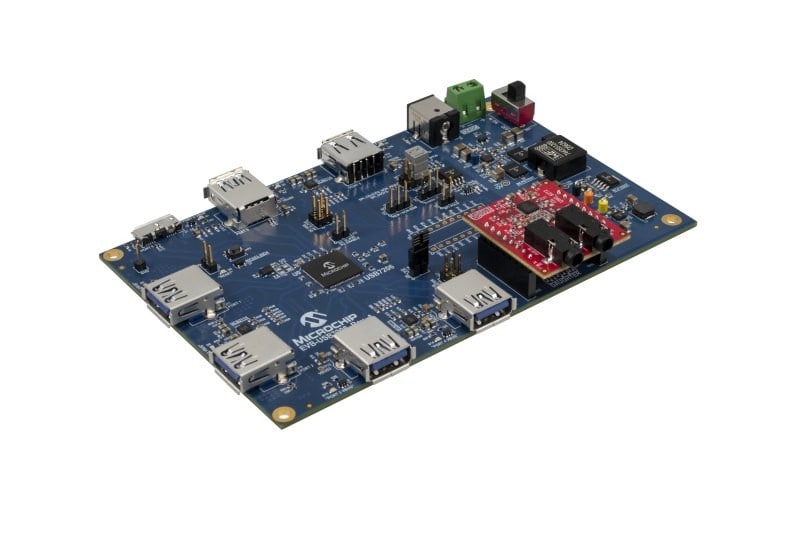

USB7206 6-Port Gen 2 SmartHub IC Evaluation Board

Part Number: EVB-USB7206

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB7206, a 6-port SuperSpeed+ (SS+) USB SmartHub IC on a four-layer RoHS-compliant PCB.

Learn More

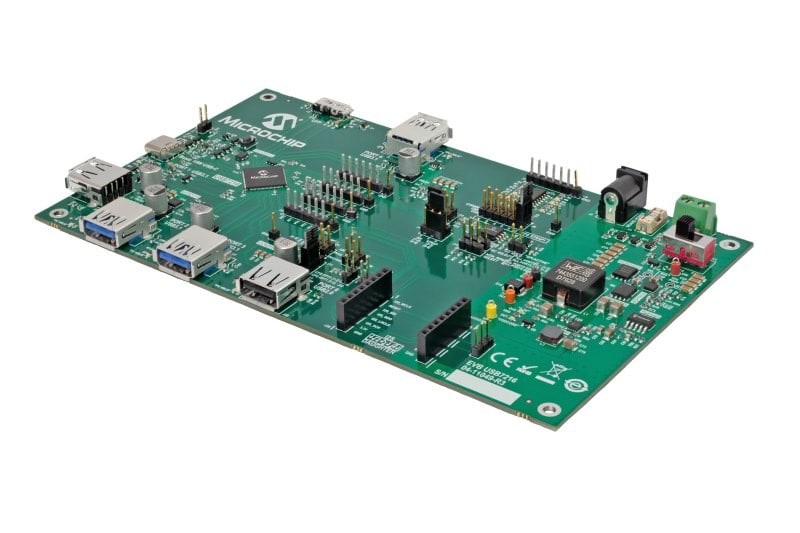

USB7216 6-Port Gen 2 SmartHub IC Evaluation Board

Part Number: EVB-USB7216

This demonstration and evaluation platform provides the necessary requirements and interface options for evaluating the USB7216, a 6-port SS+ USB SmartHub IC on a four-layer RoHS-compliant PCB.

Learn More

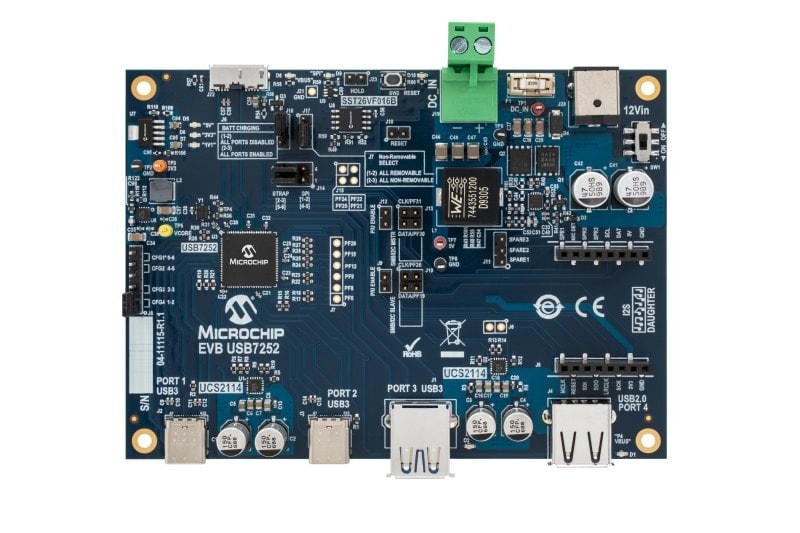

USB7252 4-Port Gen 2 SmartHub IC Evaluation Board
