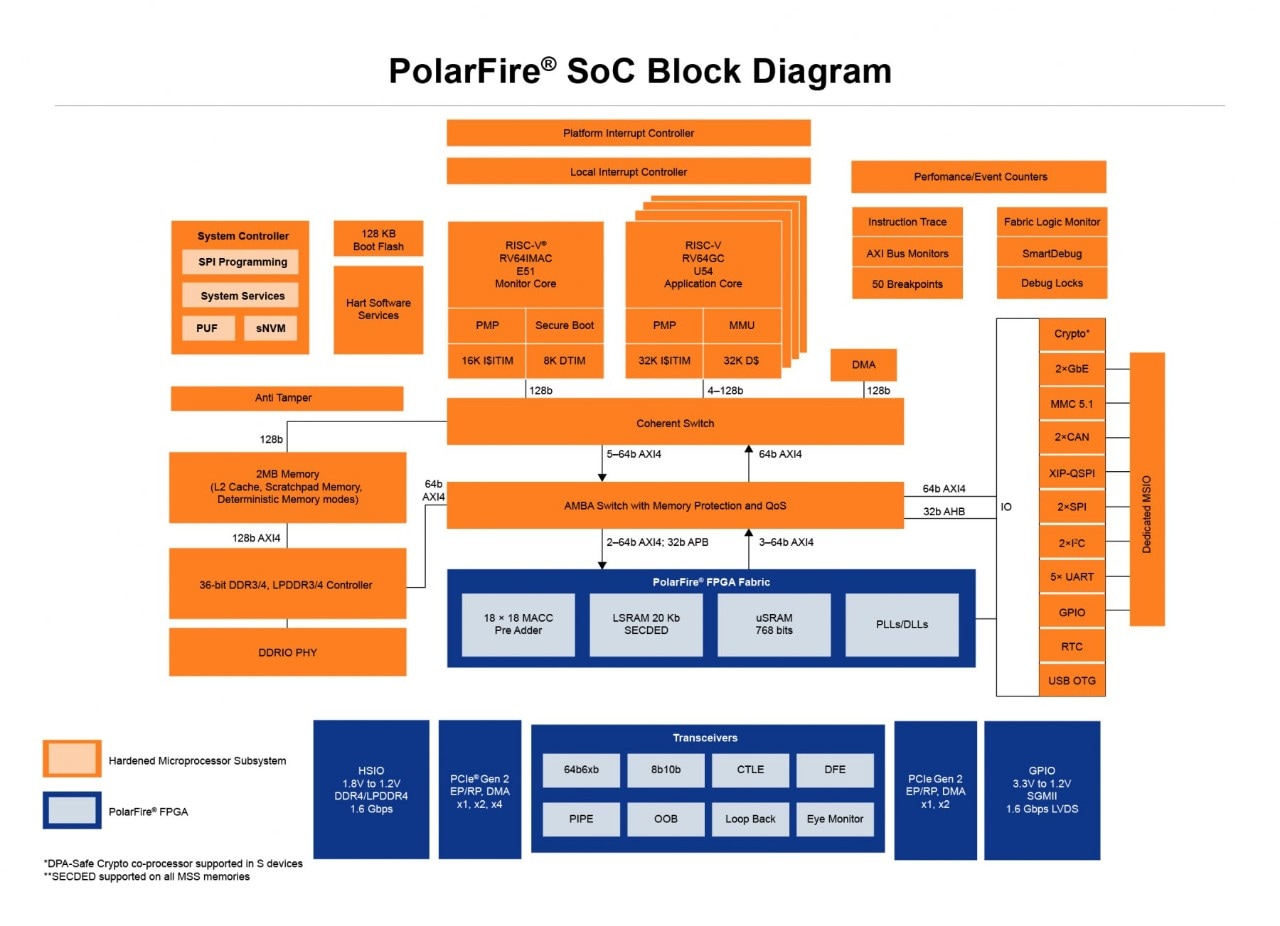

PolarFire^® SoC FPGAs

Lowest-Power, Multi-Core RISC-V SoC FPGAs

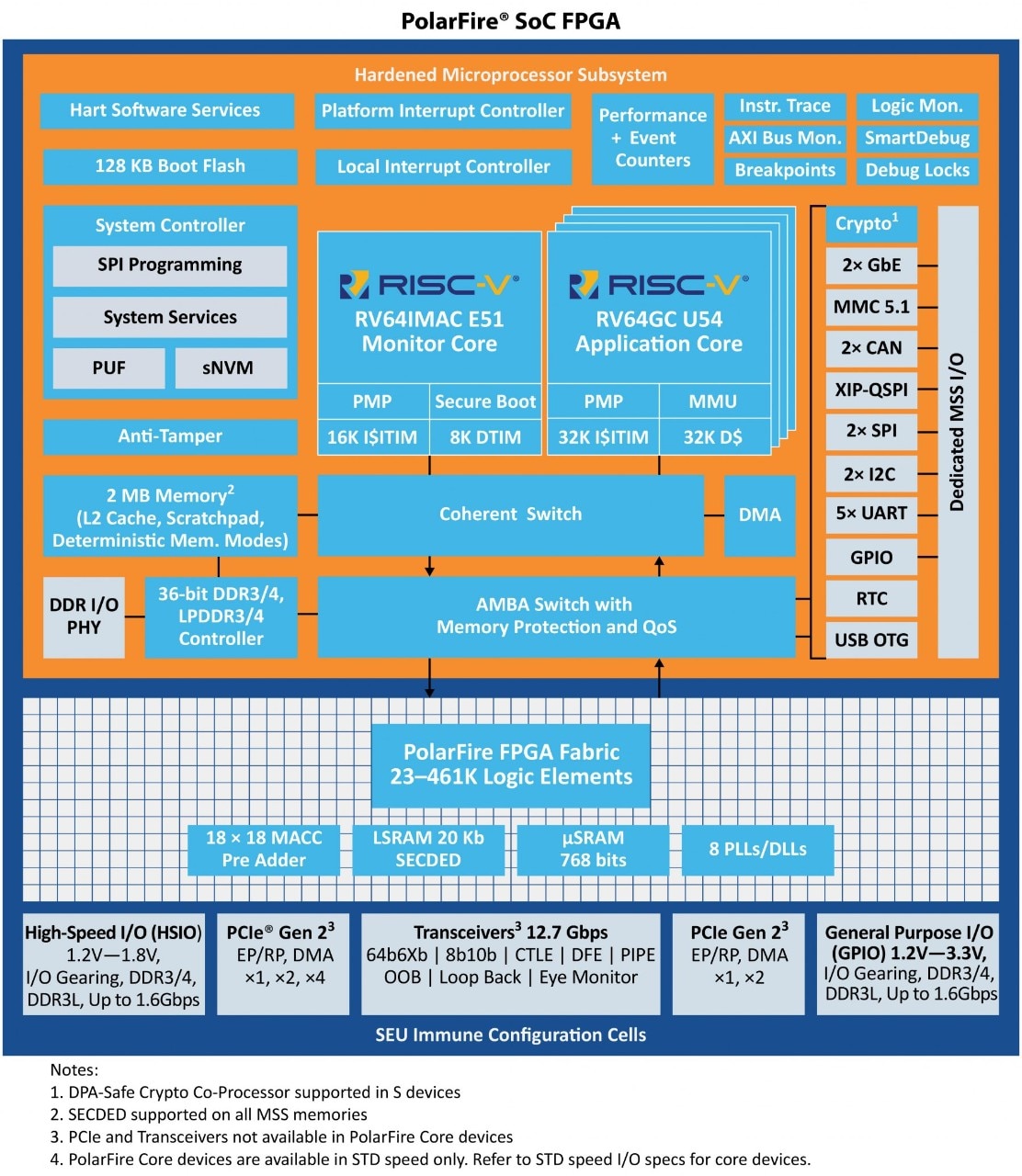

The PolarFire^® SoC FPGA family delivers a combination of low power consumption, thermal efficiency and defense-grade security for smart, connected systems. It is the first System-on-Chip (SoC) FPGA with a deterministic, coherent RISC-V CPU cluster and a deterministic L2 memory subsystem for creating Linux^® and real-time applications. PolarFire SoC FPGAs span from 25K to 460K Logic Elements (LEs) and feature 12.7 Gbps transceivers.

PolarFire SoCs are now AEC-Q100 qualified for use in automotive applications.

Lowest-Power SoC FPGAs

This graph of the EEMBC CoreMark-Pro benchmarks over power consumed illustrates the PolarFire SoC FPGA's low-power advantage.

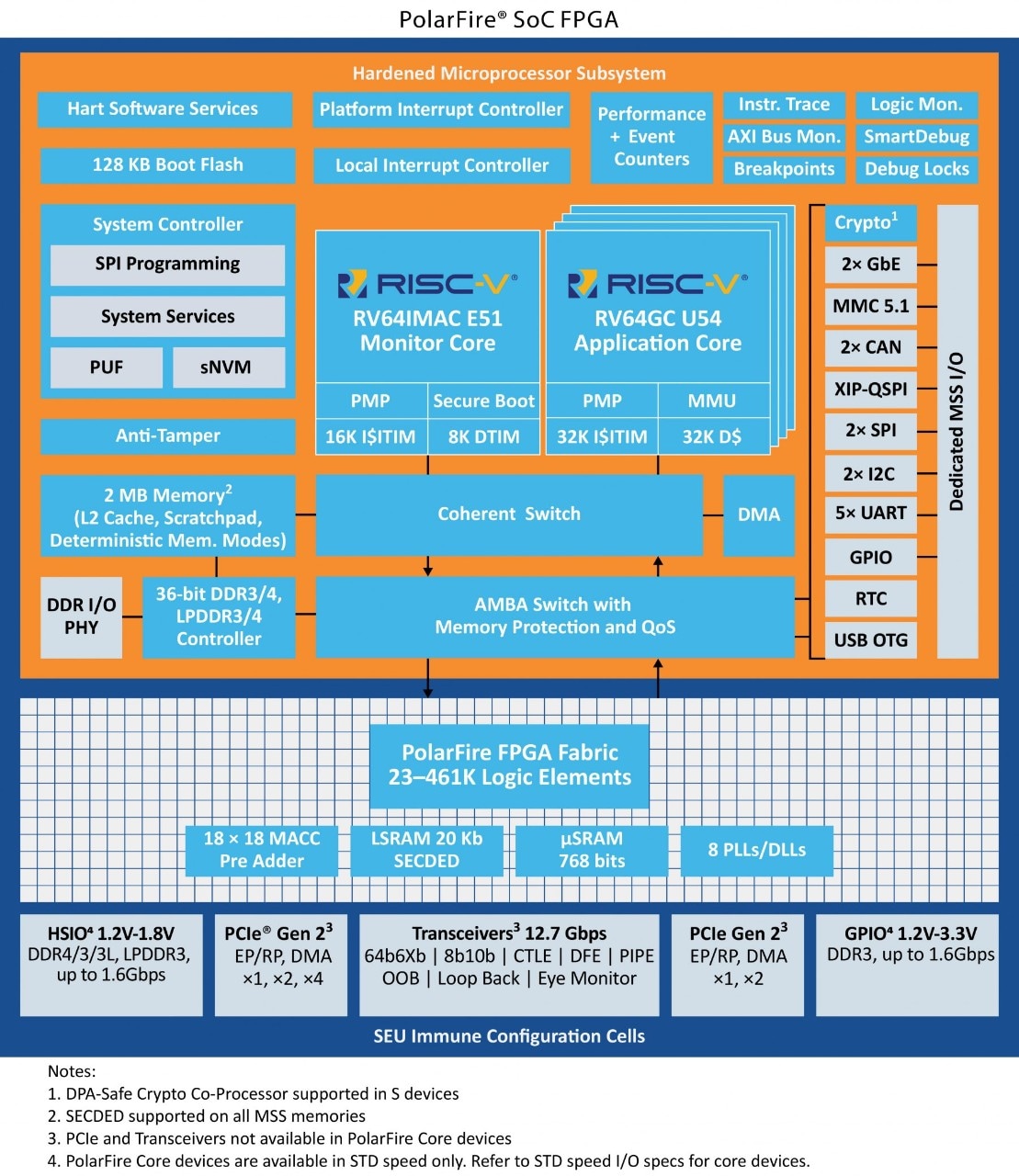

Built on the award-winning, mid-range, low-power PolarFire FPGA architecture, PolarFire SoC delivers up to 50% lower power than comparable FPGAs.

At 1.3W, PolarFire SoC FPGAs deliver 6,500 CoreMarks while competing SoC FPGAs deliver 0 CoreMarks. PolarFire SoC FPGAs consume 55% lower power at 8,000 CoreMarks.

Getting Started

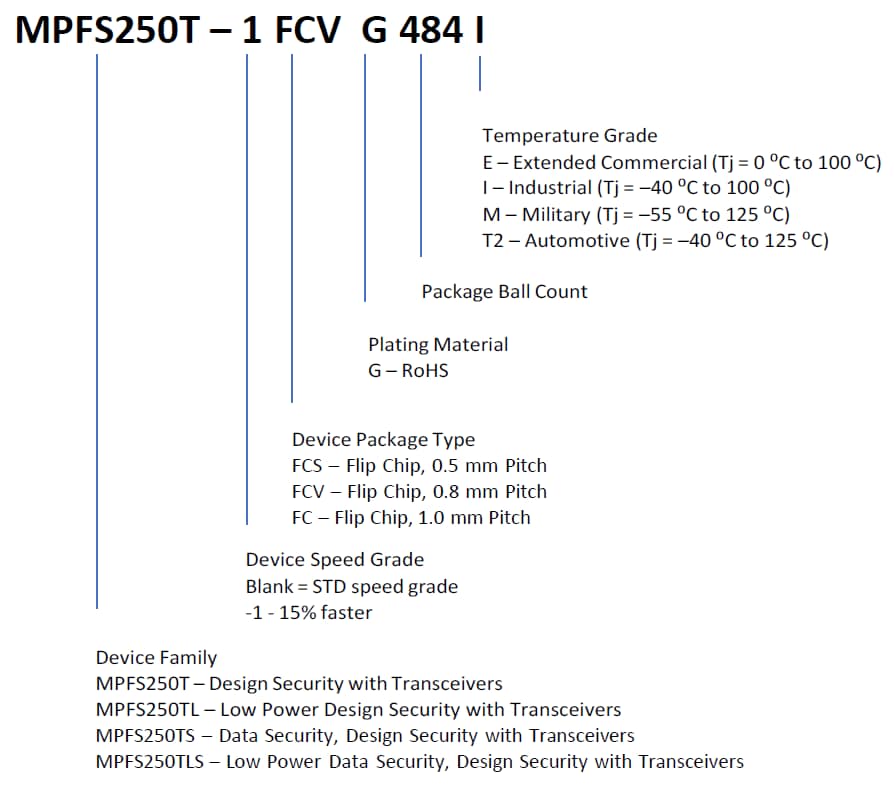

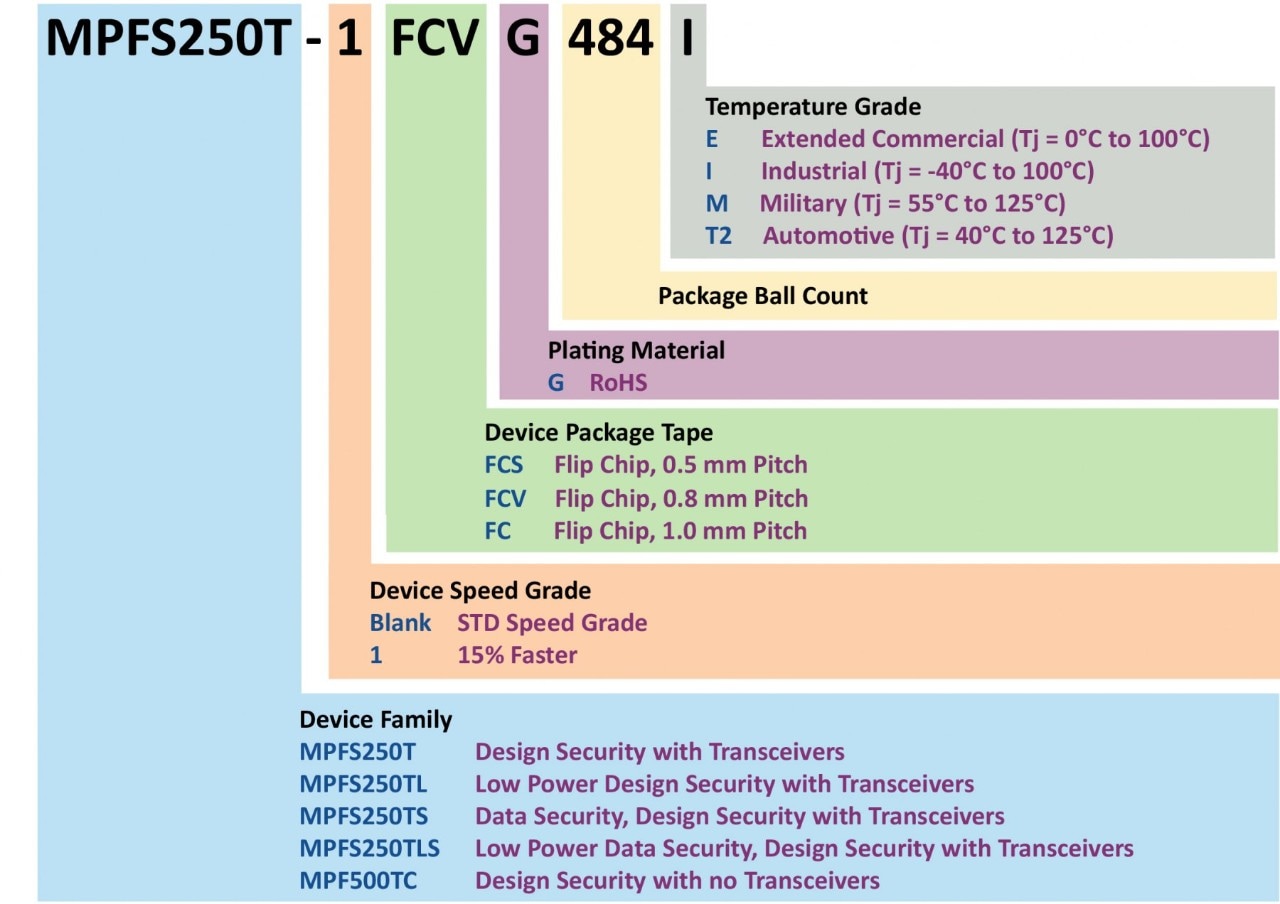

Product Family

	Features	PolarFire® SoC FPGA
		MPFS025T	MPFS095T	MPFS160T	MPFS250T	MPFS460T
FPGA Fabric	K Logic Elements (4LUT + DFF)	23	93	161	254	461
	Math Blocks (18 × 18 MACC)	68	292	498	784	1420
	LSRAM Blocks (20 kbits)	84	308	520	812	1460
	uSRAM Blocks (64 × 12)	204	876	1494	2352	4260
	Total RAM Mbits	1.8	6.7	11.3	17.6	31.6
	uPROM Kbits	194	387	415	470	553
	User DLLs/PLLs	8 each	8 each	8 each	8 each	8 each

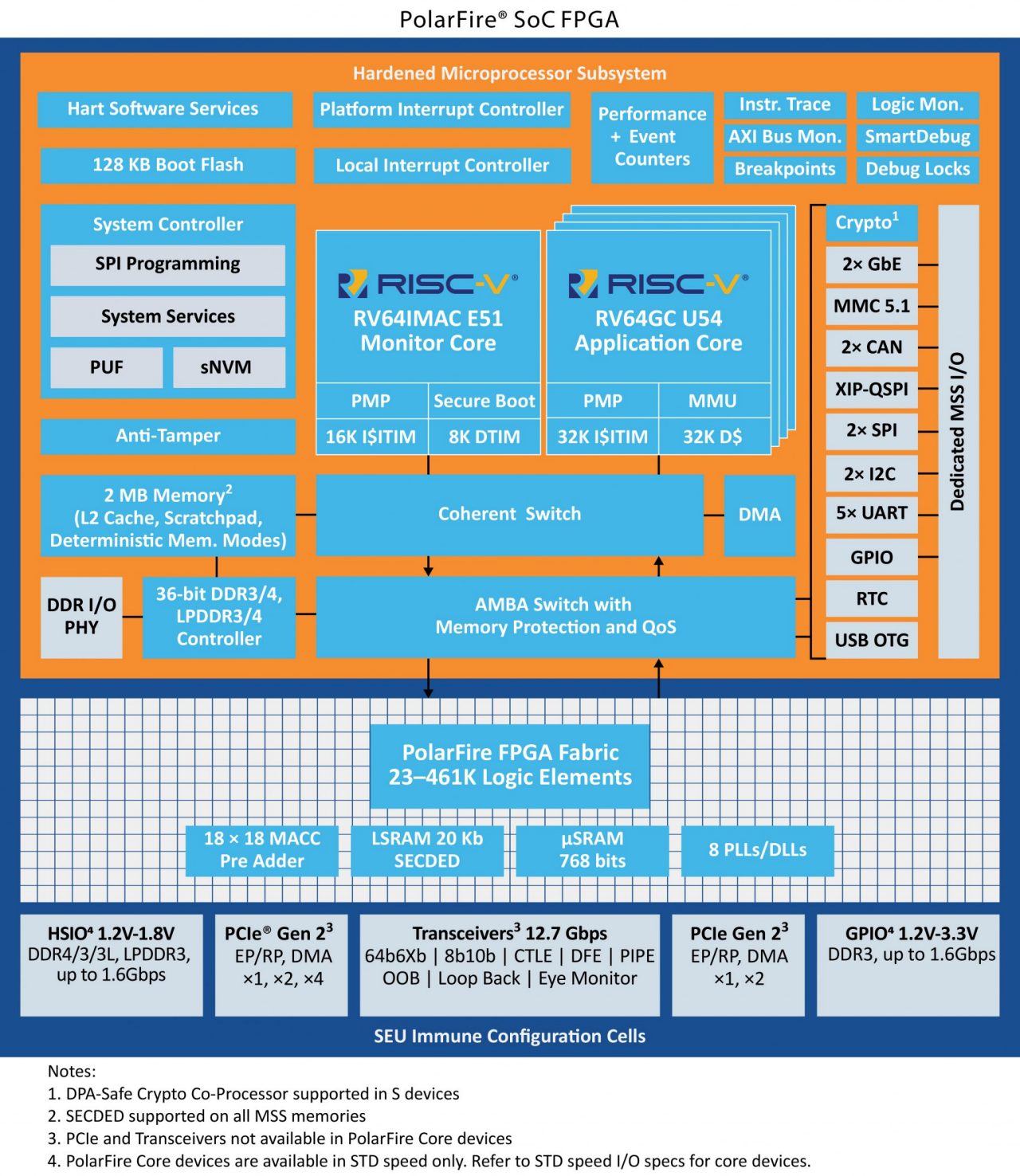

Microprocessor Subsystem (MSS)	Boot/monitor core	1 × E51 core: RISC-V RV64IMAC, 625 MHz
	Application cores	4 × U54 cores; RISC-V RV64GC, 625 MHz
	L2 Cache¹	2 MB; configurable as Cache, Loosely Integrated Memory (LIM) or Scratchpad
	Data security	DPA-resistant Athena Terafire^® crypto coprocessor available in devices with the suffix "S"
	Ethernet	Yes, 2 × Gigabit Ethernet MAC
	MMC	Yes, MMC 5.1
	CAN	Yes, 2 × CAN
	QSPI	Yes, 1 × QSPI
	SPI	Yes, 2 × SPI
	I²C	Yes, 2 × I2C
	UART	Yes, 5 x UART
	USB	Yes, 1 x USB 2.0 OTG
High-Speed I/O	250 Mbps to 12.5 Gbps SerDes Lanes	4	4	8	16	20
High-Speed I/O	PCIe^® Gen 2 End Points/Root Ports	2	2	2	2	2
Total FPGA I/O	HSIO + GPIO	108	276	312	372	468
Total MSS I/O	MSS I/O	136	136	136	136	136
MSS DDR DB	MSS DDR Data Bus	16/32²	16/32²	32	32	32
		MPFS025T	MPFS095T	MPFS160T	MPFS250T	MPFS460T
Packaging Commercial and Industrial RoHS	Type/Size/Pitch	Total User I/O: MSS-IO/HSIO/GPIO/XCVRs
	FCSG325³ (11 × 11, 11 × 14.5, 0.5 mm)	102, 32, 48, 2	102, 32, 48, 2
	FCSG536 (16 × 16, 0.5 mm)		136, 60, 84, 4	136, 60, 108, 4	136, 60, 108, 4
	FCVG484 (19 × 19, 0.8 mm)	136, 60, 48, 4	136, 60, 84, 4	136, 60, 84, 4	136, 60, 84, 4
	FCVG784 (23 × 23, 0.8 mm)		136, 144, 132, 4	136, 144, 168, 8	136, 144, 180, 8
	FCG1152 (35 × 35, 1.0 mm)				136, 144, 228, 16	136, 180, 288, 20

Notes:

L2 can be configured as cache or RAM. The minimum cache size is 128KB and max RAM size is 1920KB. This can be allocated in blocks of 128KB.
16-bit DDR data bus width for the FCSG325 package
FCSG325 package dimensions for MPFS095T - 11 x 14.5, 0.5 mm

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Application Notes	AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note	07 Oct 2020	Design Files
Application Notes	AN4723:PolarFire SoC FPGA Video Kit Picture-In-Picture Application Note	18 Apr 2025	Design Files
Application Notes	AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note	13 Feb 2025	Design Files
Application Notes	AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note	08 Oct 2024	Design Files
Application Notes	AN4977: OPC UA Industrial Edge Demo	03 Apr 2024	Design Files
Application Notes	AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note	21 Oct 2024	Design Files
Application Notes	AN5282: PolarFire SoC Design Flow Application Note	24 Jul 2024	Design Files
Cross Reference	DMA Performance Benchmark	07 Mar 2024
Brochures	PolarFire® FPGAs and SoC FPGAs	05 Jun 2024
Brochures	Mi-V RISC-V Ecosystem Brochure	14 Feb 2024
Brochures	FPGA and SoC Brochure	13 Jun 2023
Product Brief	PolarFire® SoC Product Overview	15 May 2025
User Guide	PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
User Guide	PolarFire Family Memory Controller User Guide	03 Oct 2024
Tools	Memory Log Analyzer GUI Installer	16 Feb 2025
Board Design Files	PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator	20 Feb 2025
User Guide	PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide	05 Feb 2025
User Guide	PolarFire® SoC Software Development and Tool Flow User Guide	08 Apr 2025
User Guide	UG0851: FlashPro Express User Guide	15 Apr 2020
User Guide	UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5	10 Dec 2020
User Guide	PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
User Guide	PolarFire Family Transceiver User Guide	21 Apr 2025
User Guide	PolarFire SoC FPGA Packaging and Pin Description	12 May 2025
User Guide	PolarFire FPGA and PolarFire SoC FPGA Programming User Guide	22 Oct 2024
User Guide	UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families	03 Sep 2020
User Guide	PolarFire Family DRI SgCore User Guide	04 Oct 2024
User Guide	PolarFire Family Clocking Resources	22 Nov 2024
User Guide	PolarFire Family Fabric User Guide	03 Oct 2023
User Guide	PolarFire Family System Services User Guide	12 Jul 2023
User Guide	PolarFire Family PCI Express User Guide	06 May 2025
User Guide	PolarFire Family Power-Up and Resets User Guide	24 Apr 2024
User Guide	PolarFire Family FPGA Security User Guide	26 Mar 2025
User Guide	PolarFire SoC MSS Configurator User Guide	09 Aug 2021
Supporting Collateral	PolarFire SoC FPGA Engineering Samples (ES) Devices Errata	16 Jul 2020
Errata	PolarFire® SoC FPGA Production Devices Errata	26 Jun 2024
Errata	PolarFire SoC FPGA Production Devices Errata	30 Aug 2024
Thermal Models	PolarFire SoC Delphi Compact Thermal Model	30 Jan 2025
Reference Manual	PolarFire SoC MSS Technical Reference Manual	09 Jul 2024
Information Sheet	PolarFire SoC FPGA Register Map	31 May 2024
Information Sheet	PolarFire SoC Material Declaration Data Sheet	15 Apr 2025
Data Sheets	PolarFire® SoC Datasheet	13 May 2025
Data Sheets	PD3068: Package Mechanical Drawings Datasheet	17 Apr 2025
Packaging Specifications	MPFS250T/MPFS250TS-FCVG484 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS460T/MPFS460TS-FCG1152 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS160T/MPFS160TS-FCVG484 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS250T/MPFS250TS-FCVG784 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS095T/MPFS095TS-FCVG484 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS025T/MPFS025TS-FCVG484 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS250T/MPFS250TS-FCSG536 Package Pin Assignment Table	09 May 2025
Packaging Specifications	MPFS095T/MPFS095TS-FCSG536 Package Pin Assignment Table	15 May 2025
Programming Specifications	MPFS095T/MPFS095TS-FCVG784 Package Pin Assignment Table	15 May 2025
Packaging Specifications	MPFS160T/MPFS160TS-FCSG536 Package Pin Assignment Table	15 May 2025
Packaging Specifications	MPFS160T/MPFS160TS-FCVG784 Package Pin Assignment Table	15 May 2025
Packaging Specifications	MPFS095T/MPFS095TS-FCSG325 Package Pin Assignment Table	15 May 2025
Packaging Specifications	MPFS025T/MPFS025TS-FCSG325 Package Pin Assignment Table	15 May 2025
Packaging Specs	RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public	18 Sep 2024
Packaging Specifications	MPFS250T/MPFS250TS-FCG1152 Package Pin Assignment Table	09 May 2025
Brochures	PolarFIre SoC Dedicated IO IBIS Model (AUTO)	30 Mar 2022
IBIS	PolarFire SoC Dedicated IO IBIS Model (Industrial)	30 Mar 2022
IBIS	PolarFire SoC MSSIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC GPIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC Dedicated IO IBIS Model (Military)	30 Mar 2022
IBIS	PolarFire SoC GPIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC GPIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC MSSIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC MSSIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC & PolarFire FPGA IBIS AMI Model	26 Feb 2025
White Paper	PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper	30 Mar 2022
White Paper	PolarFire SoC Linux Boot Time White Paper	30 Mar 2022
White Paper	PolarFire SoC FPGA: Application Waypointing	30 Mar 2022
White Paper	PolarFire® SoC FPGA: Opus Codec Benchmarking	30 Mar 2022
White Paper	PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements	30 Mar 2022
White Paper	Measurement of Worst Case Execution Time on PolarFire® SoC FPGA	13 Feb 2025
White Paper	FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests	24 Jan 2025
BSDL Files	MPFS250T-FCVG784E BSDL File	27 Jan 2025
BSDL Files	MPFS250TLS-FCG1152I BSDL File	03 Jun 2022
BSDL Files	MPFS025TS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCVG784E BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS025TLS-FCSG325I BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG784I BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCSG536I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCVG484EES BSDL File	03 Jun 2022
BSDL Files	MPFS025TL-FCSG325E BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCG1152E BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCSG536E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG484EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCSG536I BSDL File	03 Jun 2022
BSDL Files	MPFS025TLS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS025TS-FCSG325I BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCSG536E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS025T-FCVG484E BSDL FIle	03 Jun 2022
BSDL Files	MPFS250TS-FCG1152EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCG1152E BSDL File	03 Jun 2022
BSDL Files	MPFS025T-FCSG325E BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCG1152EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCVG784I BSDL File	03 Jun 2022
BSDL Files	MPFS025TL-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCG1152I BSDL file	03 Jun 2022
BSDL Files	MPFS160TL-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCVG784I BSDL File	23 Jan 2023
BSDL Files	MPFS160T-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCSG536I BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCSG325I BSDL File	23 Jan 2023
BSDL Files	MPFS160TLS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS160TS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCVG784E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCSG536E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCSG325E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCVG784E BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCVG784I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCSG536I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCSG325I BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCSG536E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCSG325E BSDL File	23 Jan 2023
BSDL Files	MPFS160TLS-FCVG784I BSDL File	16 Aug 2023
BSDL Files	MPFS160TLS-FCSG536I BSDL File	16 Aug 2023
BSDL Files	MPFS160TS-FCVG784I BSDL File	16 Aug 2023
BSDL Files	MPFS160TS-FCSG536I BSDL File	16 Aug 2023
BSDL Files	MPFS160TL-FCVG784E BSDL File	16 Aug 2023
BSDL Files	MPFS160TL-FCSG536E BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCVG784T2 BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCVG784E BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCSG536E BSDL File	16 Aug 2023
BSDL Files	MPFS460TLS-FCG1152I BSDL File	09 Feb 2024
BSDL Files	MPFS095T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS460TS-FCG1152I BSDL File	09 Feb 2024
BSDL Files	MPFS460TL-FCG1152E BSDL File	09 Feb 2024
BSDL Files	MPFS250T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS250T-FCG1152T2 BSDL File	09 Feb 2024
BSDL Files	MPFS160T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS460T-FCG1152E BSDL File	09 Feb 2024
Other Board Design Files	PolarFire SoC Icicle Kit Mechanical Drawing	30 Mar 2022
Reference Manual	PolarFire SoC Icicle Kit Schematics	19 Aug 2020
Reference Manual	MPFS-ICICLE-KIT-ES_Board_Files	19 Aug 2020
User Guide	MPFS-ICICLE-KIT-ES_User Guide	17 Dec 2024
	PolarFire SoC MPFS250 FCV484 TX S-parameter Model	07 Feb 2023
	PolarFire SoC MPFS250 FCV484 RX S-parameter Model	07 Feb 2023


Document Category Title Date	Application Notes AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note 07 Oct 2020 Design Files
Document Category Title Date	Application Notes AN4723:PolarFire SoC FPGA Video Kit Picture-In-Picture Application Note 18 Apr 2025 Design Files
Document Category Title Date	Application Notes AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note 13 Feb 2025 Design Files
Document Category Title Date	Application Notes AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note 08 Oct 2024 Design Files
Document Category Title Date	Application Notes AN4977: OPC UA Industrial Edge Demo 03 Apr 2024 Design Files
Document Category Title Date	Application Notes AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note 21 Oct 2024 Design Files
Document Category Title Date	Application Notes AN5282: PolarFire SoC Design Flow Application Note 24 Jul 2024 Design Files
Document Category Title Date	Cross Reference DMA Performance Benchmark 07 Mar 2024
Document Category Title Date	Brochures PolarFire® FPGAs and SoC FPGAs 05 Jun 2024
Document Category Title Date	Brochures Mi-V RISC-V Ecosystem Brochure 14 Feb 2024
Document Category Title Date	Brochures FPGA and SoC Brochure 13 Jun 2023
Document Category Title Date	Product Brief PolarFire® SoC Product Overview 15 May 2025
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide 09 Dec 2019
Document Category Title Date	User Guide PolarFire Family Memory Controller User Guide 03 Oct 2024
Document Category Title Date	Tools Memory Log Analyzer GUI Installer 16 Feb 2025
Document Category Title Date	Board Design Files PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator 20 Feb 2025
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide 05 Feb 2025
Document Category Title Date	User Guide PolarFire® SoC Software Development and Tool Flow User Guide 08 Apr 2025
Document Category Title Date	User Guide UG0851: FlashPro Express User Guide 15 Apr 2020
Document Category Title Date	User Guide UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5 10 Dec 2020
Document Category Title Date	User Guide PolarFire SoC FPGA Board Design Guidelines User Guide 22 Aug 2024
Document Category Title Date	User Guide PolarFire Family Transceiver User Guide 21 Apr 2025
Document Category Title Date	User Guide PolarFire SoC FPGA Packaging and Pin Description 12 May 2025
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA Programming User Guide 22 Oct 2024
Document Category Title Date	User Guide UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families 03 Sep 2020
Document Category Title Date	User Guide PolarFire Family DRI SgCore User Guide 04 Oct 2024
Document Category Title Date	User Guide PolarFire Family Clocking Resources 22 Nov 2024
Document Category Title Date	User Guide PolarFire Family Fabric User Guide 03 Oct 2023
Document Category Title Date	User Guide PolarFire Family System Services User Guide 12 Jul 2023
Document Category Title Date	User Guide PolarFire Family PCI Express User Guide 06 May 2025
Document Category Title Date	User Guide PolarFire Family Power-Up and Resets User Guide 24 Apr 2024
Document Category Title Date	User Guide PolarFire Family FPGA Security User Guide 26 Mar 2025
Document Category Title Date	User Guide PolarFire SoC MSS Configurator User Guide 09 Aug 2021
Document Category Title Date	Supporting Collateral PolarFire SoC FPGA Engineering Samples (ES) Devices Errata 16 Jul 2020
Document Category Title Date	Errata PolarFire® SoC FPGA Production Devices Errata 26 Jun 2024
Document Category Title Date	Errata PolarFire SoC FPGA Production Devices Errata 30 Aug 2024
Document Category Title Date	Thermal Models PolarFire SoC Delphi Compact Thermal Model 30 Jan 2025
Document Category Title Date	Reference Manual PolarFire SoC MSS Technical Reference Manual 09 Jul 2024
Document Category Title Date	Information Sheet PolarFire SoC FPGA Register Map 31 May 2024
Document Category Title Date	Information Sheet PolarFire SoC Material Declaration Data Sheet 15 Apr 2025
Document Category Title Date	Data Sheets PolarFire® SoC Datasheet 13 May 2025
Document Category Title Date	Data Sheets PD3068: Package Mechanical Drawings Datasheet 17 Apr 2025
Document Category Title Date	Packaging Specifications MPFS250T/MPFS250TS-FCVG484 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS460T/MPFS460TS-FCG1152 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS160T/MPFS160TS-FCVG484 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS250T/MPFS250TS-FCVG784 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS095T/MPFS095TS-FCVG484 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS025T/MPFS025TS-FCVG484 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS250T/MPFS250TS-FCSG536 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Packaging Specifications MPFS095T/MPFS095TS-FCSG536 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Programming Specifications MPFS095T/MPFS095TS-FCVG784 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Packaging Specifications MPFS160T/MPFS160TS-FCSG536 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Packaging Specifications MPFS160T/MPFS160TS-FCVG784 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Packaging Specifications MPFS095T/MPFS095TS-FCSG325 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Packaging Specifications MPFS025T/MPFS025TS-FCSG325 Package Pin Assignment Table 15 May 2025
Document Category Title Date	Packaging Specs RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public 18 Sep 2024
Document Category Title Date	Packaging Specifications MPFS250T/MPFS250TS-FCG1152 Package Pin Assignment Table 09 May 2025
Document Category Title Date	Brochures PolarFIre SoC Dedicated IO IBIS Model (AUTO) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC Dedicated IO IBIS Model (Industrial) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC Dedicated IO IBIS Model (Military) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC & PolarFire FPGA IBIS AMI Model 26 Feb 2025
Document Category Title Date	White Paper PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC Linux Boot Time White Paper 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC FPGA: Application Waypointing 30 Mar 2022
Document Category Title Date	White Paper PolarFire® SoC FPGA: Opus Codec Benchmarking 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements 30 Mar 2022
Document Category Title Date	White Paper Measurement of Worst Case Execution Time on PolarFire® SoC FPGA 13 Feb 2025
Document Category Title Date	White Paper FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests 24 Jan 2025
Document Category Title Date	BSDL Files MPFS250T-FCVG784E BSDL File 27 Jan 2025
Document Category Title Date	BSDL Files MPFS250TLS-FCG1152I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCVG784E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TLS-FCSG325I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG784I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCSG536I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCVG484EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TL-FCSG325E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCG1152E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCSG536E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG484EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCSG536I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TLS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TS-FCSG325I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCSG536E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025T-FCVG484E BSDL FIle 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCG1152EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCG1152E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025T-FCSG325E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCG1152EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCVG784I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TL-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCG1152I BSDL file 03 Jun 2022
Document Category Title Date	BSDL Files MPFS160TL-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCVG784I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCSG536I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCSG325I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCVG784E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCSG536E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCSG325E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCVG784E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCVG784I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCSG536I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCSG325I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCSG536E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCSG325E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCVG784I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCSG536I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TS-FCVG784I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TS-FCSG536I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TL-FCVG784E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TL-FCSG536E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG784T2 BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG784E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCSG536E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS460TLS-FCG1152I BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS095T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460TS-FCG1152I BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460TL-FCG1152E BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS250T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS250T-FCG1152T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS160T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460T-FCG1152E BSDL File 09 Feb 2024
Document Category Title Date	Other Board Design Files PolarFire SoC Icicle Kit Mechanical Drawing 30 Mar 2022
Document Category Title Date	Reference Manual PolarFire SoC Icicle Kit Schematics 19 Aug 2020
Document Category Title Date	Reference Manual MPFS-ICICLE-KIT-ES_Board_Files 19 Aug 2020
Document Category Title Date	User Guide MPFS-ICICLE-KIT-ES_User Guide 17 Dec 2024
Document Category Title Date	PolarFire SoC MPFS250 FCV484 TX S-parameter Model 07 Feb 2023
Document Category Title Date	PolarFire SoC MPFS250 FCV484 RX S-parameter Model 07 Feb 2023

Title	Date
AN4723:PolarFire SoC FPGA Video Kit Picture-In-Picture Application Note	18 Apr 2025	Link
AN4977: OPC UA Industrial Edge Demo	03 Apr 2024	Link
AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note	21 Oct 2024	Link
AN5282: PolarFire SoC Design Flow Application Note	24 Jul 2024	Link
AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note	08 Oct 2024	Link
AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note	07 Oct 2020	Link
DMA Performance Benchmark	07 Mar 2024
AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note	13 Feb 2025	Link

Product Data Sheets

Errata

Packaging/PPAT

IBIS Models

S Parameter Model

BSDL Models

Thermal Models

Product Data Sheets

Title	Date
PolarFire SoC Delphi Compact Thermal Model	30 Jan 2025
PolarFire SoC Material Declaration Data Sheet	15 Apr 2025
PolarFire® SoC Datasheet	13 May 2025
PD3068: Package Mechanical Drawings Datasheet	17 Apr 2025
PolarFire SoC MSS Technical Reference Manual	09 Jul 2024
PolarFire SoC FPGA Register Map	31 May 2024

Errata

Title	Date
PolarFire SoC FPGA Engineering Samples (ES) Devices Errata	16 Jul 2020
PolarFire® SoC FPGA Production Devices Errata	26 Jun 2024
PolarFire SoC FPGA Production Devices Errata	30 Aug 2024

Packaging/PPAT

Document Title	Date
MPFS250T/MPFS250TS-FCVG484 Package Pin Assignment Table	09 May 2025
MPFS460T/MPFS460TS-FCG1152 Package Pin Assignment Table	09 May 2025
MPFS160T/MPFS160TS-FCVG484 Package Pin Assignment Table	09 May 2025
MPFS250T/MPFS250TS-FCVG784 Package Pin Assignment Table	09 May 2025
MPFS095T/MPFS095TS-FCVG484 Package Pin Assignment Table	09 May 2025
MPFS025T/MPFS025TS-FCVG484 Package Pin Assignment Table	09 May 2025
MPFS250T/MPFS250TS-FCSG536 Package Pin Assignment Table	09 May 2025
MPFS095T/MPFS095TS-FCSG536 Package Pin Assignment Table	15 May 2025
MPFS095T/MPFS095TS-FCVG784 Package Pin Assignment Table	15 May 2025
MPFS160T/MPFS160TS-FCSG536 Package Pin Assignment Table	15 May 2025
MPFS160T/MPFS160TS-FCVG784 Package Pin Assignment Table	15 May 2025
MPFS095T/MPFS095TS-FCSG325 Package Pin Assignment Table	15 May 2025
MPFS025T/MPFS025TS-FCSG325 Package Pin Assignment Table	15 May 2025
RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public	18 Sep 2024
MPFS250T/MPFS250TS-FCG1152 Package Pin Assignment Table	09 May 2025

Click here to view package options

IBIS Models

Title	Date
PolarFIre SoC Dedicated IO IBIS Model (AUTO)	30 Mar 2022
PolarFire SoC Dedicated IO IBIS Model (Industrial)	30 Mar 2022
PolarFire SoC MSSIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC GPIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC Dedicated IO IBIS Model (Military)	30 Mar 2022
PolarFire SoC GPIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC GPIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC MSSIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC MSSIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC & PolarFire FPGA IBIS AMI Model	26 Feb 2025

S-Parameter Models

Title	Date
PolarFire SoC MPFS250 FCV484 TX S-parameter Model	07 Feb 2023
PolarFire SoC MPFS250 FCV484 RX S-parameter Model	07 Feb 2023

BSDL Models

Title	Date
MPFS250T-FCVG784E BSDL File	27 Jan 2025
MPFS250TLS-FCG1152I BSDL File	03 Jun 2022
MPFS025TS-FCVG484I BSDL File	03 Jun 2022
MPFS250TL-FCVG784E BSDL File	03 Jun 2022
MPFS250TL-FCVG484E BSDL File	03 Jun 2022
MPFS025TLS-FCSG325I BSDL File	03 Jun 2022
MPFS250TS-FCVG784I BSDL File	03 Jun 2022
MPFS250TLS-FCSG536I BSDL File	03 Jun 2022
MPFS250T-FCVG484EES BSDL File	03 Jun 2022
MPFS025TL-FCSG325E BSDL File	03 Jun 2022
MPFS250T-FCG1152E BSDL File	03 Jun 2022
MPFS250TL-FCSG536E BSDL File	03 Jun 2022
MPFS250TS-FCVG484EES BSDL File	03 Jun 2022
MPFS250TS-FCSG536I BSDL File	03 Jun 2022
MPFS025TLS-FCVG484I BSDL File	03 Jun 2022
MPFS025TS-FCSG325I BSDL File	03 Jun 2022
MPFS250TLS-FCVG484I BSDL File	03 Jun 2022
MPFS250T-FCSG536E BSDL File	03 Jun 2022
MPFS250TS-FCVG484I BSDL File	03 Jun 2022
MPFS250T-FCVG484E BSDL File	03 Jun 2022
MPFS025T-FCVG484E BSDL FIle	03 Jun 2022
MPFS250TS-FCG1152EES BSDL File	03 Jun 2022
MPFS250TL-FCG1152E BSDL File	03 Jun 2022
MPFS025T-FCSG325E BSDL File	03 Jun 2022
MPFS250T-FCG1152EES BSDL File	03 Jun 2022
MPFS250TLS-FCVG784I BSDL File	03 Jun 2022
MPFS025TL-FCVG484E BSDL File	03 Jun 2022
MPFS250TS-FCG1152I BSDL file	03 Jun 2022
MPFS160TL-FCVG484E BSDL File	23 Jan 2023
MPFS095TS-FCVG784I BSDL File	23 Jan 2023
MPFS160T-FCVG484E BSDL File	23 Jan 2023
MPFS095TS-FCVG484I BSDL File	23 Jan 2023
MPFS095TS-FCSG536I BSDL File	23 Jan 2023
MPFS095TS-FCSG325I BSDL File	23 Jan 2023
MPFS160TLS-FCVG484I BSDL File	23 Jan 2023
MPFS160TS-FCVG484I BSDL File	23 Jan 2023
MPFS095TL-FCVG784E BSDL File	23 Jan 2023
MPFS095TL-FCVG484E BSDL File	23 Jan 2023
MPFS095TL-FCSG536E BSDL File	23 Jan 2023
MPFS095TL-FCSG325E BSDL File	23 Jan 2023
MPFS095T-FCVG784E BSDL File	23 Jan 2023
MPFS095TLS-FCVG784I BSDL File	23 Jan 2023
MPFS095TLS-FCVG484I BSDL File	23 Jan 2023
MPFS095TLS-FCSG536I BSDL File	23 Jan 2023
MPFS095TLS-FCSG325I BSDL File	23 Jan 2023
MPFS095T-FCVG484E BSDL File	23 Jan 2023
MPFS095T-FCSG536E BSDL File	23 Jan 2023
MPFS095T-FCSG325E BSDL File	23 Jan 2023
MPFS160TLS-FCVG784I BSDL File	16 Aug 2023
MPFS160TLS-FCSG536I BSDL File	16 Aug 2023
MPFS160TS-FCVG784I BSDL File	16 Aug 2023
MPFS160TS-FCSG536I BSDL File	16 Aug 2023
MPFS160TL-FCVG784E BSDL File	16 Aug 2023
MPFS160TL-FCSG536E BSDL File	16 Aug 2023
MPFS160T-FCVG784T2 BSDL File	16 Aug 2023
MPFS160T-FCVG784E BSDL File	16 Aug 2023
MPFS160T-FCSG536E BSDL File	16 Aug 2023
MPFS460TLS-FCG1152I BSDL File	09 Feb 2024
MPFS095T-FCSG536T2 BSDL File	09 Feb 2024
MPFS460TS-FCG1152I BSDL File	09 Feb 2024
MPFS460TL-FCG1152E BSDL File	09 Feb 2024
MPFS250T-FCSG536T2 BSDL File	09 Feb 2024
MPFS250T-FCG1152T2 BSDL File	09 Feb 2024
MPFS160T-FCSG536T2 BSDL File	09 Feb 2024
MPFS460T-FCG1152E BSDL File	09 Feb 2024

Thermal Models

Title	Date
PolarFire SoC Delphi Compact Thermal Model	30 Jan 2025

Title	Date
PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
PolarFire Family Memory Controller User Guide	03 Oct 2024
Memory Log Analyzer GUI Installer	16 Feb 2025
PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator	20 Feb 2025

Brochures

White Papers

Board Files

Brochures and Product Overviews

Title	Date
PolarFire® FPGAs and SoC FPGAs	05 Jun 2024
FPGA and SoC Brochure	13 Jun 2023
Mi-V RISC-V Ecosystem Brochure	14 Feb 2024
PolarFire® SoC Product Overview	15 May 2025

White Papers

Title	Date
PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper	30 Mar 2022
PolarFire SoC Linux Boot Time White Paper	30 Mar 2022
PolarFire SoC FPGA: Application Waypointing	30 Mar 2022
PolarFire® SoC FPGA: Opus Codec Benchmarking	30 Mar 2022
PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements	30 Mar 2022
Measurement of Worst Case Execution Time on PolarFire® SoC FPGA	13 Feb 2025
FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests	24 Jan 2025

Board Files

Title	Date
PolarFire SoC Icicle Kit Mechanical Drawing	30 Mar 2022
PolarFire SoC Icicle Kit Schematics	19 Aug 2020
MPFS-ICICLE-KIT-ES_Board_Files	19 Aug 2020
PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
MPFS-ICICLE-KIT-ES_User Guide	17 Dec 2024

Title	Date
PolarFire® SoC Software Development and Tool Flow User Guide	08 Apr 2025
PolarFire SoC FPGA Packaging and Pin Description	12 May 2025
PolarFire Family Clocking Resources	22 Nov 2024
PolarFire Family FPGA Security User Guide	26 Mar 2025
PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide	05 Feb 2025
PolarFire FPGA and PolarFire SoC FPGA Programming User Guide	22 Oct 2024
PolarFire Family Memory Controller User Guide	03 Oct 2024
PolarFire Family Transceiver User Guide	21 Apr 2025
PolarFire Family Fabric User Guide	03 Oct 2023
PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
PolarFire Family Power-Up and Resets User Guide	24 Apr 2024
PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
PolarFire SoC MSS Configurator User Guide	09 Aug 2021
UG0851: FlashPro Express User Guide	15 Apr 2020
UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5	10 Dec 2020
UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families	03 Sep 2020
PolarFire Family DRI SgCore User Guide	04 Oct 2024
PolarFire Family System Services User Guide	12 Jul 2023
PolarFire Family PCI Express User Guide	06 May 2025

GitHub Resources

Whether you're developing cutting-edge embedded systems, exploring RISC-V^®-based architecture or building AI/ML applications, you can refer to this page for resources such tools, software frameworks, design examples and documentation that are available to you on GitHub

Tools and Software Frameworks on GitHub

PolarFire® SoC Embedded Software

PolarFire SoCs combine a deterministic, coherent RISC-V CPU cluster with an L2 memory subsystem for real-time and Linux^® applications. Explore comprehensive documentation, reference designs and development tools on GitHub to kick-start your development journey

Browse PolarFire SoC Embedded Software on GitHub

Mi-V/RISC-V Resources

Browse tools and IP cores for RISC-V soft CPUs on Microchip FPGAs with support for Libero^® SoC Design Suite and SoftConsole.

Browse Mi-V and RISC-V Resources on GitHub

VectorBlox™ Software Development Kit (SDK)

VectorBlox SDK empowers AI/ML developers with tools for efficient Convolutional Neural Network (CNN) inference on PolarFire FPGAs and PolarFire SoC FPGAs. Access development tools, detailed documentation and practical examples on GitHub for your vision projects.

Browse VectorBlox SDK on GitHub

SmartHLS™ Compiler

SmartHLS compiler enables high-level synthesis for PolarFire FPGA and PolarFire SoC FPGA designs, allowing you to write in C++ and convert C++ code into optimized RTL. Get started with tools, examples and guides on GitHub.

Browse SmartHLS Compiler on GitHub

PolarFire SoC FPGAs Enable Deterministic Asymetric Multiprocessing (AMP) Linux^® Applications

Safety-critical systems, system control and security applications need the flexibility of the Linux Operating System (OS) and the determinism of real-time systems to control hardware. Typical Symmetric Multiprocessing (SMP) implementations may offer the flexibility of a rich operating system but are terrible for running real-time systems needing deterministic performance.

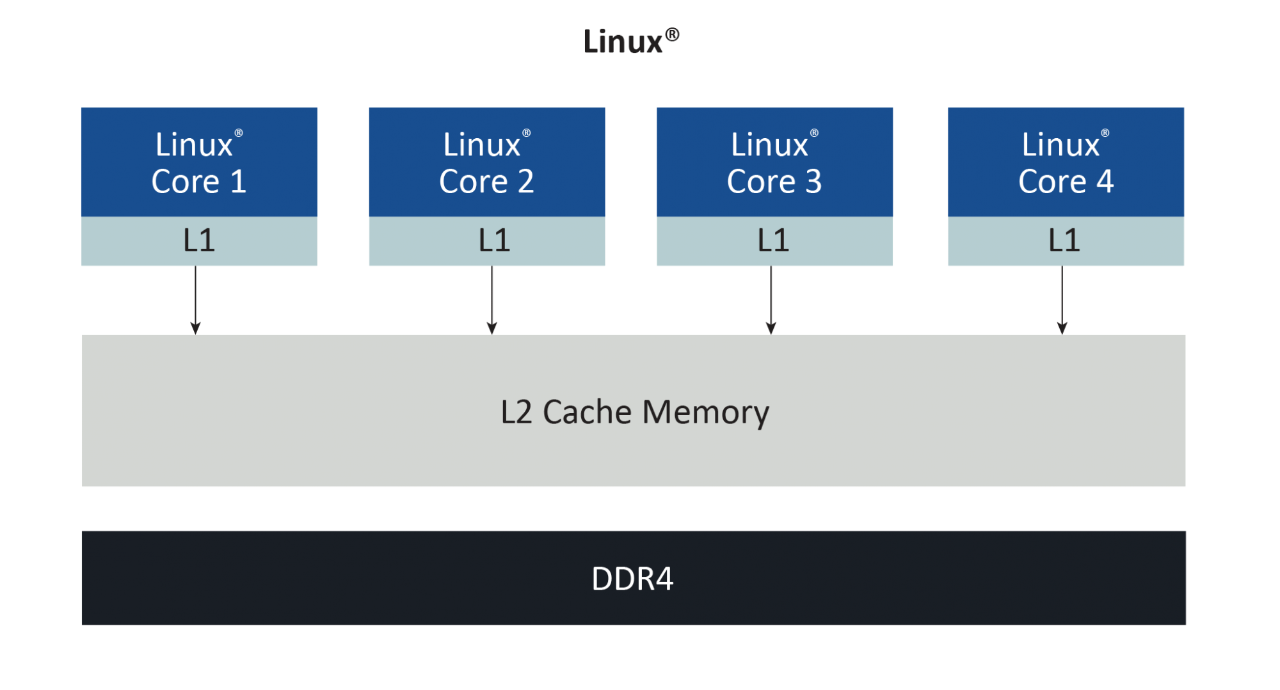

SMP on Arm^® Cortex^®-A Class Processor

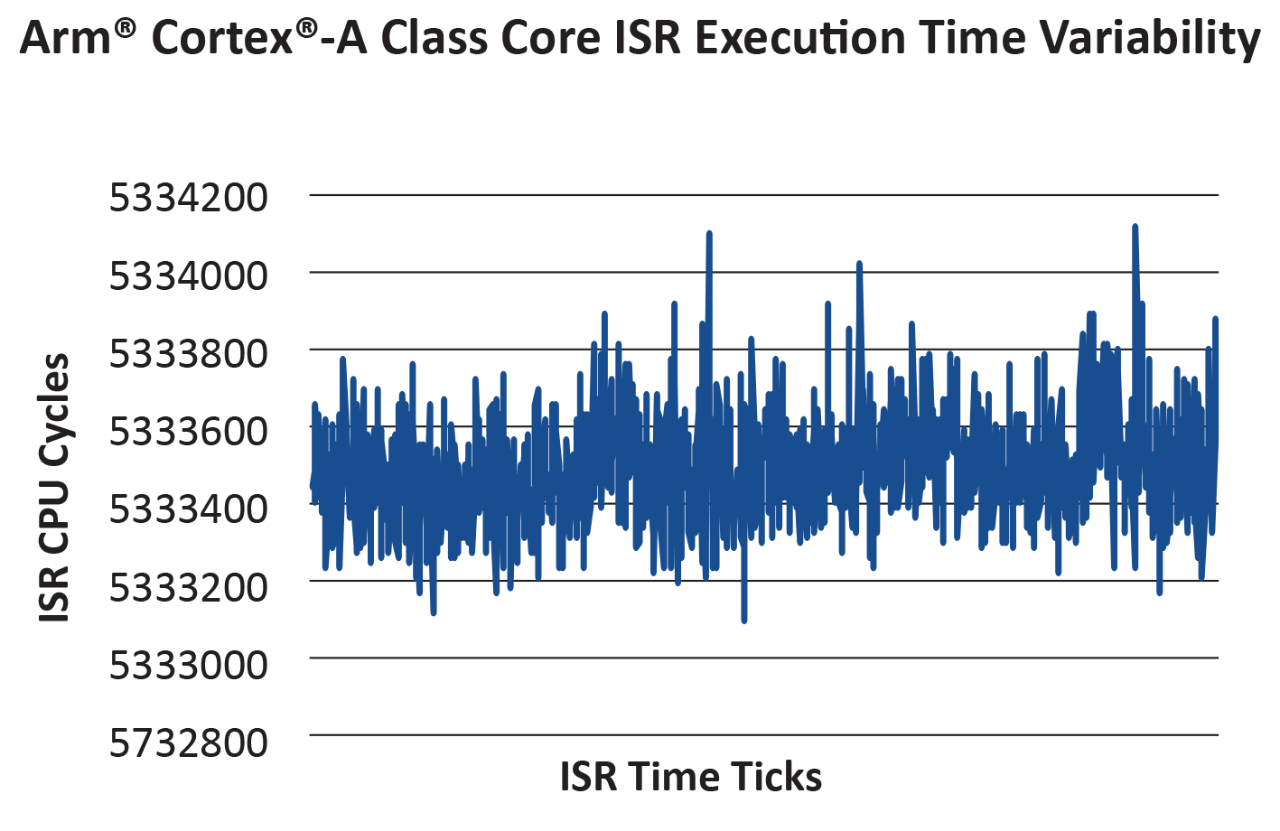

ISR Execution Times Vary Significantly

PolarFire SoC FPGAs feature a multi-core Linux-capable processor that is coherent with the memory subsystem, allowing a versatile mix of deterministic real-time systems and the Linux OS in a single multi-core CPU cluster. PolarFire SoC FPGAs create high-performance and hard real-time systems.

High-Performance Real-Time Applications

PolarFire SoC FPGAs enable AMP systems that can run a real-time application at maximum performance while also running the Linux OS. This solution offers a high-performing system that is not fully deterministic.

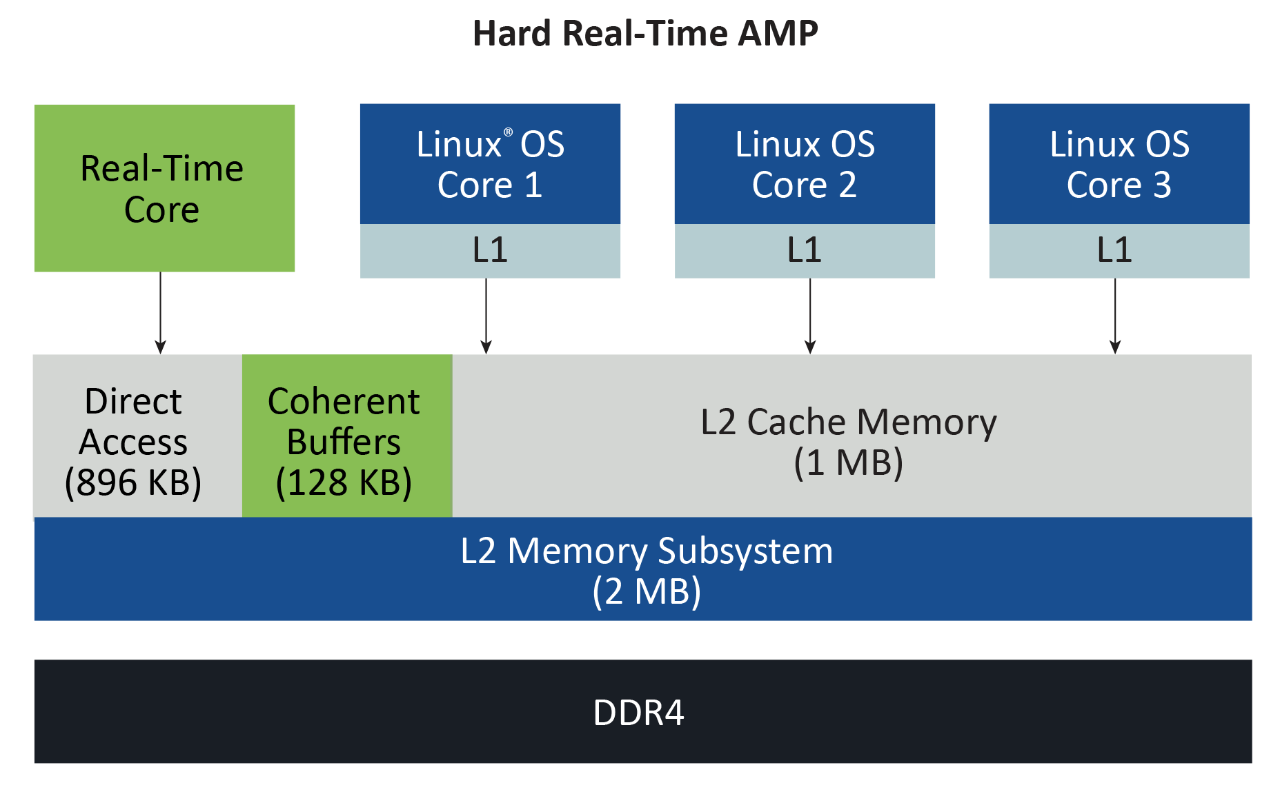

Hard Real-Time AMP

PolarFire SoC FPGAs also enable fully deterministic real-time applications alongside the Linux OS that execute on time, every time.

Hard Real-Time AMP on PolarFire^® SoC FPGAs

ISR Execution Is Deterministic

Defense-Grade Security for the Internet of Things

Security starts during silicon manufacturing and continues through system deployment and operations. Our PolarFire SoC FPGAs represent the industry’s most advanced secure, programmable FPGAs for the latest Internet of Things (IoT) applications.

Security Leadership

Features	PolarFire SoC	Competitor 1	Competitor 2	Competitor 3
TRNG	Hard-IP (SP800-90A CTR_DRBG-256; SP800-90B (draft) NRBG)	×	×	Soft-IP
AES	AES-128/192/256 (ECB, CBC, CTR, OFB, CFB, GCM, KeyWrap)	AES-256 (CBC)	AES-256 (CBC)	AES-256 (ECB, GCM)
SHA	SHA-1/224/256/384/512, Key Tree	SHA-256	SHA-256	SHA-384
HMAC	HMAC-SHA-1/224/256/384/512; GMAC-AES; CMAC-AES	HMAC-SHA2-256	HMAC-SHA2-256	×
RSA	SigGen (ANSI X9.31, PKCS v1.5), SigVer (ANSI X9.31, PKCS v1.5)-1024/1536/2048/3072/4096	Soft-RSA –(2048), SigGen(PKCS v1.5), SigVer (PKCS v1.5)	Soft-RSA –(2048), SigGen(PKCS v1.5), SigVer (PKCS v1.5)	Software library: RSA primitive (2048)
ECDSA	KeyGen, KeyVer, SigGen & SigVer - NIST & Brainpool (P256/384/521); KAS - ECC CDH, PKG, PKV	×	×	×
FFC	KAS - DH, DSA SigGen & SigVer (1024/1536/2048/3072/4096)	×	×	×
Tamper Sense	Voltage, Temperature, Clock Frequency, Clock Glitch, Active Mesh	×	×	Only Voltage and Temperature
PUF	PUF protection for Secure Key storage (Secure Boot and Data communication)	×	×	For secure boot key
Bitstream Protection	DPA resistant Encrypted bit-stream programming	×	×	✔
DPA Resistance	DPA resistant hard crypto co-processor supporting all above Crypto algorithms	×	×	×

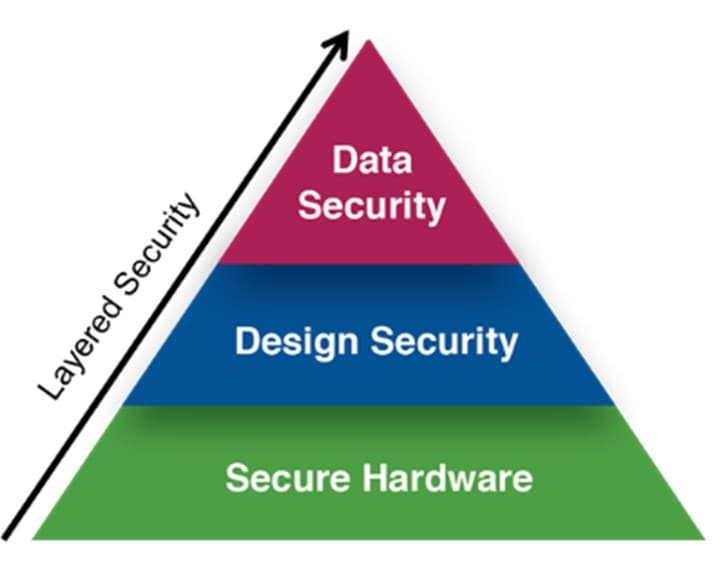

Secure hardware

Secure wafer-sort and packaging
Spectre- and Meltdown-immune CPUs

Design security

Side channel (DPA) resistant bitstream programming
Anti-tamper features
DPA-resistant secure boot

Data security

CRI DPA countermeasures pass-through license
DPA-resistant crypto-coprocessor

Physical Memory Protection (PMP)

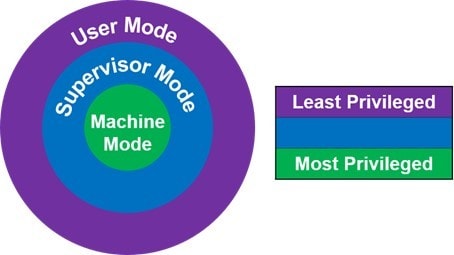

PMP is implemented in each of the PolarFire SoC FPGA’s processor cores. PMP is used to enforce memory access restrictions in conjunction with the machine's privilege state (machine mode, supervisor mode and user mode).

Design Tools

PolarFire SoC (MSS) Configurator

The PolarFire SoC Microprocessor Subsystem (MSS) configurator is a software tool to configure the PolarFire SoC microprocessor subsystem.

Learn More

Libero^® SoC Design Suite

Libero SoC Design Suite offers high productivity with its comprehensive, easy-to-learn, easy-to-adopt development tools for designing with our FPGA device families.

Learn More

SoftConsole

SoftConsole is a software development environment for the rapid development of bare metal- and RTOS-based C/C++ software.

Learn More

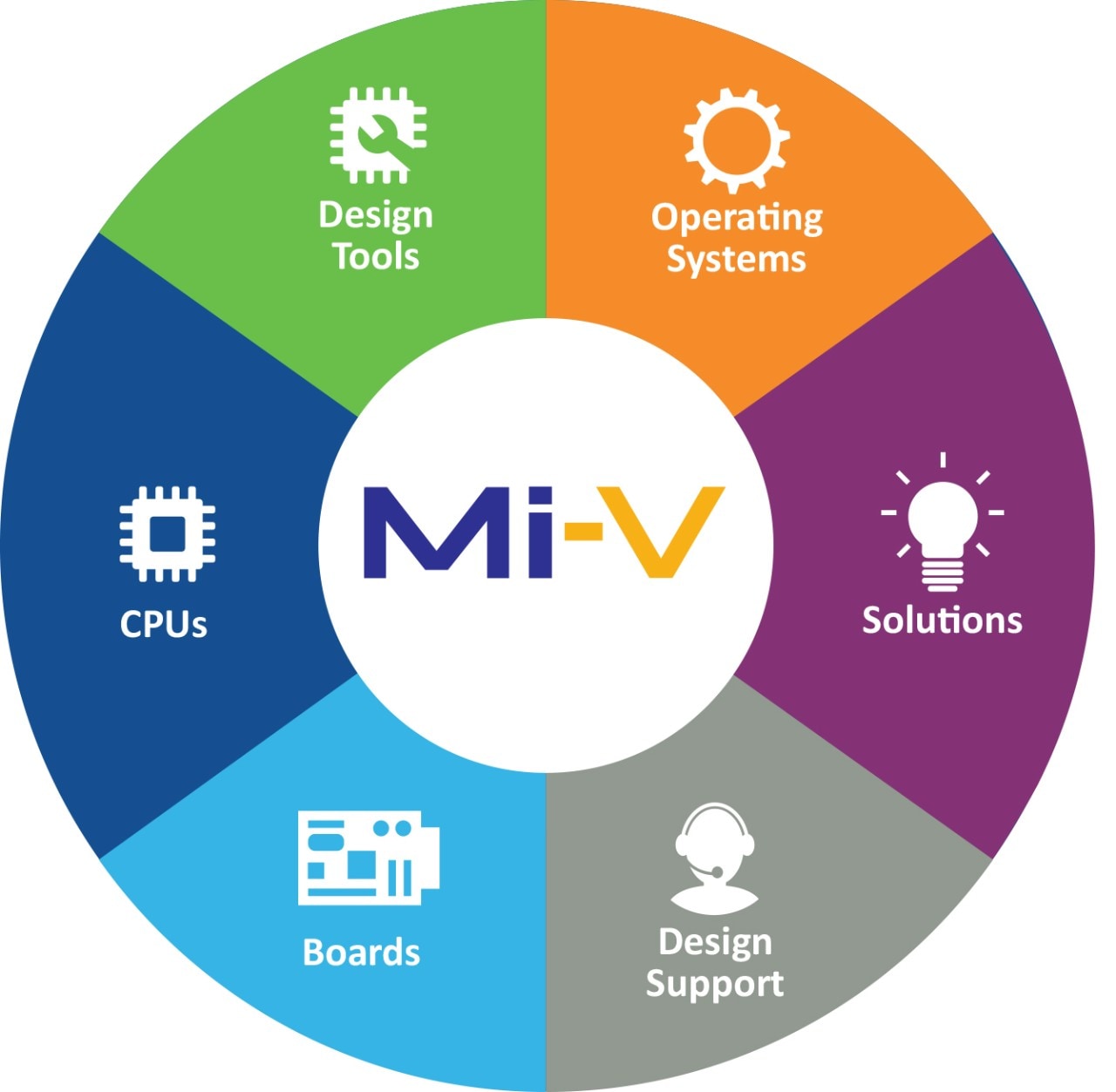

Mi-V Ecosystem

The Mi-V RISC-V^® ecosystem is a continuously expanding, comprehensive suite of tools and design resources developed by Microchip and numerous third parties to fully support RISC-V designs. The Mi-V ecosystem aims to increase adoption of the RISC-V ISA and Microchip's PolarFire SoC FPGA and RISC-V soft CPU portfolio.

Learn More

Support

Technical Support

Visit our technical support portal If you need assistance with your PolarFire SoC FPGA-based design.

Learn More

GitHub Discussions

Try our discussions forum on our GitHub page. Browse the available database of questions and answers, post your questions and support others in the discussions.

Learn More

Kits and Hardware

Microchip Evaluation Platforms
Mi-V Ecosystem Platforms

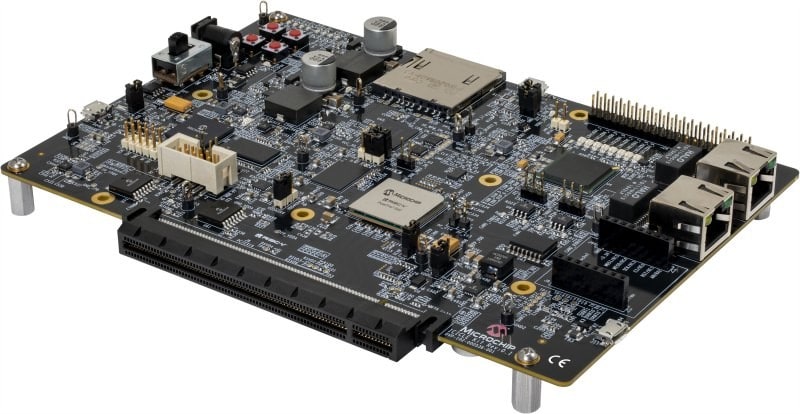

PolarFire^® SoC Icicle Kit

The PolarFire SoC Icicle Kit runs Linux^® out of the box and evaluates the microprocessor (MPU) subsystem, FPGA fabric, PCIe^®, Gigabit Ethernet, CAN, USB and more.

Buy PolarFire SoC Icicle Kit

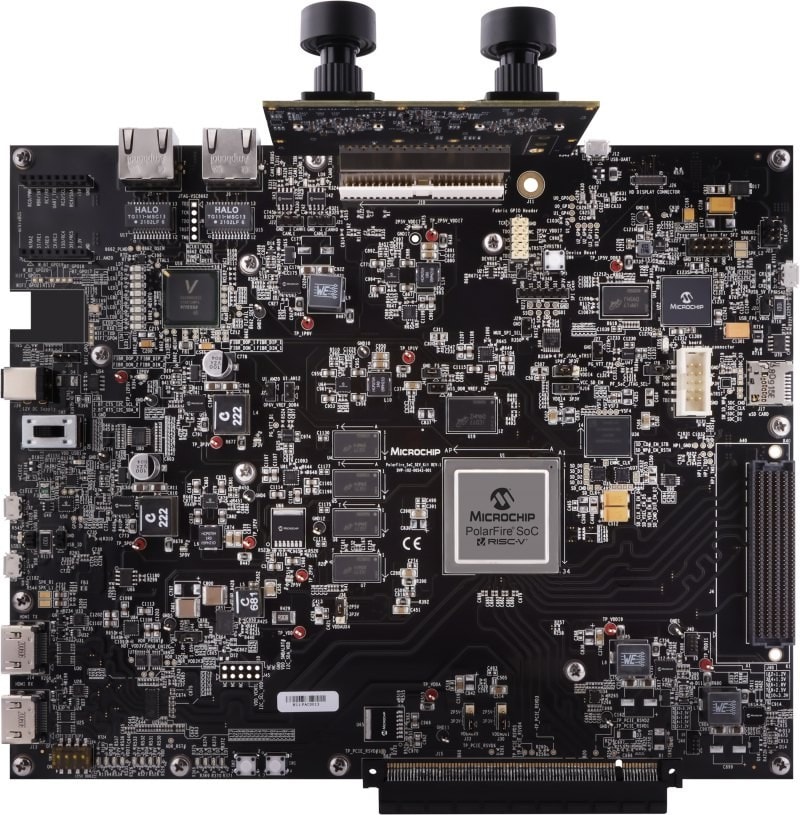

PolarFire^® SoC Video Kit

The PolarFire SoC Video Kit is a full-featured embedded vision development platform targeting secure, reliable and power-efficient vision applications at the edge, including our VectorBlox™ Accelerator SDK and Neural Network IP, and Industrial IoT (IIoT) and automation applications.

Buy PolarFire SoC Video Kit

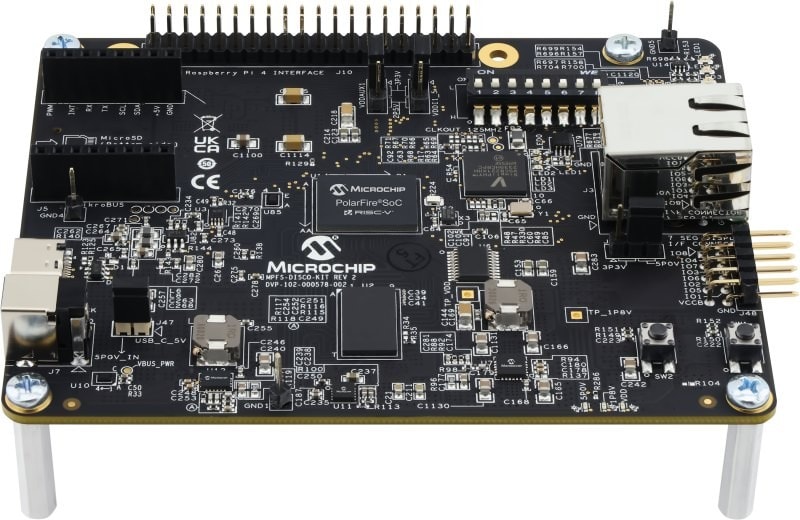

PolarFire^® SoC Discovery Kit

The PolarFire SoC Discovery Kit is a low-cost, open-source development kit powered by a quad-core, RISC-V application-class processor. This device supports Linux^® and real-time applications, a rich set of peripherals and 95K low-power, high-performance FPGA logic elements.

Buy PolarFire SoC Discovery Kit

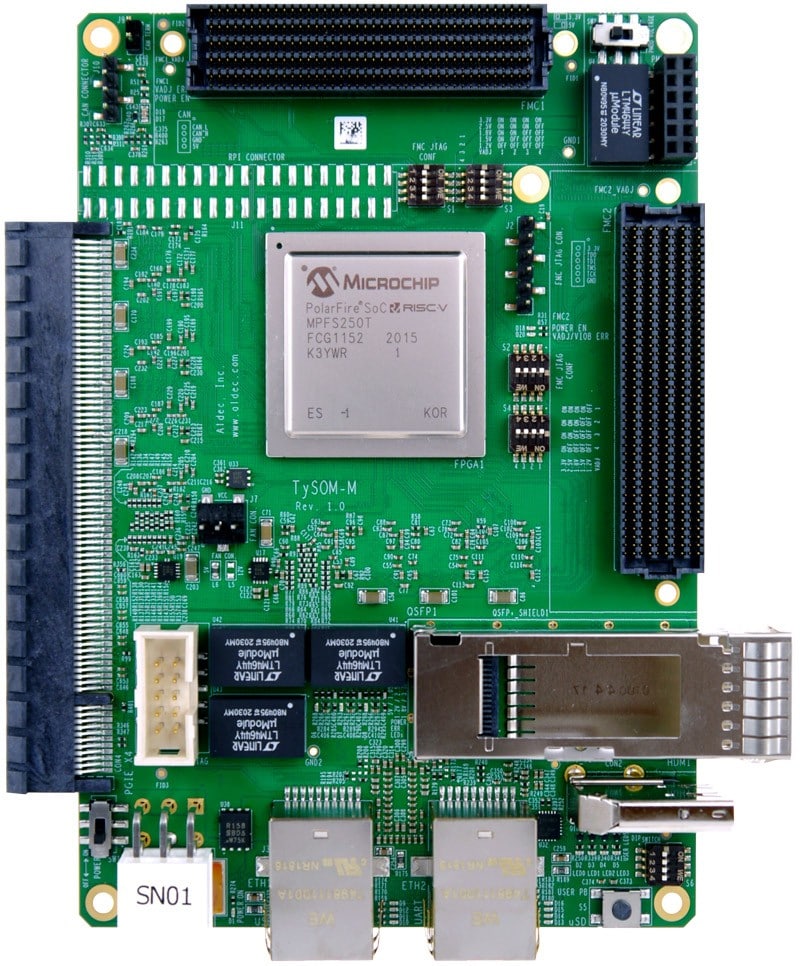

Aldec TySOM-M

Key features:

PolarFire SoC FPGA (MPFS250T-FCG1152E)
Memory: 16 Gb FPGA DDR4 ×32, 64 Kb EEPROM, microSD™, SPI Flash and eMMC
Interfaces: 2× FMC connector, 2× Ethernet, 1× USB 2.0, HDMI^®, PCIe^® ×4 Gen 2 root port and CAN

Learn More

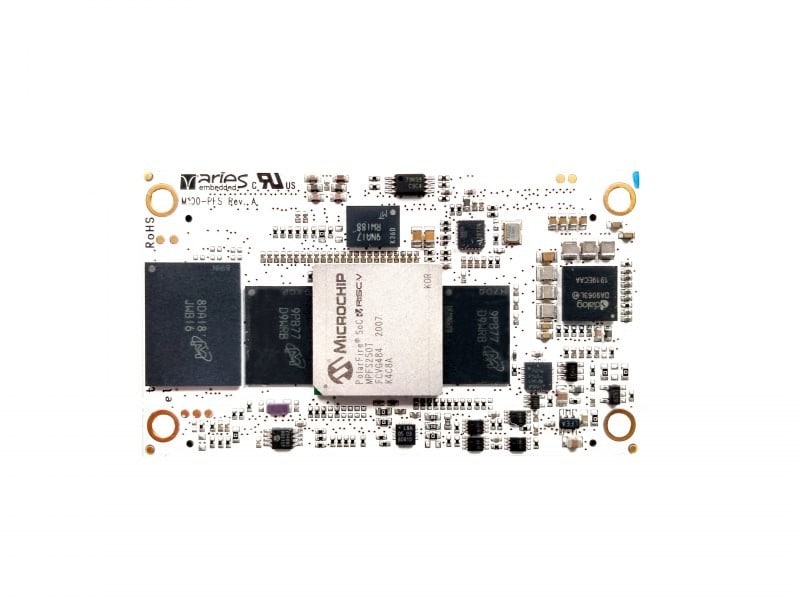

Aries Embedded SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: 4 GB LPDDR4 for MSS, 4 GB LPDDR4 for FPGA, 4 MB SPI Flash and 8 GB eMMC
Interfaces: 2 × Samtec QSH-090-01-F-D-A board-to-board interconnect
Dimensions: 74 mm × 42 mm

Learn More

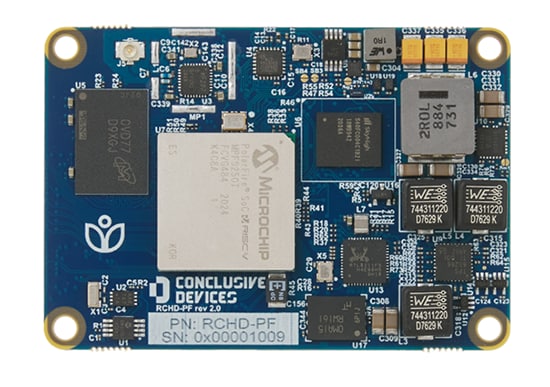

Conclusive Engineering SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: LPDDR4 (1, 2, 4 or 8 GB), eMMC 5.0 (4–64 GB), 8 KB EEPROM
Interfaces: USB 2.0 OTG, ×4 PCIe 2.0, 1 × SGMII, 1 × JTAG, 1 × UART, 1 × I²C, 802.11/b/g/n Wi-Fi^®
Dimensions 65 × 45 mm

Learn More

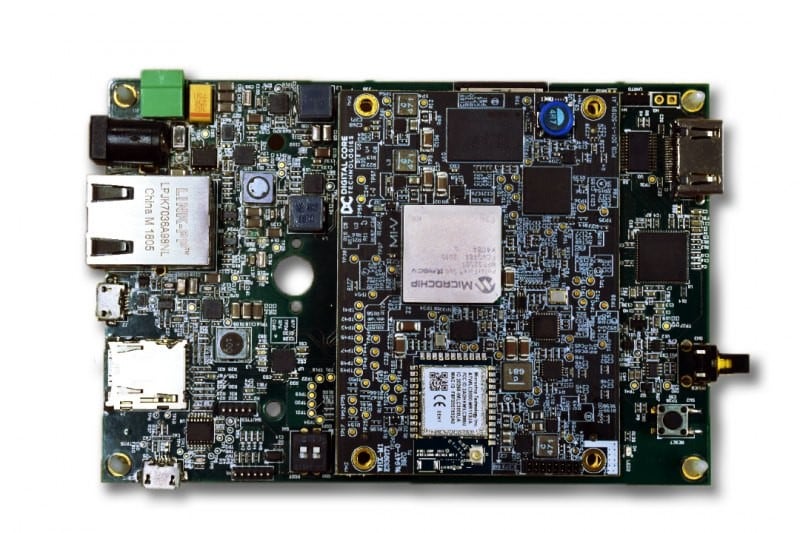

Digitalcore SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: 2 GB LPDDR4, 8 GB eMMC and 128 MB SPI Flash
Interfaces: Wi-Fi/BT, 1 × GbE, 1 × USB 2.0, ×4 PCIe Gen 2
Dimensions: 75 mm × 55 mm

Learn More

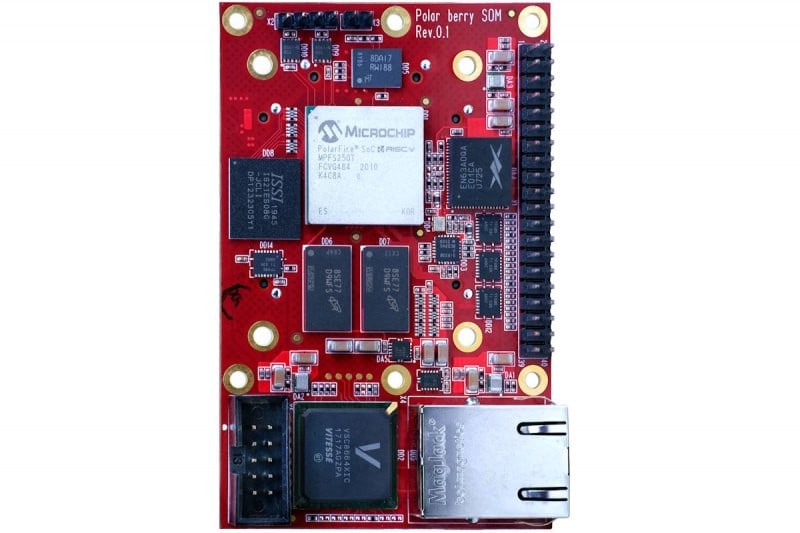

Sundance Polarberry SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: 4 GB DDR4, 128 MB SPI Flash and 4 GB eMMC
Interfaces: 4 × 12.7G transceivers, 40-pin Raspberry Pi^® interface and 1× RJ-45 connector
Dimensions: 55 mm × 85 mm

Learn More

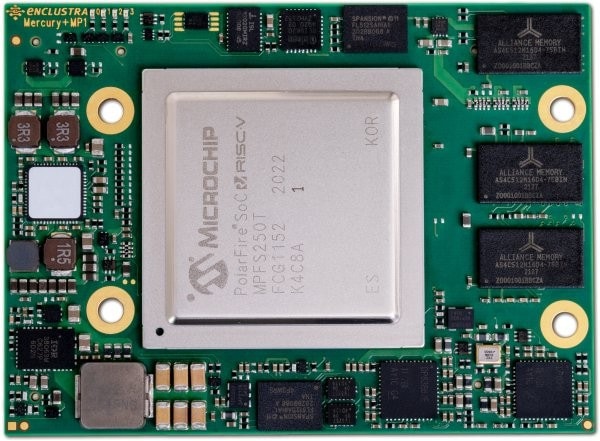

Enclustra Mercury SOM

Key features:

PolarFire SoC FPGA (MPFS250TS-FCG1152I)
Memory: DDR4 with ECC for MSS, DDR4 for FPGA, up to 19.2 GByte/sec memory bandwidth
Interfaces: PCIe Gen2 ×4, USB 2.0 and 2 × Gigabit Ethernet
Dimensions: 74 × 54 mm

Learn More

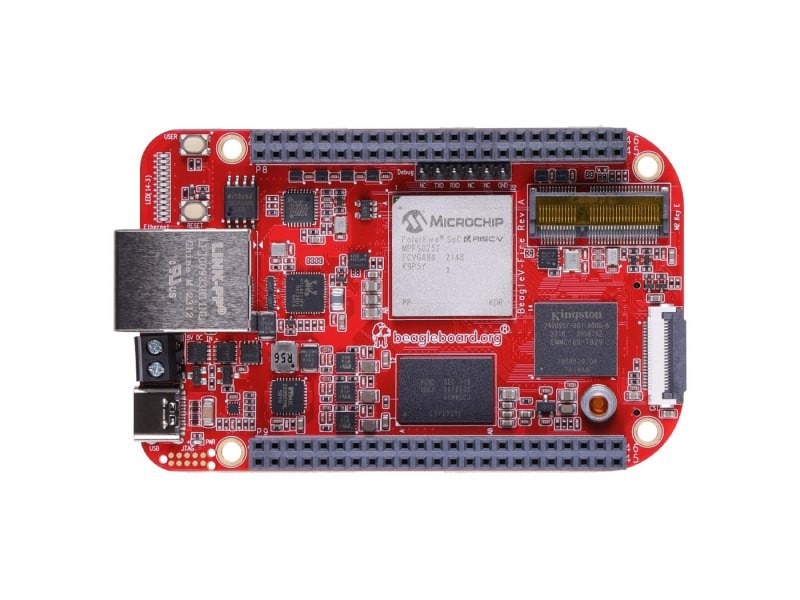

BeagleV^®-Fire

Key features:

PolarFire SoC FPGA (MPFS025T-FCVG484E)
Memory and storage: 2 GB LPDDR4, 16 GB e-MMC™ Flash, 128 Mbit SPI Flash, microSD™ card socket
Power: USB Type-C^®, screw terminals
Expansion and connectors: Gigabit Ethernet, M.2 E-key socket for Wi-Fi^® (PCIe^®/USB), SYZYGY high-speed expansion header, two 46-pin BeagleBone^®-compatible headers
55 mm × 88 mm

Learn More

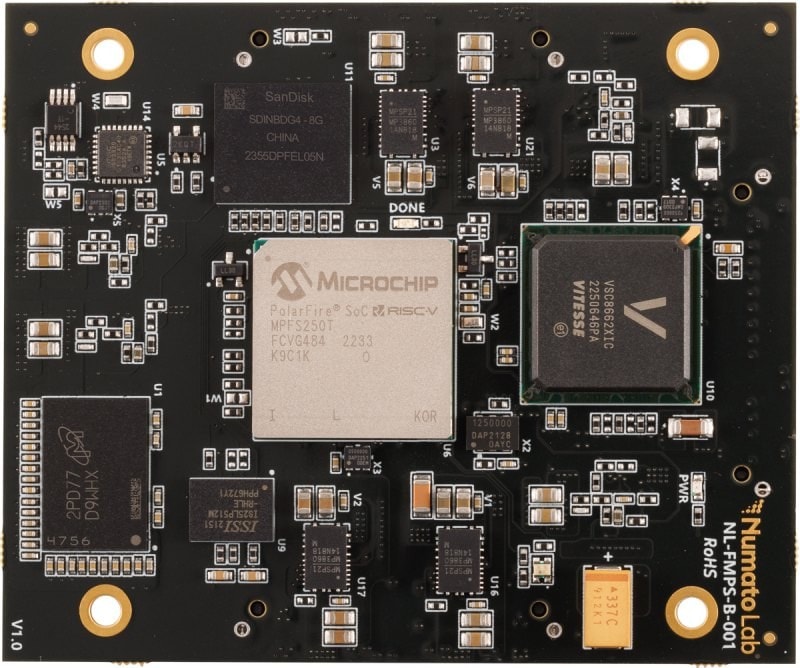

Numato Lab^® EagleCore™ SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484)
Memory: e-MMC, 8 GB, Flash Memory: 1 Gb SPI
Two Gigabit Ethernet PHYs
OTG PHY
User-defined I/Os: (HSIO: 58 I/Os, GPIO: 50 I/Os, MSSIO: 10 I/Os, four SerDes)
72 mm × 54 mm

Learn More

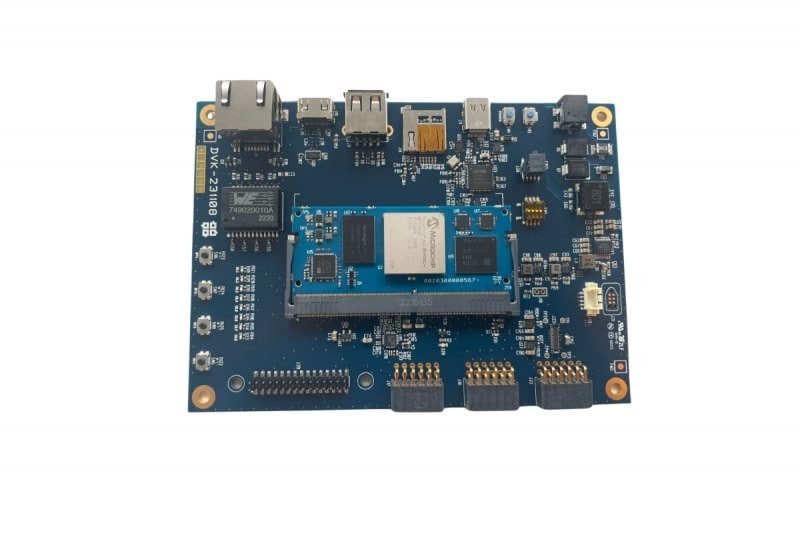

Enktron KYNESIS SOM

Key features:

23–254 KLE PolarFire SoC FPGA (MPFS025T, MPFS095T, MPFS160T and MPFS250T)
Up to 784 DSP blocks on FPGA fabric
Four 12.5 Gbps SerDes
Quad 64-bit, 667 MHz RV64GC cores
64-bit, 667 MHz RV64IMAC monitor core
Up to 2 Gbyte LPDDR4
Onboard Gigabit Ethernet PHY
USB 2.0 OTG
128 Mbit to 1 GBit NOR Flash
8–64 GByte e-MMC™ memory

Learn More

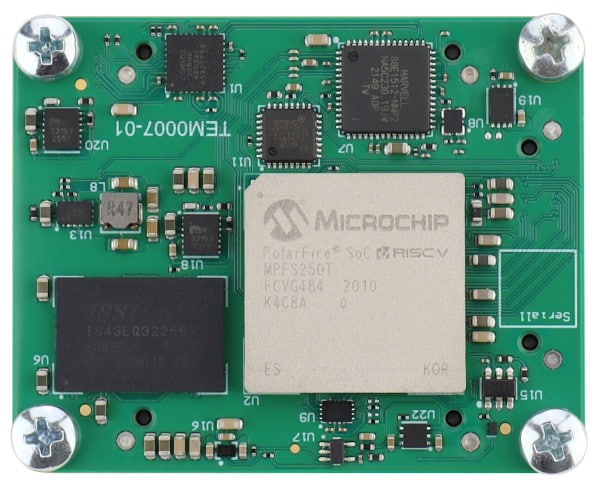

Trenz Electronic TEM0007 SOM

Key features:

PolarFire SoC FPGA (MPFS250T)
1 GByte LPDDR4 SDRAM
64 MByte SPI Flash memory
Serial EEPROM with EUI-48 node identity
USB 2.0 ULPI transceiver
10/100/1000 Mbps Gigabit Ethernet PHY
Onboard DC-DC converter
Three Samtec LSHM B2B connectors (2 × 100 pins, 1 × 60 pins)
Size: 4 × 5 cm

Learn More

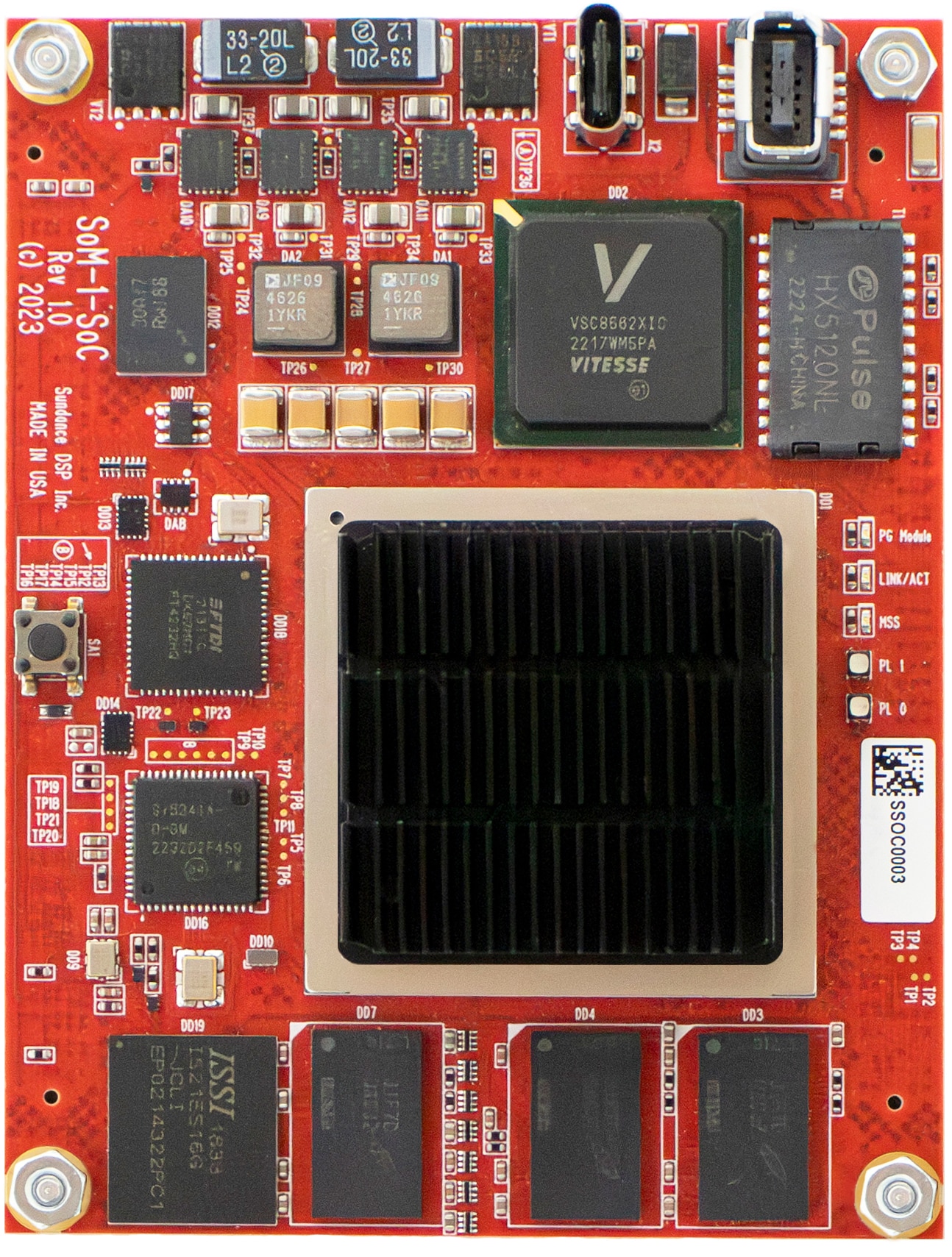

Sundance SoM1 SoC

Key features:

PolarFire SoC FPGA (MPFS460T-1FCVG1152 or MPFS250T-1FCVG1152)
4 GB of 32-bit wide DDR4 memory for the MSS
8 GB of 64-bit bus DDR4 memory
128 MB SPI Serial NOR Flash
16 GByte of e-MMC™ storage for Linux^®
20 high-speed, low-power transceivers from 250 Mbps–12.7 Gbps
USB-C^® with JTAG/UART bridge interface and power
Dimensions: 85 × 65 mm

Learn More

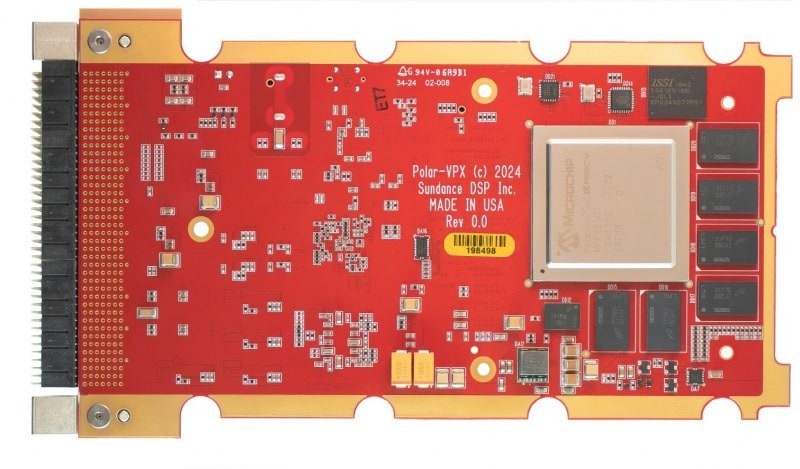

Sundance Polar-VPX

Key features:

PolarFire SoC FPGA (MPFS460T-1FCVG1152E or MPFS250T-1FCVG1152)
SOSA slot profile: SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16
4 GB of 32-bit wide DDR4 memory for the MSS
8 GB of 64-bit bus DDR4 memory
128 MB SPI Serial NOR FLASH
16 GByte of eMMC storage for Linux® image storage and user applications
20 high-speed, low-power transceivers from 250 Mbps to 12.7 Gbps
Mechanical dimensions are to OpenVPX specifications

Learn More

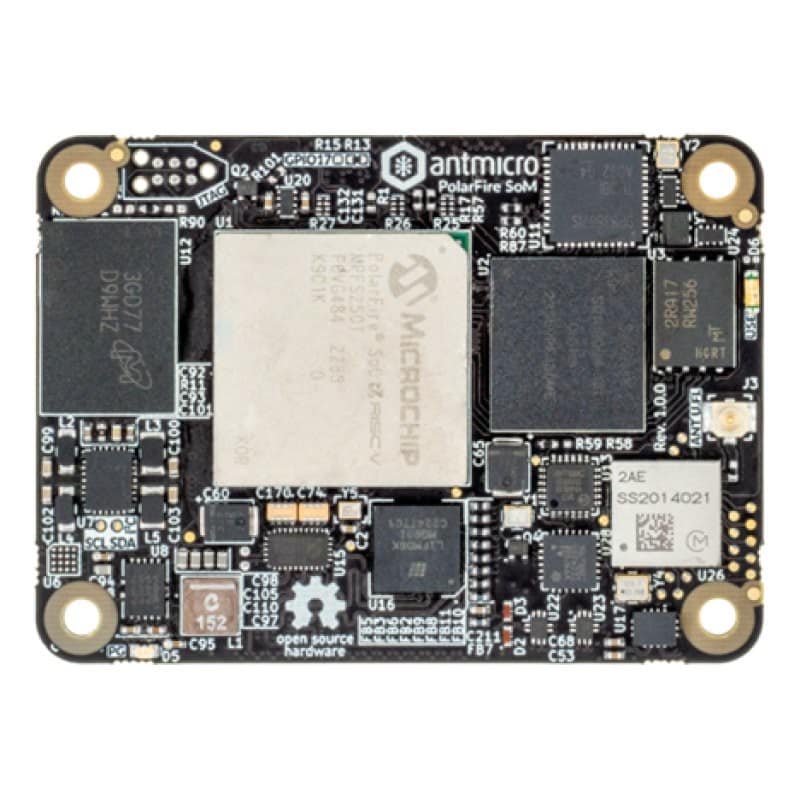

Antmicro Open Source PolarFire SoC SoM

Key features:

PolarFire SoC FPGA (MPFS250T)
2 GB LPDDR4-1866 SDRAM
8 GB eMMC Flash memory
Gigabit Ethernet PHY
Four-lane PCIe® (through MPFS250T built-in XCVR transceivers)
2.4 GHz, 5.0 GHz IEEE® 802.11 b/g/n/ac Wi-Fi® module
Bluetooth® 5.2 module
Four-lane MIPI DSI and 4-lane MIPI CSI-2
Additional two-lane MIPI CSI-2® camera port when working in 1.8V logic

Learn More

Programmers and Adapters

FlashPro6

This latest-generation programmer supports the Windows® and Linux® operating systems in conjunction with Libero® SoC Design Suite, FlashPro Express and SmartDebug software.

Learn More

FlashPro5

This fifth-generation programmer supports Windows and Linux environments.

Learn More

FlashPro4

This fourth-generation hardware programmer supports only Windows environments.

Learn More

ChipPro Programmer Baseboard

ChipPro is a quick and easy device programming solution for our FPGA devices.

Learn More

In-House-Programming

An optional In-House Programming (IHP) service is available if you are purchasing our devices in large volumes.

Learn More

Explore Other FPGA Kits and Hardware

Learn More

PolarFire® SoC FPGAs

Lowest-Power, Multi-Core RISC-V SoC FPGAs

Lowest-Power SoC FPGAs

Product Family

Documentation

GitHub Resources

Tools and Software Frameworks on GitHub

PolarFire® SoC Embedded Software

Mi-V/RISC-V Resources

VectorBlox™ Software Development Kit (SDK)

SmartHLS™ Compiler

PolarFire SoC FPGAs Enable Deterministic Asymetric Multiprocessing (AMP) Linux® Applications

SMP on Arm® Cortex®-A Class Processor

ISR Execution Times Vary Significantly

High-Performance Real-Time Applications

Hard Real-Time AMP

Hard Real-Time AMP on PolarFire® SoC FPGAs

ISR Execution Is Deterministic

Defense-Grade Security for the Internet of Things

Security Leadership

Physical Memory Protection (PMP)

Design Tools

PolarFire SoC (MSS) Configurator

Libero® SoC Design Suite

SoftConsole

Mi-V Ecosystem

Support

Technical Support

GitHub Discussions

Kits and Hardware

PolarFire® SoC Icicle Kit

PolarFire® SoC Video Kit

PolarFire® SoC Discovery Kit

Aldec TySOM-M

Aries Embedded SOM

Conclusive Engineering SOM

Digitalcore SOM

Sundance Polarberry SOM

Enclustra Mercury SOM

BeagleV®-Fire

Numato Lab® EagleCore™ SOM

Enktron KYNESIS SOM

Trenz Electronic TEM0007 SOM

Sundance SoM1 SoC

Sundance Polar-VPX

Antmicro Open Source PolarFire SoC SoM

Programmers and Adapters

FlashPro6

FlashPro5

FlashPro4

ChipPro Programmer Baseboard

In-House-Programming

Explore Other FPGA Kits and Hardware

PolarFire^® SoC FPGAs

PolarFire SoC FPGAs Enable Deterministic Asymetric Multiprocessing (AMP) Linux^® Applications

SMP on Arm^® Cortex^®-A Class Processor

Hard Real-Time AMP on PolarFire^® SoC FPGAs

Libero^® SoC Design Suite

PolarFire^® SoC Icicle Kit

PolarFire^® SoC Video Kit

PolarFire^® SoC Discovery Kit

BeagleV^®-Fire

Numato Lab^® EagleCore™ SOM
