High-Stability, Low-Power, Low-Phase-Noise and Low g-Sensitivity OCXOs
Highest Stability, Low Allan Deviation (ADEV) and Vibration-Compensated Low-g OCXOs

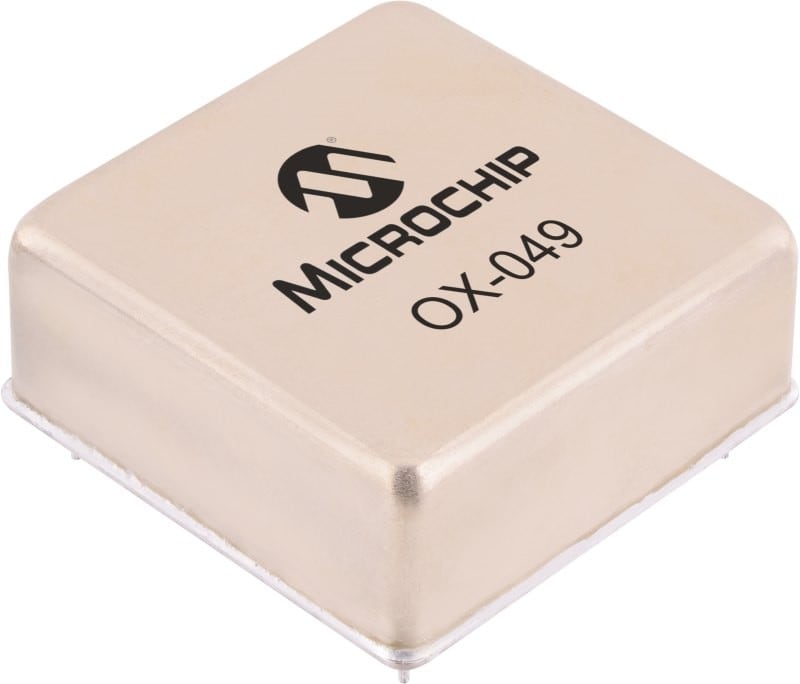

OX-049
Ultra-Low ADEV/Phase Noise
The OX-049 OCXO features ultra-low Allan Deviation (ADEV) of 2E–13 at 1 second, frequency vs. temperature that exceeds 1.0 ppb from −40°C to +85°C, and ultra-low phase noise of −145 dBc/Hz @ 10 Hz.

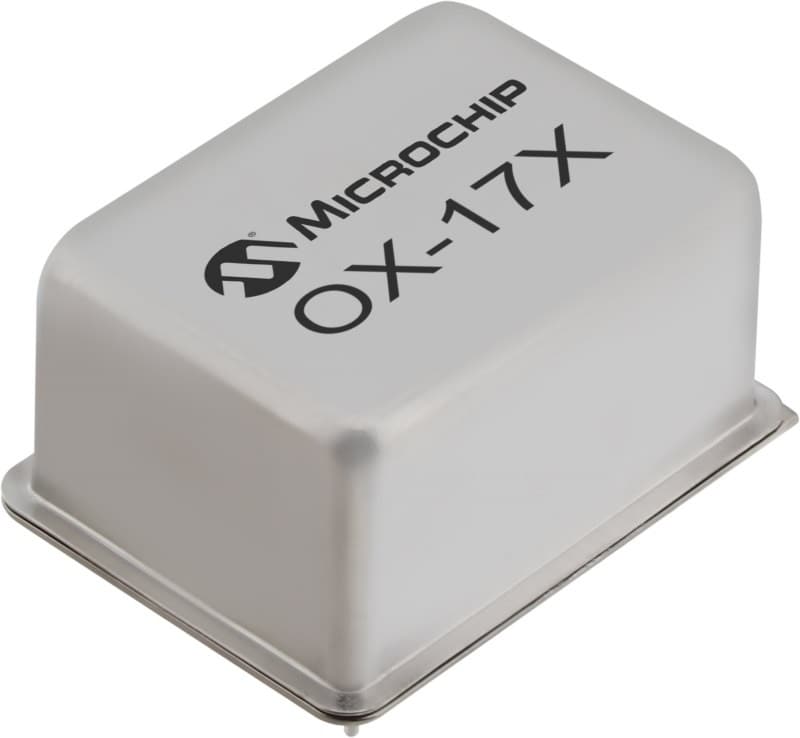

OX-171
High Temp Stability
The OX-171 is a high-stability ovenized crystal oscillator in a 28 × 38 mm package. It is capable of aging rates of 0.06 ppb/day and temperature stabilities of 1 ppb over an industrial temperature range.

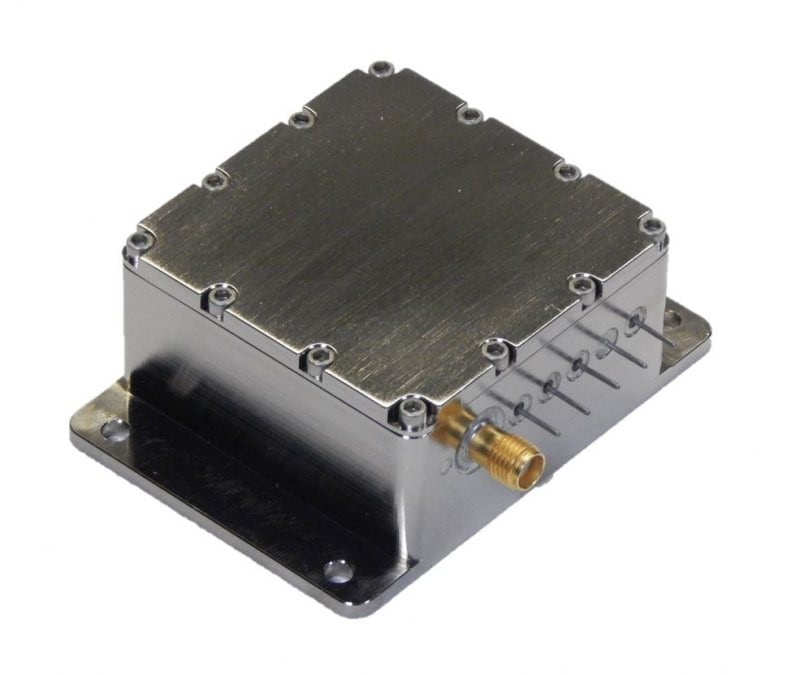

OX-047/OX-048
Ultra-Low g-Sensitivity
For optimal reduction in g-sensitivity, the OX-047/48 series of OCXOs provides active cancellation and with ultra-low phase noise to provide better than 0.02 ppb/g g-sensitivity between 10 Hz and 250 Hz.
OX-204
Low Phase Noise
With a noise floor as low as −175 dBc/Hz, the OX-204 targets applications that demand extremely low noise sources. It can be used as the reference oscillator for a phase-locked loop in the microwave spectrum.
Low-Power EMXO and Small-Size, Surface-Mount OCXOs

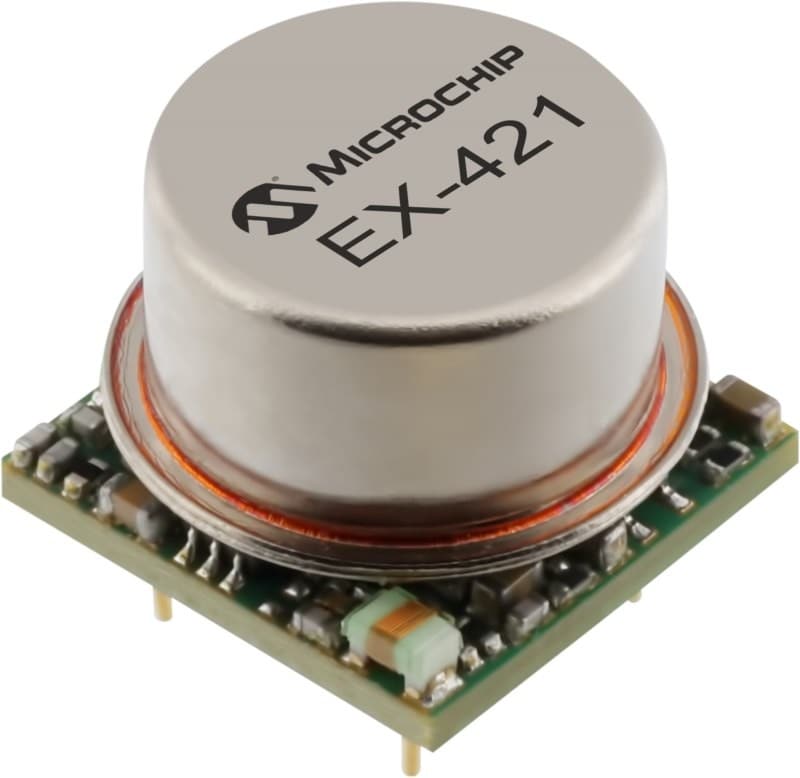

EX-421
Low Power
The EX-421 is a low-power solution that provides exceptionally low aging rates and tight temperature stabilities in an extremely small package. This EMXO is a well suited for handheld radios or battery-powered applications.

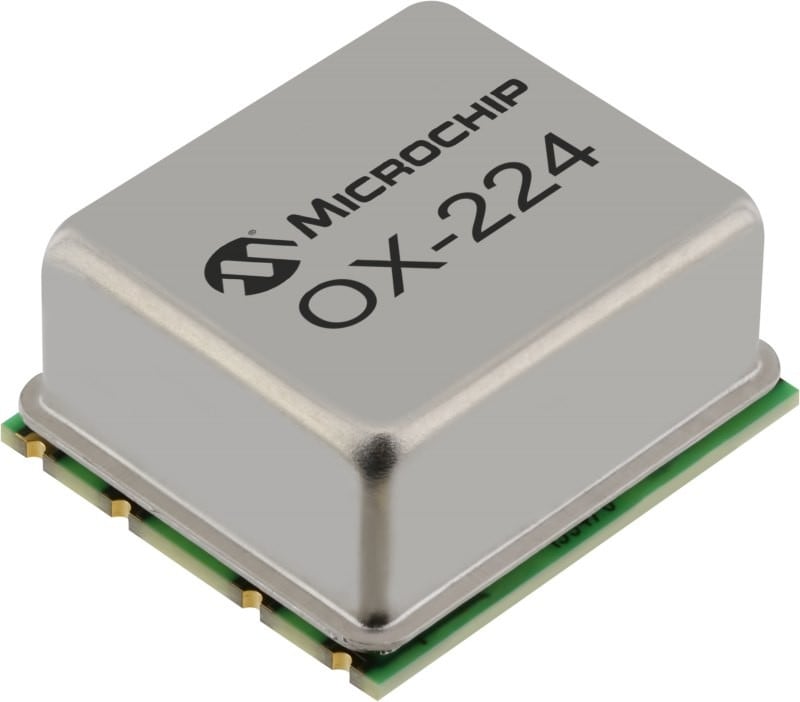

OX-224
High Stability
The OX-224 is an ultra-low-phase-noise OCXO with excellent aging and temperature stability for superb holdover performance. It is designed for applications that demand very stable, low-noise sources.

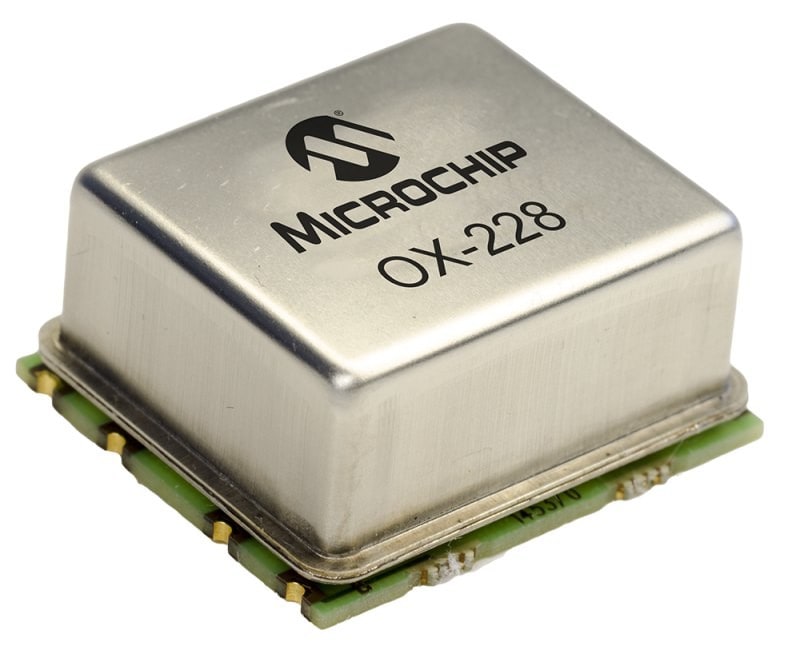

OX-228
Low Holdover
This CMOS-output OCXO is an excellent choice for 5G macro base stations and IEEE 1588 applications. It provides very good frequency stability and excellent holdover performance and is available in a 22 × 25 mm small-form-factor SMD enclosure.

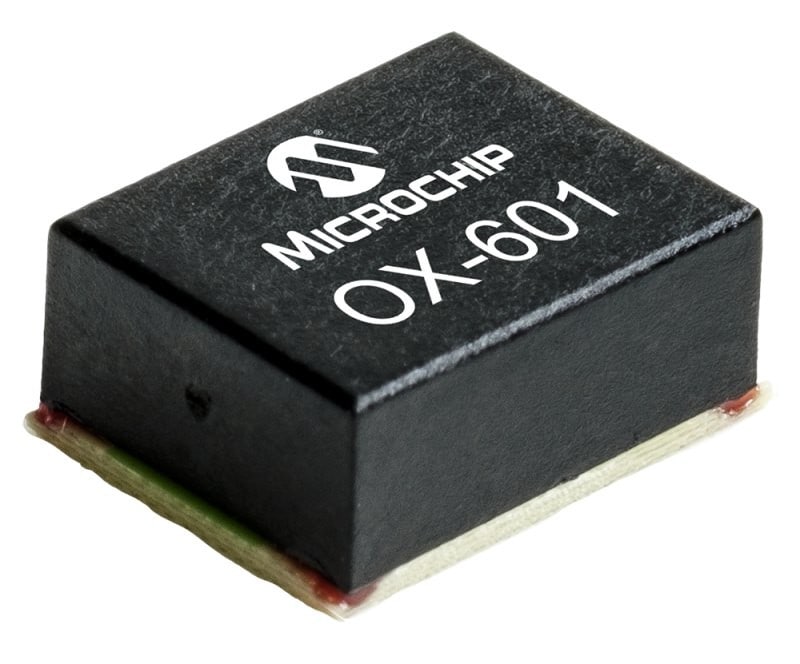

OX-601
Small Form Factor
This mini-OCXO provides high stability and excellent short-term stability in a small footprint, bridging the gap between AT cut-based TCXOs and larger OCXO designs. It is an excellent choice for small-form-factor 5G base station applications.
OCXO and EMXO Parametric Chart
Similar Devices
OCXO and EMXO Application Notes and Additional Information
- Application Notes
- Brochures
|
Title
|
Category
|
|---|---|
| Vectron Space Oscillator Brochure | Product Documents |
| Vectron Products Brochure | Product Documents |
Additional Oscillator Products Acquired from Vectron®
With the acquisition of Vectron, we offer a more comprehensive portfolio of oscillator technologies, services and solutions so you can build more reliable systems supporting today’s precise timing standards. These solutions include OCXOs, TCXOs, VCXOs, VCSOs, GNSS-DOs, high-reliability crystals and high-reliability space and defense products.
