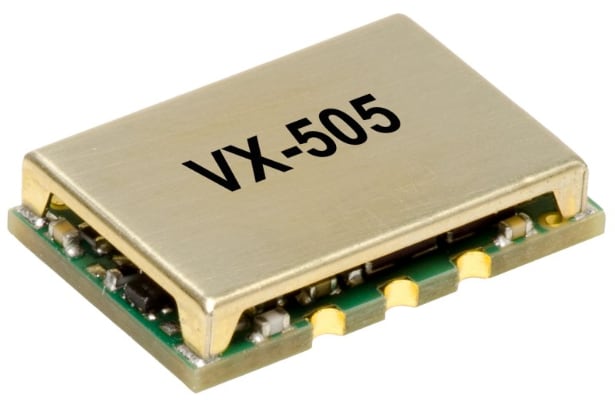

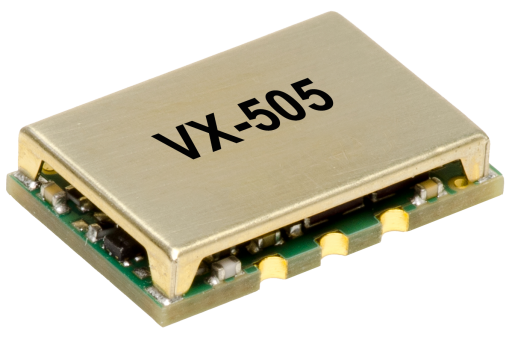

9x14 SMD Low Noise, extended temperature range VCXO
Overview
- Supply Voltage (V):3.3
- Minimum Operating Temperature (°C):-40 - +85
- Maximum Operating Temperature (°C):-55 - +125
- Dimensions:9x14
The VX-505 Voltage Controlled Crystal Oscillator provides a phase noise floor as low as -166dBc/Hz across the extended temperature range of -55°C to 125°C with a wide frequency range of 20MHz to 800MHz.
