Overview
- Specifically designed, fabricated, tested, characterized and qualified for automotive applications
- Service and support
- USB-IF Battery Charging 1.1 Specification-compliant
- Link Power Management (LPM)-compliant
- Integrated ESD protection circuitry
- Nearly complete elimination of Hi-Speed electrical degradation
- Battery charging
- Stereo and mono/mic audio
- USB Full-Speed/Low-Speed data
- Sleep mode tri-states all ULPI pins and places the part in a low current state
- 1.8 V to 3.3 V I/O voltage
- Programmable USB transceiver drive strength for recovering signal integrity
- Programmable USB receiver sensitivity
- ULPI clock IN mode (60 MHz sourced by link)
- 0 to 3.6 V input drive tolerant
- Able to accept noisy clock sources as reference to internal, low-jitter PLL
- Supports multiple frequencies
- Crystal/resonator support
- Smart detection circuits allow identification of USB charger, headset or data cable insertion
- UART mode for non-USB serial data transfers
- Internal 5.0 V cable short-circuit protection of ID, DP and DM lines to VBus® or ground

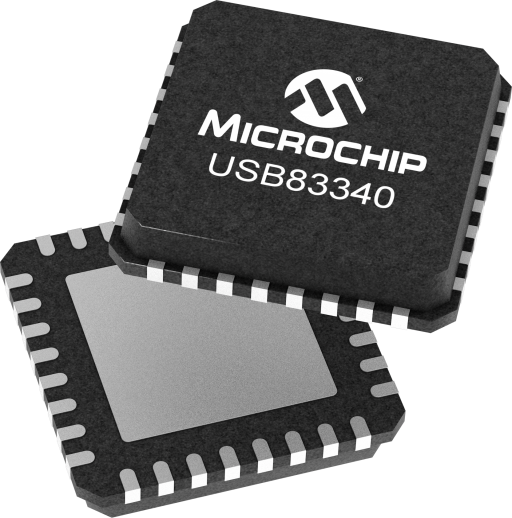

- 32-pin (5 x 5 mm) QFN lead-free, RoHS-compliant package
- Automotive operating temperature range: -40 °C to +105 °C
The USB83340 is optimized for use in applications where a low operating current and standby currents are essential. The device integrates 3.3 V and 1.8 V regulators, making it possible to operative the device from a single power supply.
The USB83340 uses Microchip's wrapper-less technology to implement the ULPI interface; allowing the PHY to achieve low-latency receiving and transmitting.
Applications
- In-vehicle USB Host implementations
- Infotainment test interface
- Automotive head unit
- Portable device charging via USB
- Rear seat infotainment access
- Internal connectivity bus
- Isolate high-value SoCs from outside
