SAM9X75D2GN4

SAM9X75D2GN4

Status: In Production
SAM9X75 System-On-Module with 2Gb DDR3L, 4Gb Nand Flash

Overview

  • Part Family:SAM9X75
  • FPU:No
  • Architecture:32
  • L1 Cache Memory (Data) (KB):32
  • L1 Cache Memory (Instructions) (KB):32
  • ARM Neon:No
  • Int. DRAM (MB):256
  • RAM (KB):64
  • SDIO/SD-CARD/eMMC:2
  • NAND Interface:Yes
  • QSPI:1
  • Number of EBIs:1
  • Functional Safety Support:Yes
  • Camera Interface:Yes
  • Graphics Controller/GPU:Yes
  • Secure Bootloader:Yes
  • Internal Oscillator:Two internal trimmed RC oscillators with typical values: 32 kHz (slow) and 12 MHz (fast)
  • Secure Key Storage (Fuse bits):10 KB
  • Anti-Tampering Inputs:8
  • Graphic LCD Overlay:24-bit
  • Ethernet:10/100/1000 Base-TX Mac & PTP
  • 10/100/1000 Ethernet MAC:1
  • Number of Ethernet Ports:1
  • USB:High Speed
  • Number of USB Modules:3
  • CAN:2
  • LIN:Yes
  • I2S:1
  • CODEC Interface (I2S, AC97):Yes
  • 32-Bit Digital Timers:2
  • ADC Resolution (bits):12
  • ADC Sampling Rate (ksps):1000
  • ADC Channels:8
  • Max I/O Pins:67
  • Low Power:Yes
  • Vbat/Vddbu battery backup:Yes
  • CPU Speed (MHz):800
  • ARM Trust Zone:No
  • Operation Voltage Min.(V):1.02
  • Operation Voltage Max.(V):1.21
  • L2 Cache:0
  • Ext. DRAM Bus (bits):16
  • ECC bits on NAND interface:24
  • Direct Memory Access (DMA) Channels:51
  • Type of CAN module Max A (ampere):CAN-FD
  • H/W Video Decoder:No
  • Hardware Touch Peripheral:None
  • Integrity Check Monitor (ICM):No
  • Crypto Engine:Yes
  • External Memory Encryption/Descryption:No
  • Environmental Monitors:No
  • Active Die Shield:no
  • Secure Key Storage:Yes
  • Temp. Sensor:No
  • Watch Dog Timer:Yes
  • Quadrature Encoder Interface:2
  • Pincount:174
Read more

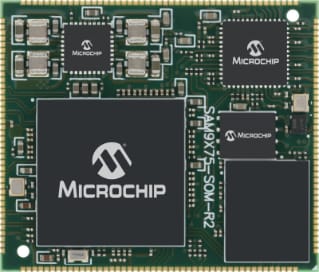

    SAM9X75 System-in-Package including:
  • ARM926EJ-S Arm Thumb processor-based SAM9X75 MPU running up to 800 MHz
  • 2-Gbit DDR3L
    4-Gbit NAND Flash Memory
    64-Mbit Serial Quad I/O Flash Memory (SST26VF064BEUIT-104I/MF) with Embedded EUI-48™ and
  • EUI-64™ MAC Addresses
    On-Board Power Management Unit (MCP16502TAB-E/S8B)
    Gigabit Ethernet Transceiver (LAN8840T-V/PSA)
    24-MHz Crystal Oscillator for microprocessor main clock generation
    25-MHz Crystal Oscillator and 125-MHz MEMS Oscillator (DSC1501MI2A-125.0000) for Ethernet
  • clock generation
    32.768-kHz Crystal Oscillator for slow clock generation
    One High-Speed USB Device, three High-Speed USB Hosts with dedicated on-chip transceivers
    Shutdown and Reset Control Pins
    Up to 67 I/Os
    Independent Power Supplies available for SD Cards, RGB LCD, LVDS Display, Camera Sensor and
  • Backup depending on voltage domains
  • Operational Conditions:
    Main operating voltage (5V_MAIN): 3.3V to 5.5V ±5%
  • Module ambient temperature range (TA) range: –40°C to +85°C
    Package:
  • 35x30 mm 174-pin 0.65 mm Pad Pitch Module, manually solderable for prototyping
