170V RF MOSFET
Overview
- product_type:RF Power MOSFET
- Output Power (W) [max]:150 - 600
- Frequency (MHz) [max]:30 - 175
- Drain Source Voltage (V) [max]:170
- Drain Supply Voltage (dc) (V) [max]:20 - 65
- Power Dissipation (W) [max]:115 - 1750
- Continuous Drain Current [I(D)] (max) (A):6 - 75

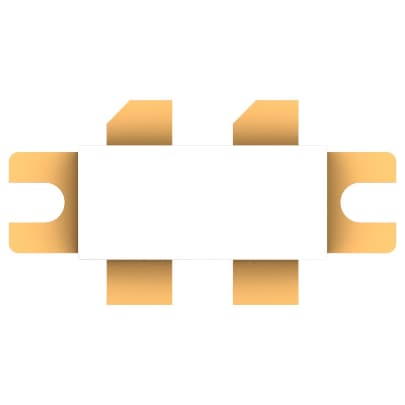

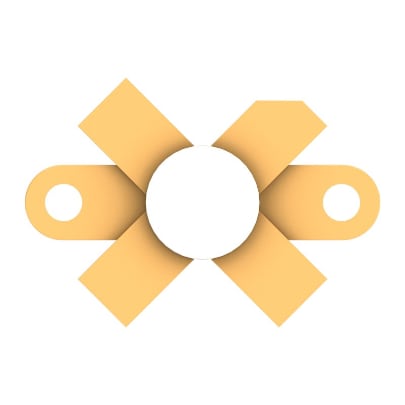

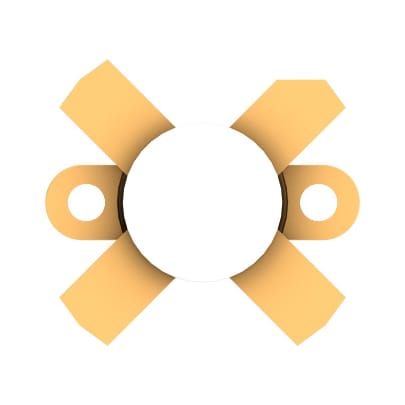

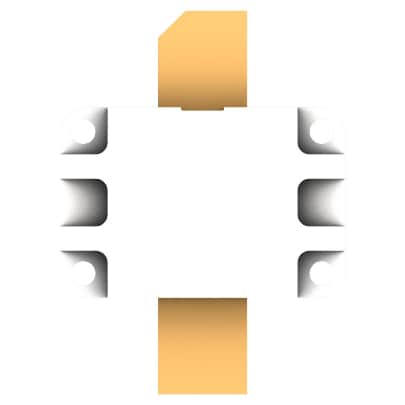

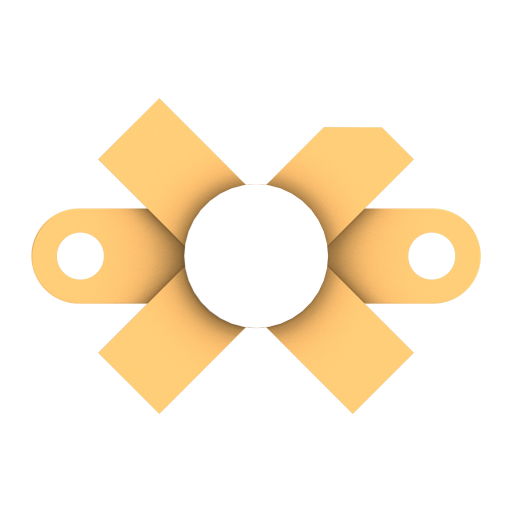

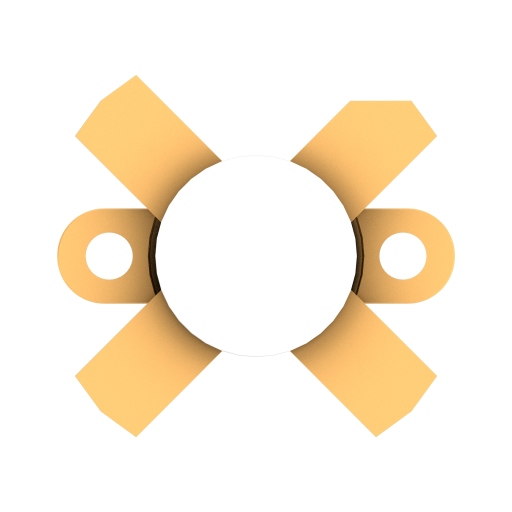

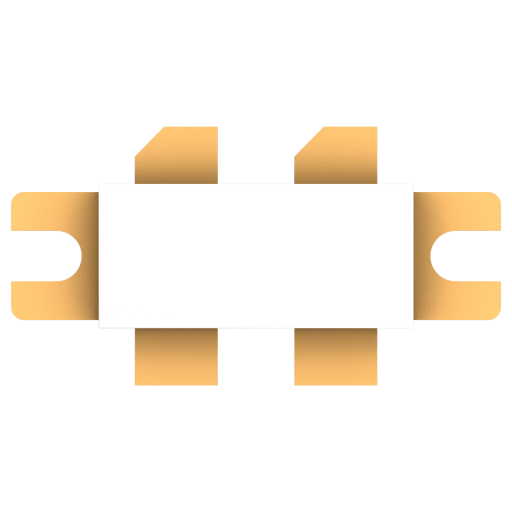

- Package Type:M174, M177, M208, T2
- Semi-Cap (6, 13, 27, 40MHz)
- Industrial Glass (6, 13, 27, 40MHz)
- PV Cells (6, 13, 27, 40MHz)
- Flat Panel Displays (6, 13, 27, 40MHz)
- Mass Spectrometry (13, 27MHz)
- Dielectric Heating (2 to 40MHz)
- Machine Tools (6, 13, 27MHz)
- Drilling (6, 13, 27MHz)
- Marking (13, 27, 40, 81, 108MHz)
- Cutting (6, 13, 27MHz)
- MRI (8 to 36, 64, 128 300MHz)
- Laser Scalpel (13, 27, 40, 81, 108MHz)
- Diathermy/Hyperthermia (8MHz)
- Chemical Analysis (13, 27MHz)
- Marine Radio (2 to 40MHz)
- HF Radio (2 to 40MHz)
- FM Broadcast (87 to 108MHz)
The VRF family of RF MOSFETs includes improved replacements for
industry-standard RF transistors. They provide improved ruggedness by
increasing the Bvdss over 30 percent from the industry-standard 125V to 170V
minimum. Low-cost flangeless packages are another improvement that shows Microchip’s
dedication to optimizing performance, reducing cost and improving reliability.
We will continue to offer more products with the new reduced cost flangeless
packages.
