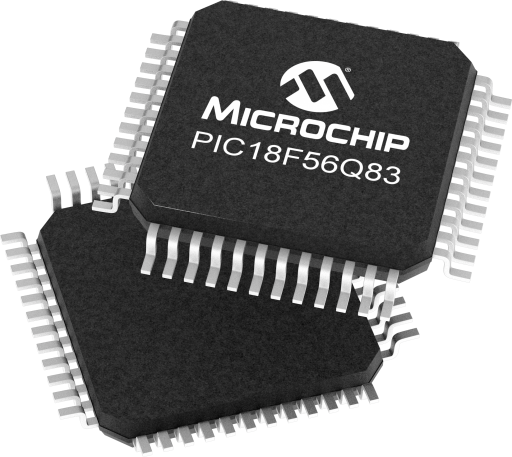

Overview
- Program Memory Size (KB):64
- RAM:8192
- Data EEPROM (bytes):1024
- Pin Count:48
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:12
- ADC Channels:43
- Zero Cross Detect:True
- Number of Comparators:2
- SPI:2
- I2C:1
- Stand alone PWM:4
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):1
- Data Signal Modulator (DSM):1
- Functional Safety
- IEC 60730 Class B library (UL certified)
- ISO 26262 FMEDA (ASIL B Ready certified by SGS TÜV)
- ISO 26262 Safety Manual (ASIL B Ready certified by SGS TÜV)
- ISO 26262 software diagnostics (certification pending)
- IEC 61508 FMEDA
- IEC 61508 Safety Manual (ultimo 2021)
- MPLAB XC8 Functional Safety Pro compiler
- CAN module:
- Functional in CAN FD or CAN 2.0B modes
- Eight Direct Memory Access (DMA) Controllers:
- Data transfers capabilities
- User programmable source and destination sizes
- Hardware and software triggered data transfers
- Vectored Interrupt Capability:
- Selectable high/low priority
- Fixed interrupt latency of three instruction cycles
- Programmable vector table base address
- Backwards compatible with previous interrupt capabilities
- Analog-to-Digital Converter with Computation and Context Switching (ADC):
- Automated math functions on input signals:
- Averaging, filter calculations, oversampling and threshold comparison
- 4 Separate Contexts (settings and results) saved and accessible separately
- Contexts can be accessed through firmware or DMA
- Five internal analog channels
- Hardware Capacitive Voltage Divider (CVD) Support:
- Automates touch sampling and reduces software size and CPU usage when touch or proximity
- Universal Timer (UTMR)
- Two Customizable 16-bit Timers - Combine to create larger bit timer
- 8-Bit Digital-to-Analog Converter (DAC):
- Two Comparators (CMP):
- Four 16-Bit Pulse-Width Modulators (PWM):
- Data Signal Modulator (DSM):
- Programmable CRC with Memory Scan:
- Reliable data/program memory monitoring for Fail-Safe operation (e.g., Class B)
- Calculate 32-bit CRC over any portion of Program Flash Memory
- Communication:
- Five UART modules:
- LIN master and slave, DMX mode, DALI gear and device protocols
- SPI / I2C
- Doze: CPU and Peripherals Running at Different Cycle Rates (typically CPU is lower)
- Idle: CPU Halted While Peripherals Operate
- Sleep: Lowest Power Consumption
- Peripheral Module Disable (PMD):
- Ability to selectively disable hardware module to minimize active power consumption of unused peripherals
- JTAG: Supports boundary scan
The PIC18-Q83 family expands the 8-bit MCUs by combining an extensive array of Core Independent Peripherals (CIPs) with Controller Area Network (CAN). These cost optimized MCUs contain time-saving CIPs in up to 48-pins with up to 128 KB of flash memory. The family introduces new features and peripherals like the Universal Timer (UTMR) with customization capability; context switching added to the 12-bit ADC with Computation for automating analog signal analysis for real-time system response. Additionally, it includes industry standard options, JTAG Boundary Scan, 32-bit Cyclic Redundancy Check (CRC) with memory scan on boot for added system safety. System designers can benefit greatly by saving time, as it is significantly easier to configure a hardware-based peripheral, as opposed to writing and validating an entire software routine, to accomplish a task.
Functional Safety:
This product is suitable for safety-critical applications targeting automotive (ISO 26262), industrial (IEC 61508) and consumer goods (IEC 60730) applications. Various important collateral and tools are available to aid developers of safety applications – refer to the Product Features below for a list of device specific safety collaterals. TÜV SÜD certified MPLABX development tools are also available for this product. Contact your local Microchip sales office or your distributor for more information.
