Overview
Alternate products
Compare Products
(5)
- LogicElements(K):254
- Math Blocks 18x18:784
- Fabric uPROM Kbit (kilobit):470
- Total RAM KB (kilobyte):17600
- PCIe Lanes:2
- SERDES_Speed Gbps (gigabits per second):12.7
- SERDES lanes:16
- PLLs:8
- Temp Max °C (degrees Celsius):100
- Temp Min °C (degrees Celsius):-40
- Max. User I/O:508
- FPGA Fabric
- 254K logic elements (4-input LUT + DFF)
- 784 Math blocks (18x18 MACC)
- 16 SerDes lanes of 12.7 Gbps
- Microprocessor Subsystem
- Processor
- 1x 64-bit RV64IMAC monitor/boot core
- 4x 64-bit RV64GC Application cores
- Fmax of 667 MHz (–40 °C to 100 °C Tj),
- 3.125 CoreMarks/MHz, 1.714 DMIPS/MHz
- Storage
- MMC 5.1 SD/SDIO
- 1 Quad SPI flash controller
- 128 KB eNVM
- 56KB sNVM
- Memory Interfaces
- 36-bit DDR4/DDR3/LPDDR4/LPDDR3 memory controller with SECDED
- Communication Interfaces
- 2x GigE MACs, USB 2.0 OTG, 5x multi-mode UARTs, 2x SPI, 2x I2C, 2x CAN 2.0 Controllers.
- 2x PCIe Gen2 End Points/Root Ports

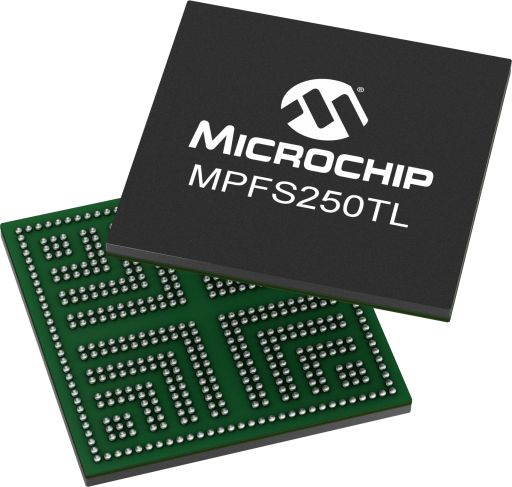

The PolarFire® SoC FPGA is built on the award-winning PolarFire FPGA architecture and is the first SoC FPGA with a deterministic, coherent RISC-V CPU cluster and a deterministic L2 memory subsystem enabling Linux and real-time applications. The family delivers up to 50% lower power than alternative FPGAs and spans from 23k to 461k logic elements and features 12.7G transceivers.
Use your up or down key to switch images.
Not the part you were looking for?
Tools And Software
Development Environment
Emulator and Debuggers
Demo & Evaluation Boards
Programmers
| Tools |
|---|
 Our comprehensive, easy-to-learn and easy-to-adopt development tools allow you to design with our power-efficient FPGAs.
|
| Start designing your embedded system today with our comprehensive design suite for our FPGAs, SoC FPGAs and radiation-tolerant FPGAs.
|
| Utilize the comprehensive ecosystem of design resources for PolarFire, RTG4, IGLOO 2 and SmartFusion 2 FPGA-based designs.
|
| Tools |
|---|
| FlashPro5 offers high performance through USB 2.0 that supports Serial Peripheral Interconnect (SPI) and JTAG interfaces.
|
| FlashPro6 offers exceptionally high performance through USB 3.0 that supports Serial Peripheral Interconnect (SPI) client and JTAG interfaces.
|
| Tools |
|---|
| The PolarFire SoC Video Kit is the Industry’s first RISC-V SoC FPGA-based, full-featured embedded vision development platform targeting secure, reliable, and power-efficient vision applications at the edge, including the VectorBlox™ Accelerator SDK and neural network IP, Industrial IoT (IIoT) and automation.
|
| This low-cost development platform is an excellent solution for evaluating the five-core RISC-V microprocessor subsystem with its innovative Linux® OS support, real-time execution and low-power capabilities, along the rich set of peripherals available on the PolarFire SoC FPGA.
|
| Tools |
|---|
| FlashPro5 offers high performance through USB 2.0 that supports Serial Peripheral Interconnect (SPI) and JTAG interfaces.
|
| FlashPro6 offers exceptionally high performance through USB 3.0 that supports Serial Peripheral Interconnect (SPI) client and JTAG interfaces.
|
