500mA Switch with Ripple Blocker Technology
Overview
- IGND Typical µA (microampere):150
- IOUT #1 Max mA (milliampere):500
- Noise Rms Freq Interval µV (microvolt):98
- # of Out:1
- Driver Type:Single LDOs/Ripple blocker
- Rated IOUT Max mA (milliampere):500
- VIN Max V (volt):3.6
- VIN Min (V) V (volt):1.8
- VOUT V (volt):Input Follower
- Line Regulation (%):0
- Load Regulation(%):0
- 1.8V to 3.6V input voltage range
- Active noise rejection over a wide frequency band: >60dB from 40kHz to 5MHz
- Rated to 500mA output current
- Current-limit and thermal-limit protected

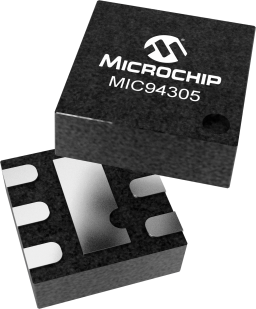

- 1.6mm x 1.6mm, 6-pin Thin DFN
- Logic-controlled enable pin
- -40°C to +125°C junction temperature range
The MIC94305 is an integrated load switch that incorporates Ripple Blocker™ active filter technology. The MIC94305 provides high-frequency ripple attenuation (switching noise rejection) for applications where switching noise cannot be tolerated by sensitive downstream circuits, such as RF applications. A low-voltage logic enable pin disconnects the pass element and puts the MIC94305 in a low current-shutdown state when disabled.
The MIC94305 operates from an input voltage of 1.8V to 3.6V, allowing true load switching of low-voltage power rails in any electronic device. The output voltage (VOUT) is set at a fixed drop (typically 170mV) from the input voltage (VOUT = VIN - 170mV). This maintains high efficiency independent of given load conditions and currents.

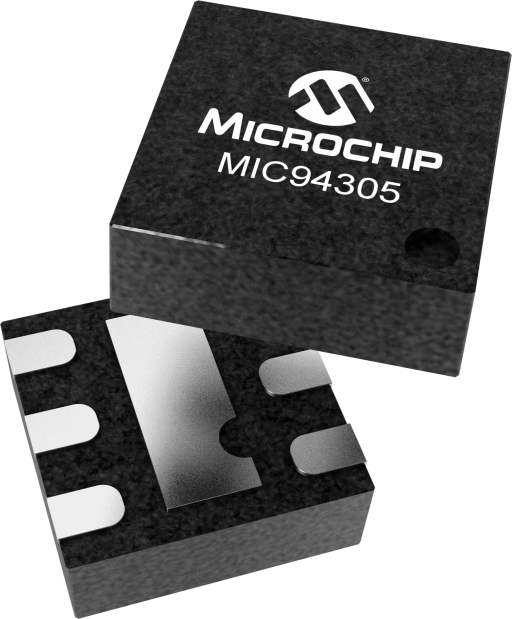

The MIC94305 is packaged in a 6-pin 1.6mm x 1.6mm Thin DFN package, and has a junction operating temperature range of -40°C to +125°C.
