Embedded Controller
Overview
- ARC-625D system controller

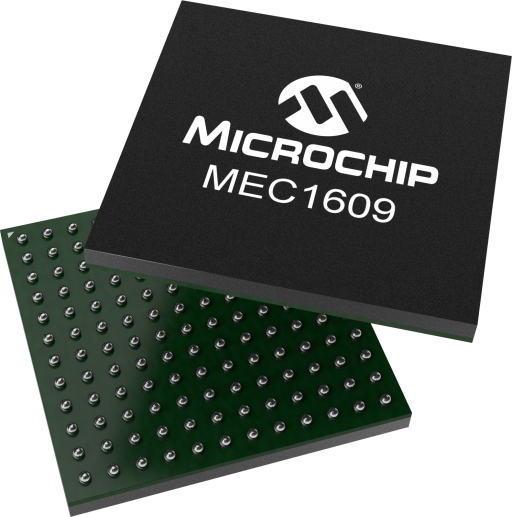

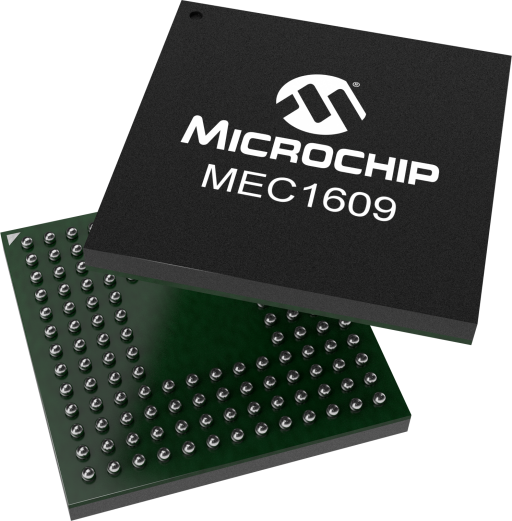

- 144 LFBGA package
- 192KB Embedded Flash Subsystem
- 16KB RAM (65B CMOS)
- 18x8 keyboard scan matrix
- 115 GPIO Pins
- 8 SMBus ports
- 16 analog to digital converter channels
- 3 LED
- 3 low-power timers
- 8 PWM
- 4 Fan Tachometer Inputs
- MCU Serial Debug Port
- Two pin serial debug port with 16C550A register interface
- JTAG interface
This product is no longer available for sale. The MEC1609/MEC1609i is the mixed signal base component of a multi-device advanced I/O controller architecture.
It incorporates a high-performance 32-bit embedded microcontroller with a 192 Kilobyte embedded Flash subsystem, 16 Kilobytes of SRAM and 2 Kilobytes of instruction cache with an Advanced High-performance Bus (AHB), memory-mapped Serial Peripheral Interface (SPI) Flash Read Controller. MEC1609 communicates with the system host using the Intel® Low Pin Count bus. It is directly powered by two individual suspend supply planes (VBAT and VTR) and senses a third runtime power plane (VCC) to provide “instant on” and system power management functions.
Family parts
MEC1609I-PZP
MEC1609I-PZV
MEC1609-PZP
MEC1609-PZV
