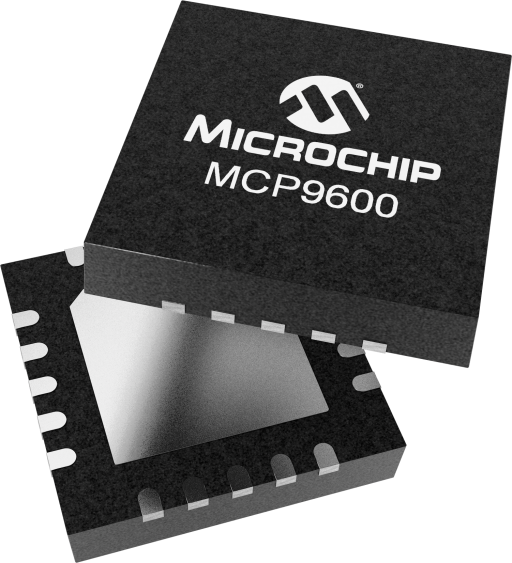

MCP9600 | Microchip Technology

Overview

  • Provides a Complete "Plug and Play" Thermocouple Conditioning Solution
  • ±0.5°C/1.5°C (Typ./Max.) Hot-Junction Temperature Measurement Accuracy
  • ±0.5°C/1.0°C (Typ./Max.) Cold-Junction Temperature Measurement Accuracy
  • I2C™ Compatible,100 kHz, supporting up to eight devices on I2C bus
  • Operating Voltage Range: 2.7V to 5.5V
  • Operating Current: 500 μA (typical)
  • Shutdown Current: 2 μA (typical)
  • Package: 20-lead MQFN
    • Typical Applications
    • Industrial process control equipment
    • Furnaces
    • Barbeque grill & smokers
    • HVAC systems
    • Ovens and cooktops
    The  MCP9600 is a fully integrated thermocouple  Electromotive Force (EMF) to degree Celsius converter with integrated Cold-Junction compensation. The MCP9600 supports 8 thermocouple types (K, J, T, N, S, E, B and R). The MCP9600 provides user-programmable registers, adding design flexibility for various temperature sensing applications. The registers allow user-selectable settings, such as low-power modes for battery-powered applications, an adjustable digital filter for fast transient temperatures and four individually programmable temperature alert outputs, which can be used to detect multiple temperature zones.
