USB Li-Ion/Li-Polymer Battery Chargers w/Safety Timers
Overview
- Linear Mode:True
- # of cells:1
- Int/Ext FET:Int
- Vin Max (V):5.5
- Vin Min (V):4.5
- Voltage Regulation Accuracy (%):0.5
- Temperature Monitor:No
- Charge Safety Timers:Yes
- Max. Thermal Regulation :Yes
- USB Compatible Charge Current Settings
- Programmable Safety Charge Timer
- Thermal Regulation
- Automatic Re-Charge
- Automatic End-of-Charge Control
- Charge Status Indicator

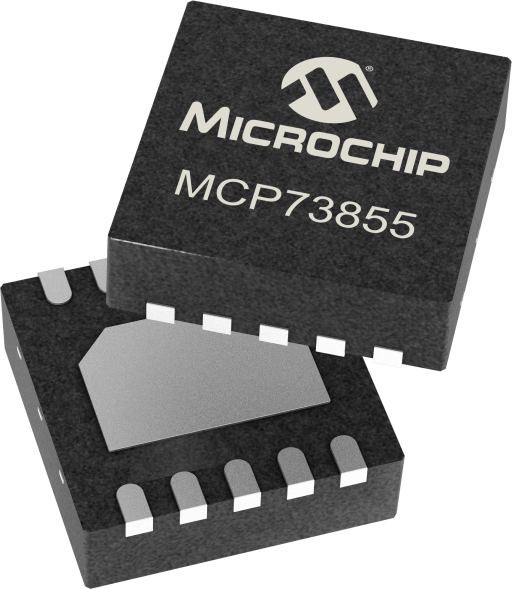

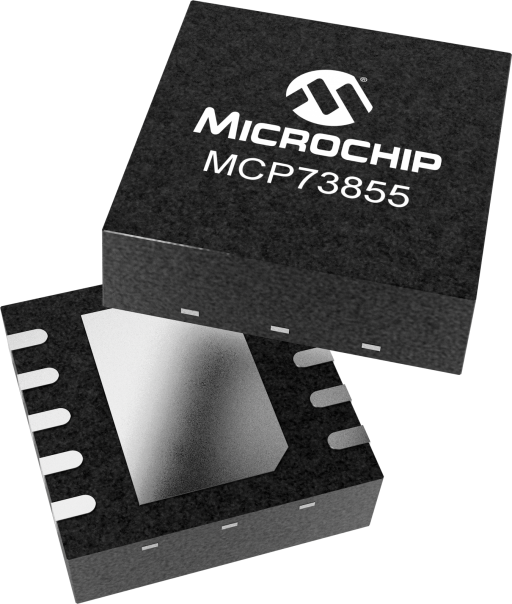

- Space-saving & High-power 3x3 DFN-10 Package
- –40°C to +85°C Ambient Operating Temperature Range
The MCP73855 is a highly advanced linear charge management controller for use in space limited, high-performance applications. The MCP73855 integrates most of the external components (pass transistor, reverse blocking protection, current sensing) and combines high-accuracy constant voltage, constant current regulation, cell preconditioning, advanced safety timers, automatic charge termination, and charge status indication in a space-saving 10-pin, 3 x 3 DFN package. The MCP73855 is designed specifically for USB applications, adhering to all the specifications governing the USB power bus.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP7382X Li-Ion Battery Charger Evaluation Board features three circuits utilizing the MCP73826, MCP73827 and MCP73828 devices. |
| Two evaluation boards are provided in the MCP73831 Evaluation Kit. |
| The MCP73855 Battery Charger Evaluation Board is set up to evaluate simple, stand-alone, linear charging of single cell Li-Ion/Li-Polymer battery packs (the battery packs are not included). |
