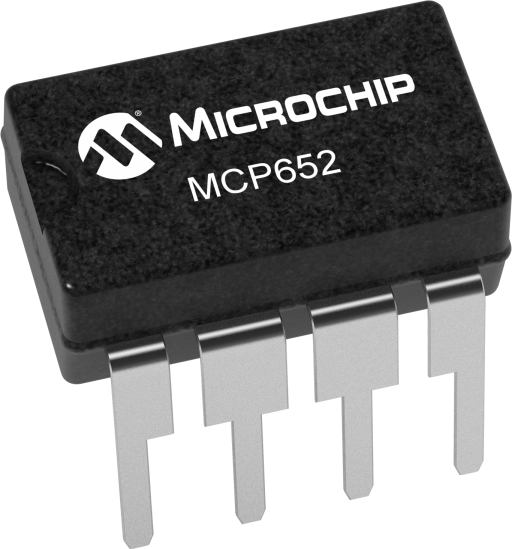

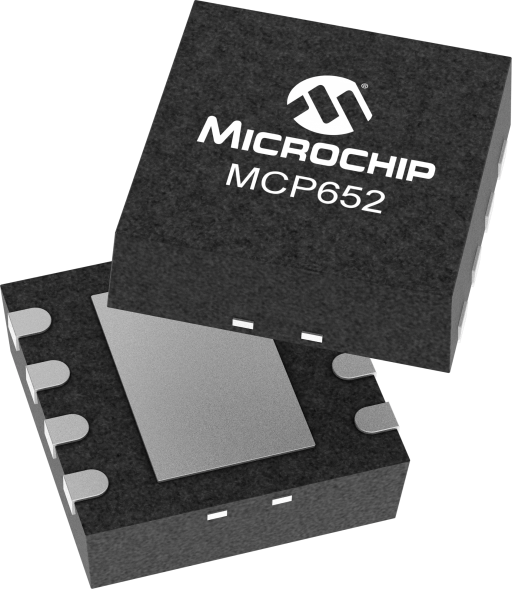

50 MHz, 200 µV Op Amps with mCal
Overview
- CMRR Min (dB):66
- Enhanced EMI Protection:No
- Gain Bandwidth Product kHz (kilohertz):50000
- Iq Max (uA):9000
- Input Voltage Noise Density (nV/rt(Hz)):7.5
- Iq Typical (µA):6000
- Operating Voltage Max V (volt):5.5
- Operating Voltage Min V (volt):2.5
- PM (deg):65
- PSRR Min (dB):61
- # Per Package:2
- Slew Rate (V/µs):30
- Vos Max µV (microvolt):200
- mCal Technology: On chip self-calibration
- 50MHz GBWP
- High Output Drive Current
- Rail-to-Rail Output
- Industry Standard Dual Amplifier Pinout
- AEC-Q100 Grade 1
The MCP65x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device
Tools And Software
Development Environment
| Tools |
|---|
 Filter Design Made Easy
FilterLab provides the flexibility to select filter types and topologies, specify component tolerances and optimize the design based on your needs. It includes downloadable schematic diagrams of the filter circuit with component values and a complete Bill of Materials (BoM) to accelerate your design.
|
