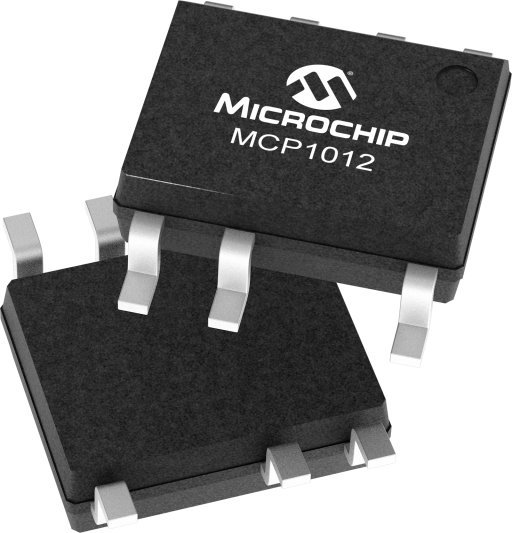

MCP1012 | Microchip Technology

Overview

  • Minimum Input Voltage (V):16V (Typical)
  • Maximum Input Voltage (V):500V Continuous/700V Transient
  • Osc Frequency Min (kHz):37
  • Osc Frequency Max (kHz):63
  • On-Board FET?:False
  • Type of On-Board FET?:NA
  • RDSon (mΩ) typ:NA
  • Overcurrent Protection:Cycle-Cycle
  • Other Protections:CCM, OVP, UVLO, OTP (Shutdown)
  • Package:7/SOIC
Read more
  • HV Startup Capability (500V Continuous, 700V Transient w/series 10K Resistor)
  • Internal Open-Loop, Peak Current-Mode (PCM) Current Regulator for Start-up (w/Few External Components) w/Integrated Robust Gate Driver
  • Current Regulator (Constant Off Time, 21us)
  • Protection Against Continuous Conduction Mode (CCM) of Operation
  • Programmable Low-Frequency Oscillator (LFO) Period to Set Startup Power
  • Able to Accept External PWM Commands from a Secondary Controller via Isolator (Various)
  • Undervoltage Lockout (UVLO) and Overvoltage Lockout (OVLO) Protections, Cycle-by-Cycle Current Limiting, Overtemperature Protection (Thermal Shutdown)
  • Sleep and Wake-up Commands, w/Low Standby Power (<15 mW)
  • Package: 7-Lead SOIC
