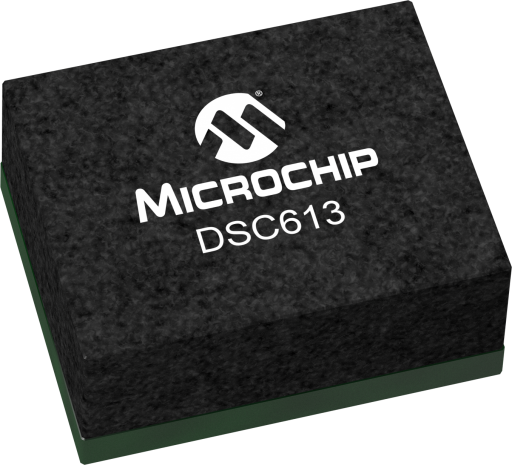

DSC613 | Microchip Technology

Overview

  • Product Type:Low Power Clock Generators
  • # of Outputs:3
  • Voltage:1.8 - 3.3
  • Pull Range (±PPM):0
  • Output Logic:LVCMOS
  • Output Frequency Min. (MHz):0.002
  • Output Frequency Max. (MHz):100
Read more
    Supports 3 LVCMOS clock outputs from 2kHz to 100MHz
    Integrated MEMS resonator eliminates the need of external crystal
    Low power consumption: 5.2mA active, 1 µA standby current
    Wide supply voltage range: 1.71V -3.63V

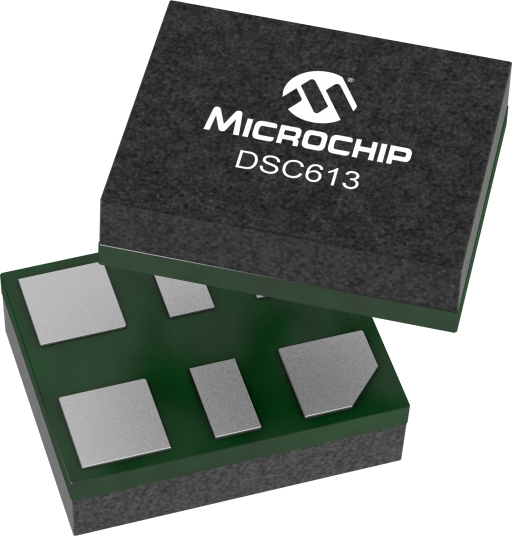

    Ultra-small package size: 1.6mm x 1.2mm, 2.0mm x 1.6mm, 2.5mm x 2.0mm
    High frequency stability: ±20ppm, ±25ppm, ±50ppm
    Supports wide temperature range: -40 to +125ºC
    Flexible control functions: Output Enable, Standby, SLEEP, Frequency Select, SpreadSpectrum Enable
    Supports 3 output drive strength and Spread Spectrum clock for EMI reduction
    Excellent shock and vibration immunity
    High reliability
    Lead free and RoHS compliant
  • Refer to DSA613 for automotive applications
