CL1 | Microchip Technology

Overview

    No parametrics available.

  • 5.0 to 90V operating range (VA-B)
  • 20mA ±5% at 45V (VA-B)
  • -8.5µA/°C typical temperature coefficient

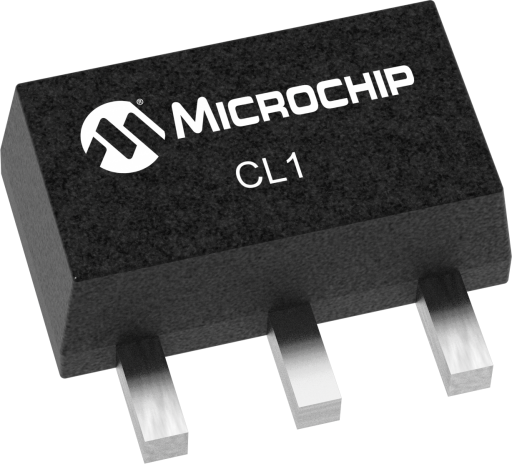

  • Available in SOT-89 package
  • No external components (two terminal device)
  • Can be paralleled for higher current
CL1 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±5% at an input voltage of 45V. No external components are required. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL1 is to drive LEDs with a constant current of 20mA. Multiple CL1s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in a SOT-89 package.
