Real-Time Platform Root of Trust Controller
Overview
- Part Family:CEC
- CPU Type:Cortex-M4F
- MaxSpeed (MHz):96
- Program Memory Size (KB):384
- SRAM (KB):384
- Temp. Range Min.:-40
- Temp. Range Max.:85
- Operation Voltage Min.(V):1.8
- Operation Voltage Max.(V):3.3
- SPI:1
- I2C:6
- UART:1
- QSPI:2
- Crypto Engine:Yes
- Internal Oscillator:32 kHz
- Pin Count:84
- Secure Boot:Yes

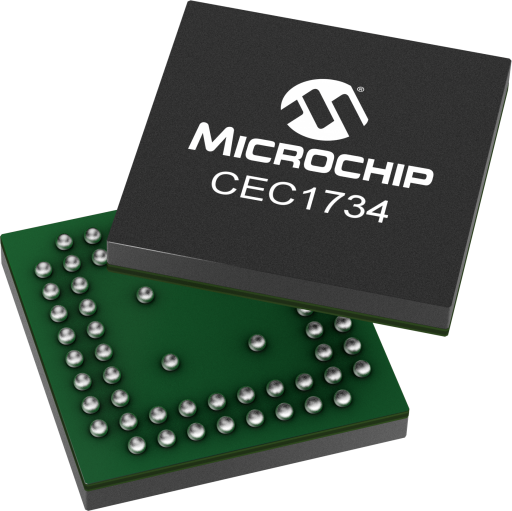

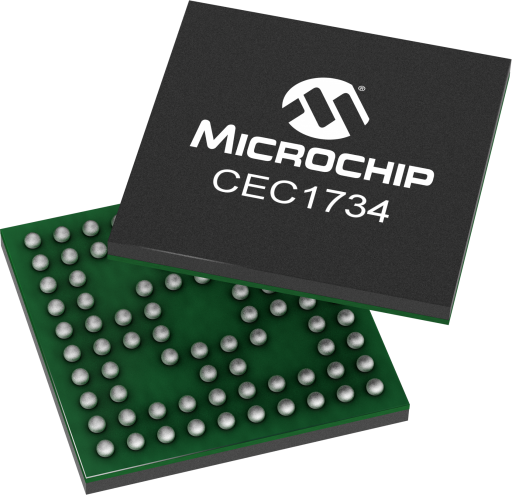

The CEC173x Trust Shield family is the Real Time Root of Trust Controller for Servers, Telecommunications, Networking and Industrials. The CEC173x is a highly-configurable, mixed-signal, advanced I/O controller. It contains a 32-bit 96MHz ARM® Cortex- M4 processor core with closely-coupled memory for optimal code execution and data access. The immutable Boot ROM, embedded in the design, is used to store the power on/boot sequence and APIs available during run time. When VTR_REG power is applied to the device, the secure boot loader API is used to download the firmware image from internal Flash storage. Programming capability for this Flash is provided by various means, thereby allowing system designers to customize the device’s behavior while maintaining the integrity of the image by cryptographic signatures.
For more information and access to technical documentation, contact your local Microchip Sales representative.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
|
| Tools |
|---|
| The EV42J24A development board can be used with generic and Trust Versions of the CEC1736 and CEC1734 devices in the 84 Pin WFBGA package.
|
