2.4 Ghz IEEE/ZigBee transceiver
Overview
Alternate products
Compare Products
(2)
- Device Description:0
- CPU:Cortex-M0+
- Package:Module
- GPIO:17
- ADC Channels:0
- ADC Resolution (Bits):0
- Concurrent Mode (STA and AP):False
- Encryption:ECC508A
- Crypto Engine - DNU:ECC508A
- Flash (KB):256
- Power Down Mode Current Consumption (uA):0
- RAM (KB):0
- RX Sensitivity (dBm):0
- SoftAP Client Count:0
- TX Output Power (dBm):0
- Frequency Range:2.4 GHz
- Single-chip ARM® Cortex®-M0+ based 32-bit Microcontroller
- Low power 2.4GHz transceiver for IEEE 802.15.4 and zigbee applications
- 256KB Flash
- Maximum Operating Frequency: 48 MHz
- 128-bit AES crypto engine
- 32-bit MAC symbol counter
- Temperature sensor
- Automatic transmission modes
- AT45DB041E 4-Mbit DataFlash
- ATECC508A CryptoAuthentication Device
- Secure Hardware-based Key Storage
- Performs High-Speed Public Key Algorithms
- NIST Standard P256 Elliptic Curve Support
- SHA-256 Hash Algorithm with HMAC Option
- Guaranteed Unique 72-bit Serial Number
- High-quality FIPS Random Number Generator (RNG)
- Intrusion Latch for External Tamper Switch
- Single 1.8V - 3.6V supply
- Radio module with a link budget of 103dBm
- FCC / ETSI compliant RF front end with harmonic filter

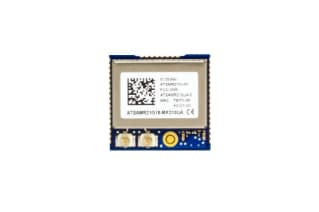

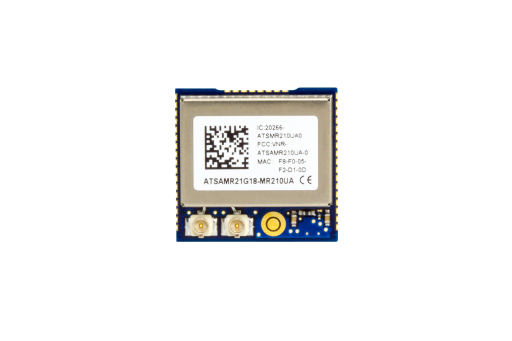

The ATSAMR21G18-MR210UA is a 19 x 20mm wireless module with a solder mount footprint. It integrates an ATSAMR21G18 IC together with a serial flash and a crypto authentication device. The ATSAMR21G18-MR210UA is based on the ATSAMR21G18A, a IEEE 802.15.4 compliant single chip that combines an ARM® Cortex®-M0+ based 32-bit microcontroller and best-in-class 2.4GHz RF transceiver. It offers an excellent RF performance, with a link budget of 103dBm while consuming 50% less active current than existing offerings.
Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The ZB SAM R21 Xplained Pro evaluation kit is an extension board to evaluate and develop using the ATSAMR21G18-MR210UA ZigBee module.
|
