1Kb Microwire (3-wire) Serial EEPROM
Overview
- Battery Backup:0
- Density:1 Kbit (x16)
- Endurance:1,000,000
- Max. Clock Freq.:2 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):1.8
- Page Size (Bytes):16
- Write Protected:1
- Data Retention:0
- 64 x 16 Organization (1 Kbit)
- Industry Standard Microwire Serial I/O
- Up to 2 MHz clock compatibility
- Self-Timed Erase and Write Cycles (5 ms max.)
- Read current 0.5 mA (Typ), 2.0 mA (Max)
- Write current 0.5 mA (Typ),2.0 mA (Max)
- Standby current 10.0 uA (Typ), 15.0 uA (Max)
- Software Write-Protection
- More than 1 million erase/write cycles
- Data retention > 100 years
- Temperature Range from -40°C to 85°C
- Factory Programming Available
- Available in 8-pin SOIC (150 mil), 8-pin TSSOP, and 8-pin PDIP packages

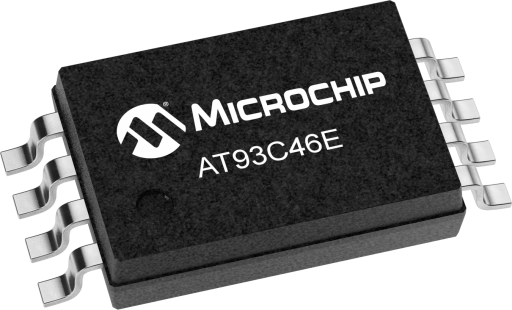

The Microchip AT93C46E is a 1 Kb Microwire (3-wire) Serial
EEPROM organized as 64 x 16. The device is optimized for use in consumer and
industrial applications where reliable and dependable nonvolatile memory
storage is essential. The EEPROM is available in a variety of space-saving
packaging options.
