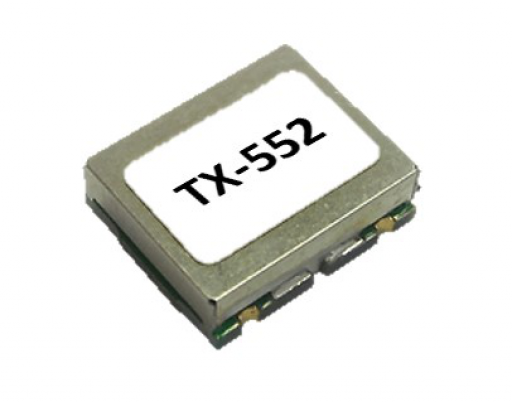

9.6x11.4mm Dual Crystal SMD TCXO
Overview
- Dimensions:9x11mm
- Serial Interface:N/A
- Supply Voltage:5.0, 3.3
- TempRange Max °C (degrees Celsius):-40 to +105
- TempRange Min °C (degrees Celsius):-40 to +85
The TX–552 Low g–Sensitivity dual crystal temperature controlled crystal oscillator (TCXO) has an expanded frequency range of 8MHz to 100MHz and a phase noise floor of −160dBc/Hz. Packaged in a 11.4 x 9.6 mm footprint allowing designers to use higher frequencies without the need of multiplication preventing degradation of phase noise performance.
