64-Mbit (x16) Radiation Tolerant Flash
Overview
- Main Characteristics
- Organized as 4M x16
- Fast Read and Page Read Access Times: 90 ns Read access time / 25 ns Page Read access times / 4-Word Page Read buffer
- Latched Address and Data
- Fast Erase Times: Sector-Erase Time: 18 ms (typical) / Block-Erase Time: 18 ms (typical) / Chip-Erase Time: 40 ms (typical)
- Erase-Suspend/-Resume Capabilities
- Fast Word and Write-Buffer ProgrammingTimes: Word-Program Time: 7 µs (typical) / Write Buffer Programming Time: 1.75 µs Word(typical) / 16-Word Write Buffer
- Automatic Write Timing : Internal VPP Generation
- End-of-Write Detection : Toggle Bits / Data# Polling / RY/BY# Output
- Hardware Reset Pin (RST#)
- CMOS I/O Compatibility
- JEDEC Standard: Flash EEPROM Pinouts and command sets
- CFI Compliant
- Superior Reliability
- Endurance : 10000 cycles minimum
- Greater than 20 years data retention
- Low Power Consumption (typical values at 5 MHz) : Active Current: 4 mA (typical) / Standby Current: 3 µA (typical) / Auto Low Power Mode: 3 µA (typical)
- Security-ID Feature : 256 Word, user One-Time-Programmable / 128-bit Unique ID
- Protection and Security Features
- Hardware Boot Block Protection/WP# Input Pin
- Uniform (32 KWord) and Non-Uniform (8 KWord) options available
- User-controlled individual block (32 KWord) protection, using software only methods
- Password protection
- Voltage
- Single Voltage Read and Write Operations 3.0-3.6V
- Radiation Performances
- No Single Event Latch-up Below a LET Threshold of 78 MeV.cm2 /mg @125°C
- Single Event Upset (SEU) Rate < 5.18 x 10-22 upsets/bit-day
- Total ionizing dose : Unbiased – 75 krad (Si)(Read)/50 krad (Si)(Write) | Biased – 50 krad (Si) (Read)/50 krad (Si) (Write)
- Packages

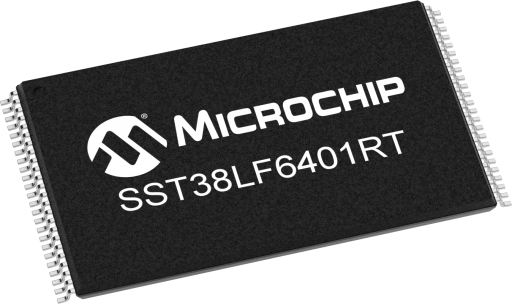

- 48-lead TSOP

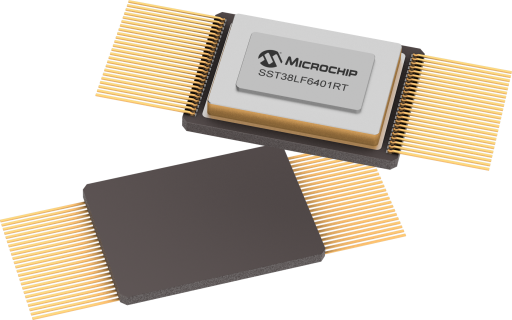

- 48-lead Ceramic dual flat pack
The SST38LF6401RT is a 4M x16, Radiation Tolerant device manufactured with Microchip’s proprietary, high-performance CMOS Super-Flash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. This process achieves an unbiased 75Krad (Si) of radiation tolerance. The SST38LF6401RT writes (Program or Erase) with a 3.0 to 3.6V power supply and conforms to JEDEC standard pinouts and command sets for x16 flash memories.
