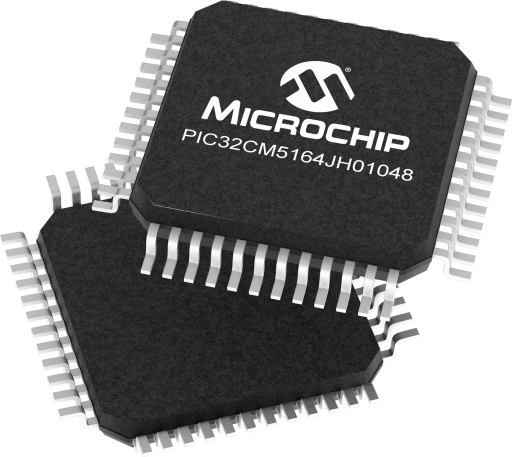

PIC32CM5164JH01048 | Microchip Technology

Overview

  • CPU:Cortex-M0+
  • CPU Speed (MHz):48
  • Operation Voltage Max.(V):5.5
  • Operation Voltage Min.(V):2.7
  • Internal Oscillator:32khz, 32Khz ULP, 48Mhz
  • Part Family:PIC32CM JH
  • QSPI:0
  • Secure Subsystem:No
  • Program Memory Size (KB):512
  • Pincount:48
  • Crypto Engine:No
  • TempRange Min:-40
  • TempRange Max:125
Read more
    Processor:
  • Arm® Cortex®-M0+
  • 48 MHz (2.46 CoreMark/MHz)
  • Single-cycle hardware multiplier
  • Nested Vector Interrupt Controller (NVIC)
  • Memory Protection Unit (MPU)
    Operating Voltage Range:
  • 2.7-5.5V
    Memory:
  • Up to 512 KB Flash
  • Up to 64 KB SRAM
  • 8 KB Data Flash Read While Write (RWW) section
    System:
  • 12-channel Direct Memory Access Controller (DMAC)
  • 12-channel Event System
  • 16 external interrupts (HW debounce) + 1 non-maskable interrupt
  • Hardware Divide and Square Root Accelerator (DIVAS)
  • Position Decoder (PDEC) working in quadrature, Hall or Counter mode
    Security and Safety:
  • Size-configurable immutable boot section in Flash for Secure Boot
  • ECC with fault injection for Flash, Data Flash and SRAM
  • CRC32 computation on SRAM, Flash and Data Flash sections through the Device Service Unit (DSU)
  • Memory Built-In Self-Test (MBIST) of SRAM
  • Integrity Check Module (ICM) to monitor memories based on secure hash algorithm (SHA1, SHA224, SHA256), DMA assisted
  • Clock failure Detection
    Enhanced Peripheral Touch Controller (PTC):
  • Driven Shield Plus for moisture tolerance and noise immunity
  • Up to 256 (16 x 16) mutual-capacitance channels
  • Up to 32 self-capacitance channels with Driven Shield Plus
  • Supports wake-up on touch from Standby Sleep mode
    Advanced Analog:
  • Dual 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
  • 10-bit, 350 KSPS Digital-to-Analog Converter (DAC)
  • Analog Comparators (AC) with window compare function
    Additional Peripherals and Communications Interfaces:
  • Up to 2 Controller Area Network (CAN) Interfaces with support for CAN-FD
  • USART, I2C, LIN Host/Client, SPI, RS-485, PMBusTM, SMBusTM
  • 16-bit & 24-bit Timer Counter for Control (TCC)
  • 16-bit Timer Counters (TC)
  • Watchdog Timer (WDT) with Window Mode
  • 32-bit Real Time Counter (RTC) with Clock/Calendar Functions
    Development Support:
  • MPLAB X IDE
  • MPLAB Harmony v3 & MCC
  • Two-pin Serial Wire Debug (SWD) programming and debugging interface
  • Micro Trace Buffer (MTB) for Instruction Trace in SRAM
