Overview
Alternate products
Compare Products
(2)
- CPU Type:16-bit PIC MCU
- CPU Speed Max MHz (megahertz):40
- Program Memory Size (KB):64
- Multiple Flash Panels:False
- Direct Memory Access (DMA) Channels:8
- Temp. Range Min.(C°):-40
- Temp. Range Max.(C°):125
- Operation Voltage Min.(V):3
- Operation Voltage Max.(V):3.6
- Pin Count:100
- Low Power:No
- Number of Comparators:0
- ADC Modules:1
- ADC Channels:32
- ADC Resolution Max:12
- ADC Sampling Rate (ksps):500
- Number of DACs:0
- DAC outputs:0
- Max DAC Resolution (bits):0
- Hardware RTCC:No
- Motor Control PWM Channels:0
- SMPS PWM Channels:0
- Number of PWM Time Bases:2
- Output Compare Channels:8
- USB Interface:None
- Number of CAN Modules:1
- Type of CAN module Max:CAN
- Crypto Engine:No
- Quadrature Encoder Interface (QEI):0
- Segment LCD:0
- LCD/Graphics Interface:No
- Configurable Logic Cell Modules (CLC /CCL):0
- Peripheral Pin Select (PPS)/Pin Muxing:No
- Operating Conditions
- Up to 40 MIPS operation
- 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
- High-Efficiency PIC24H core
- Code-efficient (C and Assembly) architecture
- Single-cycle mixed-sign MUL plus hardware divide
- 16 x 16 multiply operations
- 32/16 and 16/16 divide operations
- Up to ±16-bit data shifts
- Clock Management
- ±2% internal oscillator
- Programmable PLLs and oscillator clock sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer (WDT)
- Fast wake-up and start-up
- Power Management
- On-chip 2.5V voltage regulator
- Low-power management modes (Sleep, Idle, Doze)
- Integrated Power-on Reset and Brown-out Reset
- 1.35 mA/MHz dynamic current (typical)
- 55 μA IPD current (typical) Advanced
- Analog Features
- Two ADC modules: Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 Ksps with one S&H,
- 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices
- Flexible and independent ADC trigger sources
- Timers/Output Compare/Input Capture
- Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers
- Eight Output Compare modules configurable as timers/counters
- Eight Input Capture modules
- Communication Interfaces
- Two UART modules (10 Mbps) - With support for LIN 2.0 protocols and IrDA®
- Two 4-wire SPI modules (15 Mbps)
- Up to two I2C™ modules (up to 1 Mbaud) with SM Bus support
- Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
- Data Converter Interface (DCI) module with I2S codec support
- Input/Output
- Sink/Source up to 10 mA (pin specific) for standard VOH/VOL, up to 16 mA (pin specific) for nonstandard VOH1
- 5V-tolerant pins
- Selectable open drain, pull-ups, and pull-downs
- Up to 5 mA overvoltage clamp current
- External interrupts on all I/O pins
- Debugger Development Support
- In-circuit and in-application programming
- Two programs and two complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Trace and run-time watch
The PIC24H 16-bit device family employs a powerful 16-bit
architecture, ideal for applications that rely on high-speed, repetitive
computations, as well as control. The devices are pin compatible with the
dsPIC33F family of devices, and share a very high degree of compatibility with
the dsPIC30F family devices. This allows seamless migration options from/to
PIC24F, dsPIC30F and dsPIC33F devices.
Tools And Software
Development Environment
Emulator and Debuggers
Programmers
Library and Firmware
| Tools |
|---|
 MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
|
| Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development.
|
| MPLAB® Extensions for Microsoft® Visual Studio Code® (VS Code®) is a collection of VS Code extensions that combines the power of the MPLAB development ecosystem with the versatility of VS Code. Whether you are a new or existing client, MPLAB Extensions for VS Code provides you with a seamless, flexible and efficient development environment with comprehensive support for designs based on our devices.
|
| Tools |
|---|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC® , AVR, SAM and CEC flash microcontrollers and microprocessors.
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| Tools |
|---|
| The MPLAB. PM3 Universal Device Programmer operates with a PC or as a stand-alone unit, and programs Microchips entire line of PICmicro.devices as well as the latest dsPIC30F DSC devices.
|
| The MPLAB® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs).
|
| The MPLAB® ICD 5 In-Circuit Debugger/Programmer offers advanced connectivity and power options for developers of designs based on PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB ICE 4 in-circuit emulator system boosts productivity with feature-rich programming and debugging for PIC®, AVR® and SAM devices and dsPIC® Digital Signal Controllers (DSCs).
|
| The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
["developmentenvironment","Development Environment"] ,
["emulators","Emulator and Debuggers"] ,
["demoevaluationboards","Demo & Evaluation Boards"] ,
["programmerrelations","Programmers"] ,
["thirdpartytools","3rd Party Tools"] ,
["legacy","Legacy"] ,
["softwarelibraries","Library and Firmware"]
referencedesigns,Reference Designs:
codeexamples,Code Examples:
ibisboarddesignfiles,Board Design Files:
Purchase
Loading

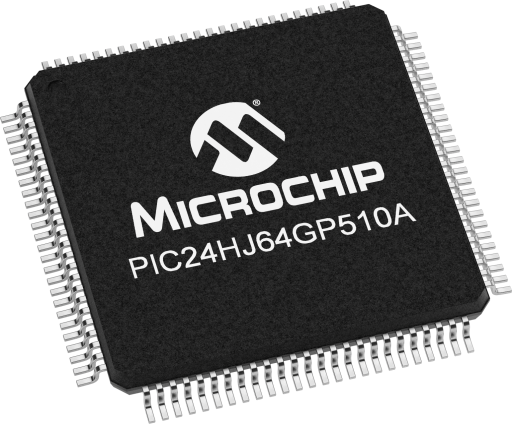

Catalog Parts for PIC24HJ64GP510A
All parts
|
|
|
|
|
|
|
|||
|---|---|---|---|---|---|---|---|---|
|
PIC24HJ64GP510A-I/PF
| 100 | TQFP | -40C to +85C | TRAY | $5.96 |
In Stock Now
|
View Samples | |
 16 Bit MCU 100LD 40MIPS 64KB FLASH Country of Origin (COO):
In Stock Now:
1,018
Order now, up to 28 estimated to ship on Order now, up to 990 estimated to ship on Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $8.21 $7.54 $6.82 Estimated Large-Quantity Pricing 1000-4999 5000 + *$6.28 *$5.96 |
||||||||
|
PIC24HJ64GP510AT-I/PF
| 100 | TQFP | -40C to +85C | T/R | $6.02 |
Available To Order
|
Please select a different part available in this familyView Samples |
|
|
16 Bit MCU 100LD 40MIPS 64KB FLASH Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $8.29 $7.59 $6.87 Estimated Large-Quantity Pricing 1000-4999 5000 + *$6.32 *$6.02 |
||||||||
|
PIC24HJ64GP510A-I/PT
| 100 | TQFP | -40C to +85C | TRAY | $5.50 |
In Stock Now
|
View Samples | |
|
16 Bit MCU 100LD 40MIPS 64KB FLASH Country of Origin (COO):
In Stock Now:
71
Order now, up to 71 estimated to ship on Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $7.57 $6.93 $6.28 Estimated Large-Quantity Pricing 1000-4999 5000 + *$5.77 *$5.50 |
||||||||
|
PIC24HJ64GP510AT-I/PT
| 100 | TQFP | -40C to +85C | T/R | $5.55 |
Available To Order
|
Please select a different part available in this familyView Samples |
|
|
16 Bit MCU 100LD 40MIPS 64KB FLASH Country of Origin (COO):
Available To Order
Place your order today and we can ship on Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $7.63 $7.00 $6.33 Estimated Large-Quantity Pricing 1000-4999 5000 + *$5.84 *$5.55 |
||||||||
|
PIC24HJ64GP510A-E/PT
| 100 | TQFP | -40C to +125C | TRAY | $6.05 |
In Stock Now
|
View Samples | |
|
16 Bit MCU 100LD 40MIPS 64KB FLASH Country of Origin (COO):
In Stock Now:
913
Order now, up to 80 estimated to ship on Order now, up to 833 estimated to ship on Lead-time stated here is a snapshot in time. Timing of order, volume and other variables will impact actual delivery. Microchip is committed to continue to keep or improve our commit dates to the best of our ability during these times of very high demand.Lead Time For Additional Quantities Additional quantities estimated to ship by Standard Pricing: Buy Now Price, Any Quantity 1-24 25-99 100 + $8.33 $7.63 $6.91 Estimated Large-Quantity Pricing 1000-4999 5000 + *$6.36 *$6.05 |
||||||||
