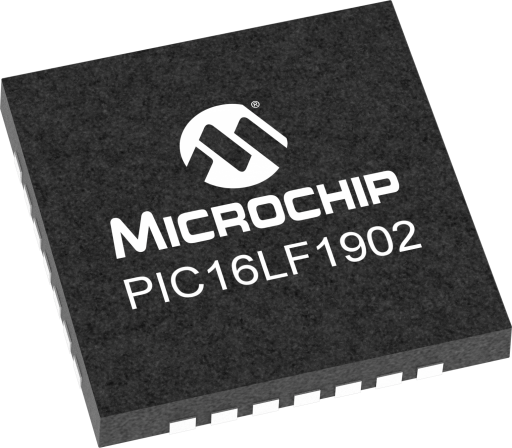

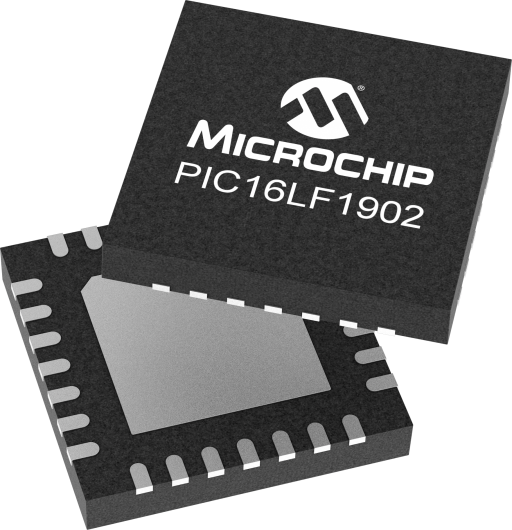

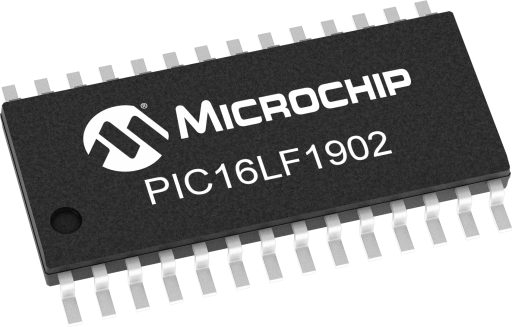

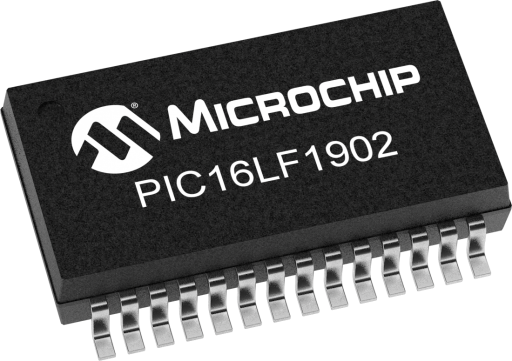

Overview
- Program Memory Size (KB):3.5
- RAM:128
- Data EEPROM (bytes):0
- Pin Count:28
- Operation Voltage Max.(V):3.6
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:10
- ADC Channels:11
- Zero Cross Detect:False
- Number of Comparators:0
- SPI:0
- I2C:0
- Stand alone PWM:0
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
- Flash Program Memory with self read/write capability
- 72 LCD segment drive support
- Internal 16MHz oscillator
- 11 Channel 10b ADC with Voltage Reference
- Integrated Temperature Indicator
- 25mA Source/Sink current I/O
- One 8-bit Timers (TMR0)
- One 16-bit Timer (TMR1)
- Extended Watchdog Timer (EWDT)
- Brown-Out Reset (BOR)
- In Circuit Serial Programming (ICSP)
- Operating Voltage (1.8V – 3.6V)
- nanoWatt XLP Technology
Debug Support:
• External debug header (AC244048) is needed for debug support
• Debug and Programming support is available via PICkit™ 3, and MPLAB® ICD 3
