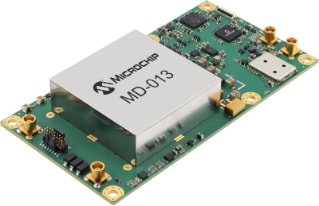

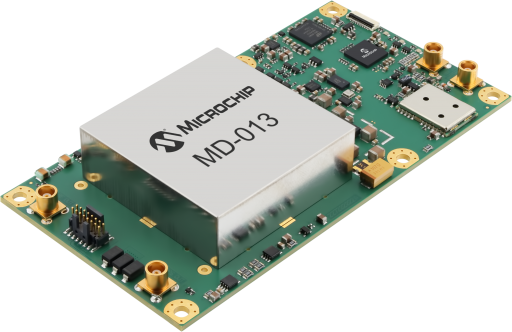

60x114mm GNSS / PPS / HCMOS / Sinewave Disciplined Module
Overview
- Dimensions:60x114mm
- Holdover:1.5
- Holdover Time [hours]:24
- Phase Noise 100kHz (dbc/Hz):-145
- PhaseNoise10kHz [dBc/Hz]:-145
- Power at 25C (Typ) (Watt):9
- Serial Interface:VSIP2
- Supply Voltage:12.0
- TempRange Max °C (degrees Celsius):-40 to +85
The MD-013 is a Microchip standard platform module that provides 1 pps TTL,10 MHz sine wave and 10 MHz square wave outputs that are disciplined to an embedded 72 channel GNSS Receiver (with upgrade options L1 L2 L5 for dual-band multi-GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou). In addition, an external reference input can override the internal receiver as the reference. Internal to the module is a Microchip digitally corrected OCXO.
