14-Bit, 500kSPS, Single Channel ADC
Overview
Alternate products
Compare Products
(2)
- Resolution:14
- Sample Rate kSPS Max:500
- Input Channels Differential:0
- SNRtyp:83.6
- SFDR typ:99.3
- ENOB:13.6
- INL Typ LSB:0.55
- 14-bit resolution
- Single-Ended input
- SPI interface
- ±0.25 LSB Typical DNL
- ±0.55 LSB Typical INL
- 500 ksps sample rate
- -40 to +125°C temperature range
- Recommended for Automotive Designs (Q100)

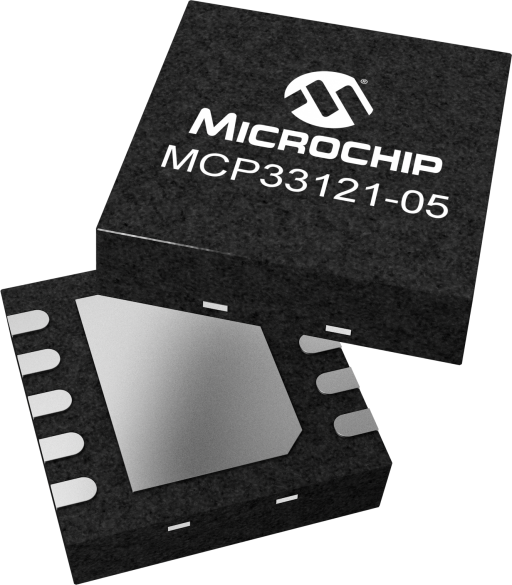

The MCP33121-05 14-bit
Analog-to-Digital Converter (ADC) features a full differential input, high
performance and low power consumption in a small package, making it ideal for
battery powered systems and remote data acquisition applications. The MCP33121-05 features a successive approximation register (SAR) architecture and an
industry-standard SPI serial interface, allowing 14-bit ADC capability to be
added to any PIC® microcontroller. The MCP33121-05 features 500k samples/second,
1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical
active), and is available in 10-pin MSOP and 10-pin TDFN packages. Applications
for the MCP33121-05 include high-precision data acquisition, medical
instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power
supply applications.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP331X1D-XX Evaluation Board (ADM00873) can be used to evaluate the performance of the MCP331x1x-xx SAR ADC device family.
|
