EtherCAT Device with integrated Cortex M4F Microcontroller
Overview
Alternate products
Compare Products
(4)
- Ethernet Bandwidth:100BASE-TX/
- MAC:Yes
- PHY:Yes
- FMMUs:8
- SYNC manager:8
- Distributed clocks:64
- DPRAM:8
- Op. Voltage (V):3.300
- Ethernet Ports:Internal-2
- Temp. Range Min. (°C):-40
- Temp. Range Max. (°C):105
- Fiber:No
- EtherCAT
- EtherCAT device controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers
- Dual Integrated EtherCAT PHYs (EtherCAT IN / EtherCAT OUT) with HP Auto-MDIX
- Option to operate without ESI EEPROM

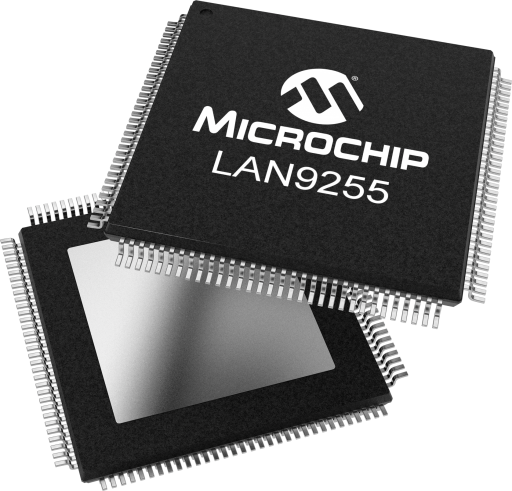

Microchip’s LAN9255 is an EtherCAT device controller (ESC) with Cortex M4F Microcontroller.
EtherCAT functionality is delivered together with dual PHYs which each provide a full-duplex 100BASE-TX transceiver and support 100Mbps (100BASE-TX) operation. The LAN9255 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions. The 3 port EtherCAT device controller provides 8K bytes of Dual Port memory (DPRAM), 8 SyncManagers, 8 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock.
A CortexM4F controller provides a suite of peripherals including Ethernet MAC. Customers can realize multiprotocol designs in the knowledge all items are supported within the MPLABX Harmony Framework
The LAN9255 is available in commercial, industrial and extended industrial temperature ranges and is packaged in 128 pin TQFP.
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
