Simple 90V, 20mA, Temperature Compensated, Constant-Current LED Driver IC
Overview
- +Vin min (V):5.0
- +Vin max (V):90
- Vout min (V):5.0
- Vout max (V):90
- Output Current (mA):20
- Dimming:External FET
- Parallelable:Yes
- Package:TO-252, TO-92, SOT-89
- Features: --
- 5.0 to 90V operating range (VA-B)
- 20mA ±10% at 5.0 - 90V
- 0.01%/°C typical temperature coefficient

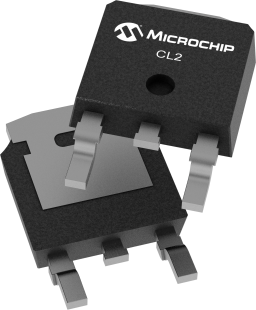

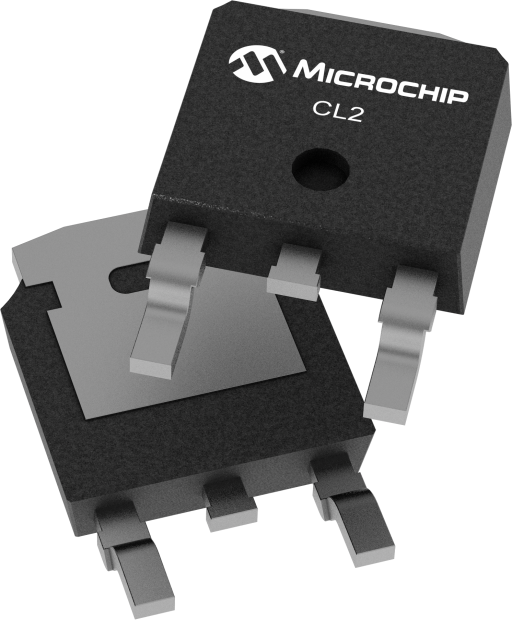

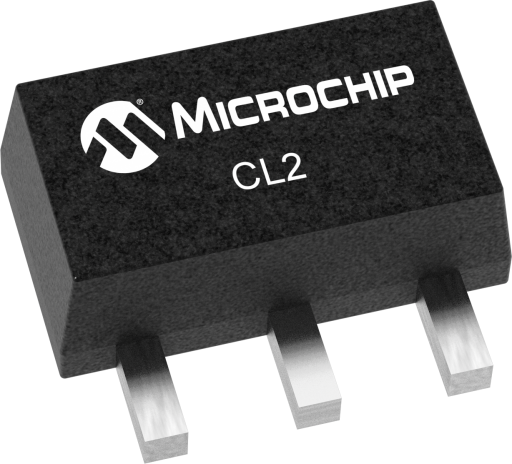

- Available in TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages
- Can be paralleled for higher current
CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5.0 - 90V. The device can be used as a two terminal constant current source or constant current sink.
A typical application for the CL2 is to drive LEDs with a constant current of 20mA. Multiple CL2s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages.
