Overview
- Power Options:ULTRA-LOW
- Operating Voltage Min (V):1.8
- Inputs and I/O Pins:44
- Registers:32
- Macrocells:32
- tPD Min:5ns/7ns

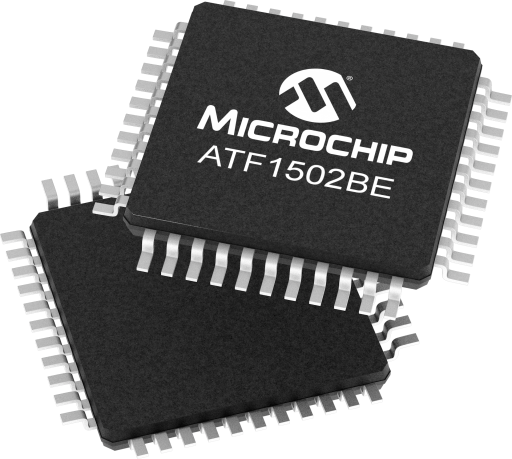

A high-performance, high-density, complex programmable logic device (CPLD) that uses Atmel's proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. Enhanced routing switch matrices increase usable gate count and the odds of successful pin-locked design modifications.
