Overview
- Density:64 Kbit
- Endurance:1,000,000
- Max. Clock Freq.:1 MHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):1.6
- Page Size (Bytes):32
- Write Protect Scheme:Software Configurable
- Data Retention:200

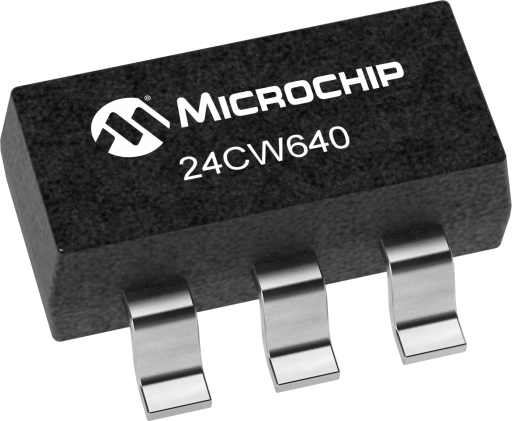

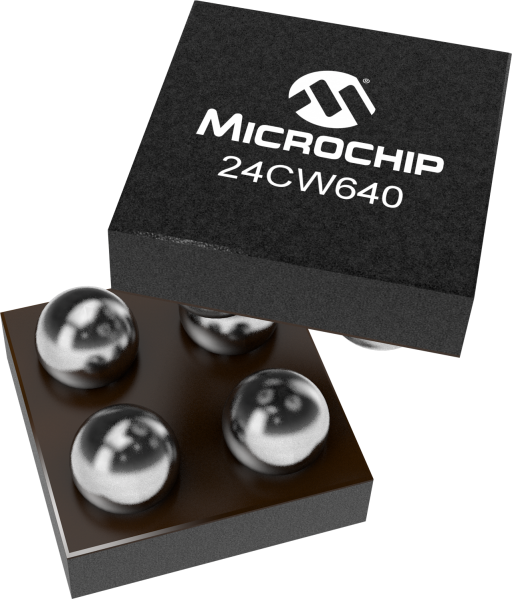

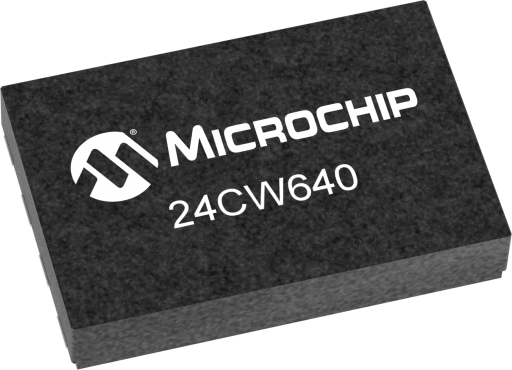

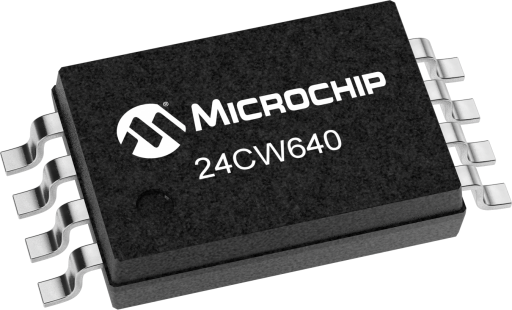

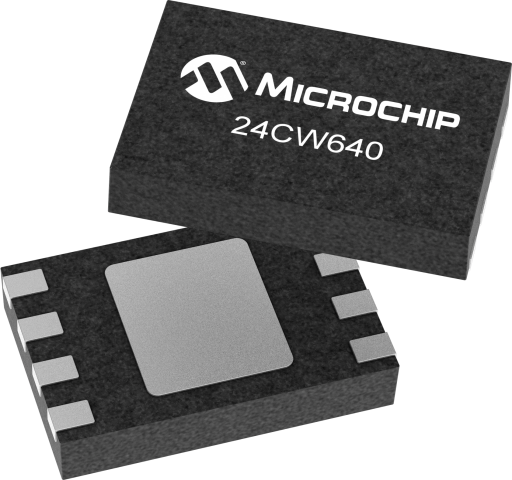

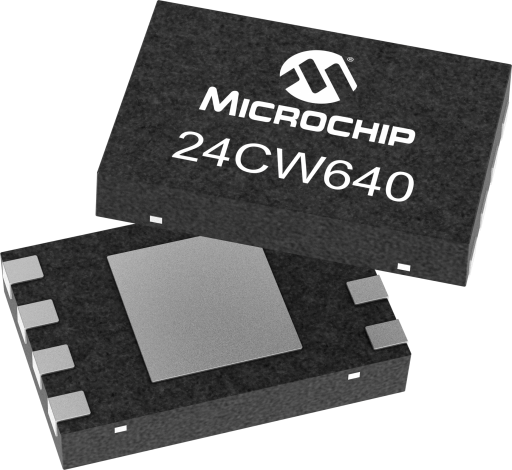

The 24CW64X provide 64Kbits of Serial EEPROM utilizing an I2C (2-wire) serial interface. It is organized as 8192 bytes of 8 bits each (8 Kbytes). The 24CW Series is optimized for use in consumer and industrial applications, where reliable and dependable nonvolatile memory storage is essential. The 24CW Series allows up to eight devices to share a common I2C (2-wire) bus and is capable of operation across a broad voltage range (1.6V to 5.5V).
The 24CW Series contains a pair of programmable Configuration registers which allow certain device behaviors to be modified. These registers are the Write Protection Register and the Hardware Address Register.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 The Memory Xplorer evaluation platform makes it easier to choose a device by allowing you to visually evaluate our I2C, SPI and single-wire EEPROM devices, boosting your confidence in the product you selected. Memory Xplorer provides the ability to quickly test device-specific features and evaluate variable functionality like voltage and frequency.
|
| Tools |
|---|
| The Serial Memory I2C Evaluation Kit (DM160237) is an easy-to-use interactive user tool that demonstrates the best-in-class features, functionality and low-power operation of Microchip I2C Serial EEPROM devices.
|
