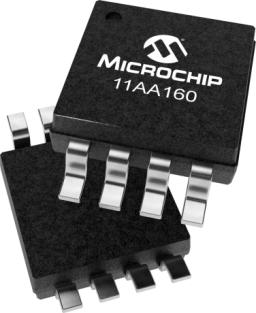

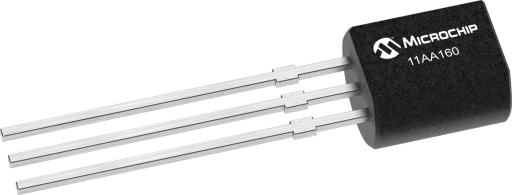

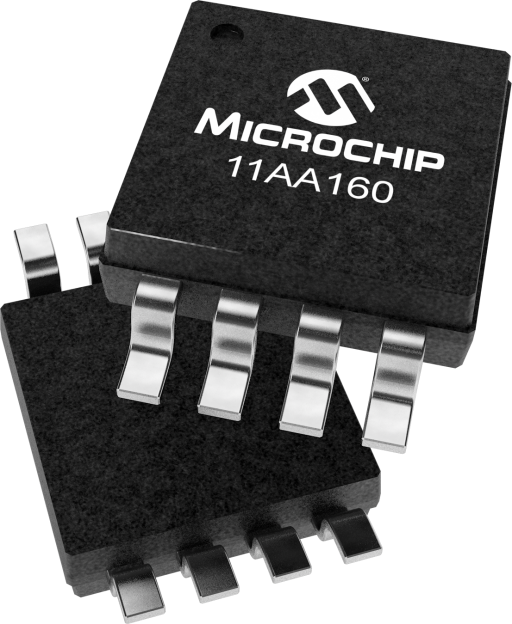

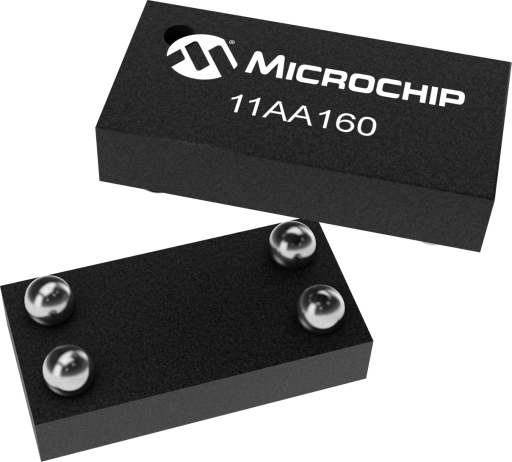

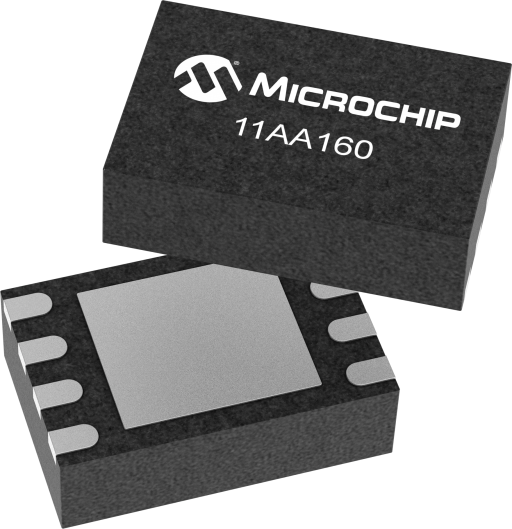

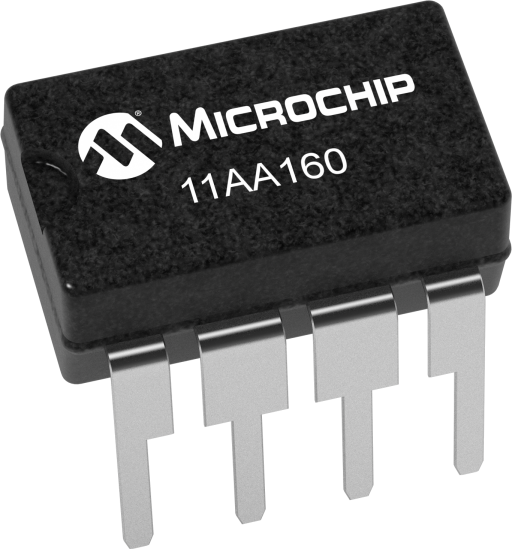

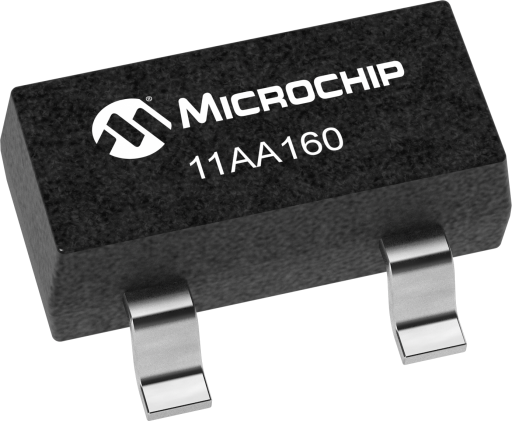

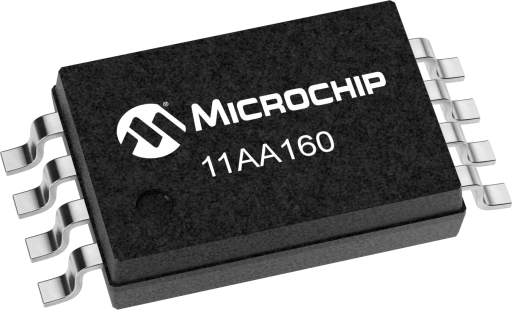

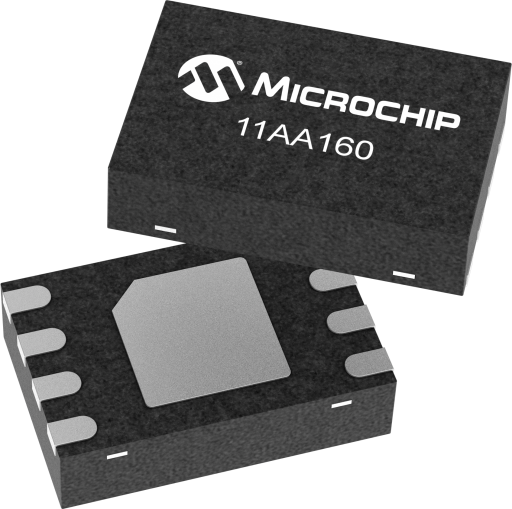

1.8V UNI/O® Serial EEPROM with 16Kb of memory
Overview
- Battery Backup:0
- Density:16 Kbit
- Endurance:1,000,000
- Max. Clock Freq.:100 kHz
- Operating Voltage Max (V):5.5
- Operating Voltage Min (V):1.8
- Page Size (Bytes):16
- Write Protect Scheme:Quarter, Half, Whole Array
- Write Protected:1
- Data Retention:0
- Single I/O Interface
- 16 Kbit Memory Densities
- 1.8-5.5V Operating Voltage
- 10-100 kHz Operating Frequency
- 1 Million Erase/Write Cycles
- Software Write Protect: ¼, ½, or Full Array
- Status Register
- Set/Erase entire memory with a single command
- ESD Protection > 4kV
- Noise Filtration Circuitry
Need more microcontroller pins for new features? Want to stay with a low pin-count microcontroller rather than switching to a more expensive one? Microchip’s UNI/O® bus serial EEPROM uses only one connection to the host microcontroller. This compares to two or three pins for I2C and three to six pins for Microwire or SPI buses. This proprietary bus offers advanced features like a status register and write protection on demand, along with all I/O, memory array and command functions through a single pin.
