E-Scooter Reference Design Components

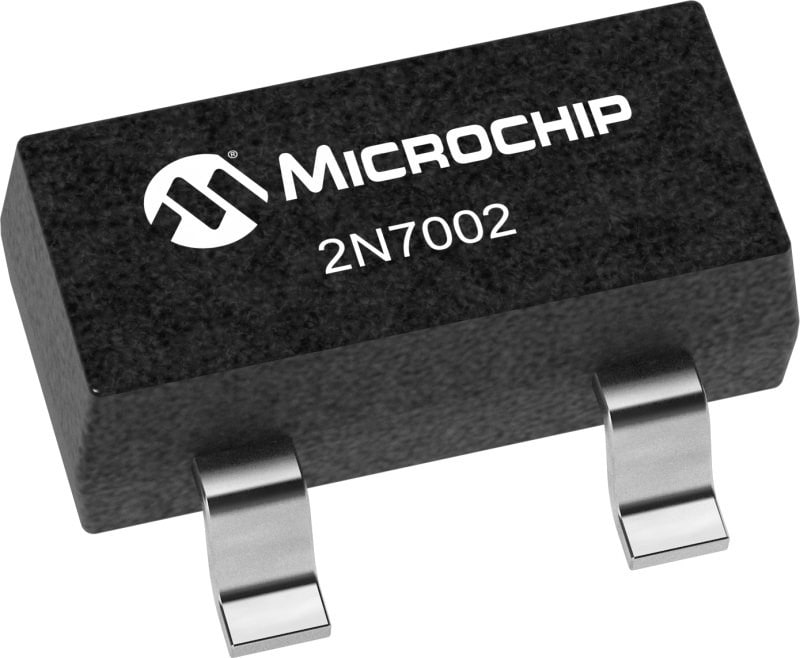

2N7002-G
60V, 7.5 Ohm, N-Channel, Enhancement-Mode, Vertical DMOS
The 2N7002 is an enhancement-mode (normally-off) transistor that utilizes a vertical DMOS structure and well-proven silicon-gate manufacturing process.

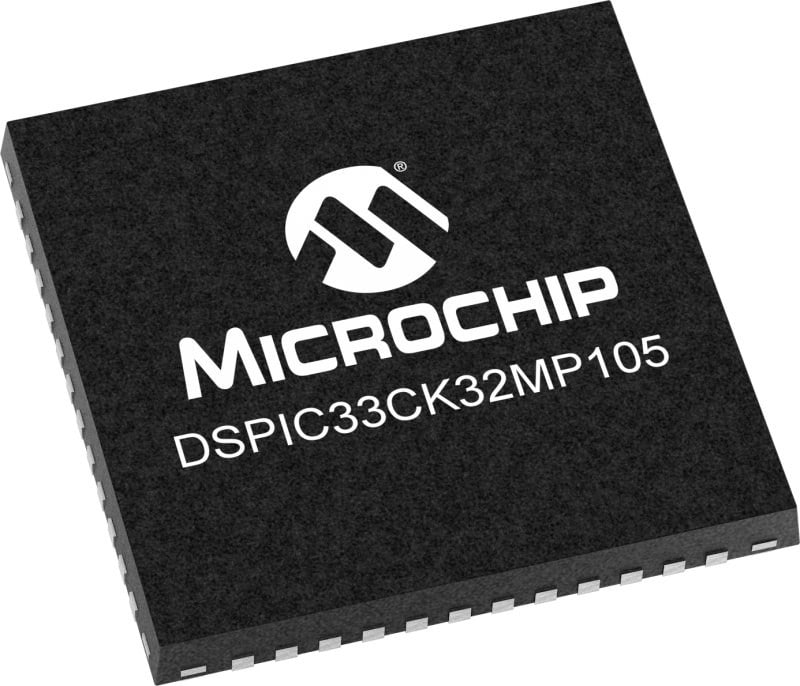

DSPIC33CK32MP105-I/PT
100 MHz High-Performance DSC
Our dsPIC33CK64MP10x family of digital signal controllers (DSCs) features a 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals.

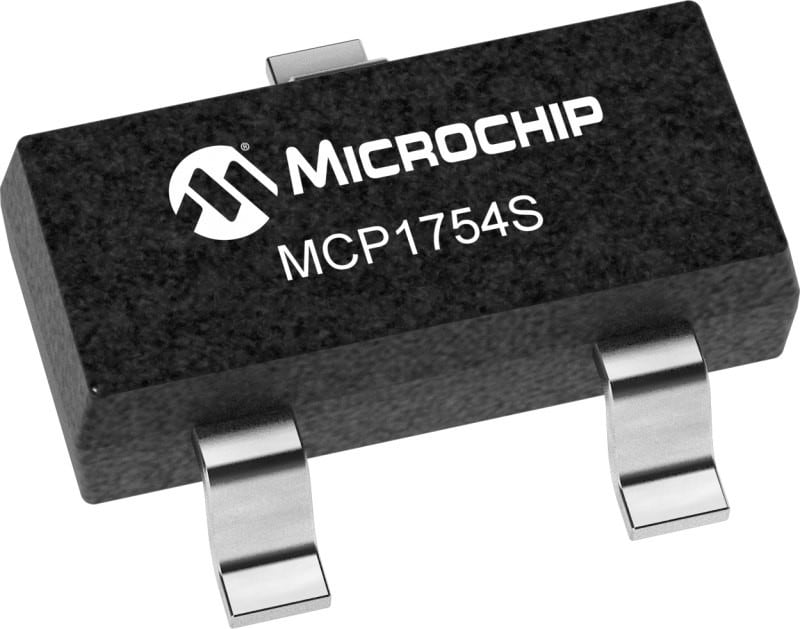

MCP1754ST-5002E/CB
16V, High PSRR, 150 mA LDO, Vout = 5.0V
The MCP1754/MCP1754S is a 16 volt, high PSRR voltage regulator with short-circuit current foldback.

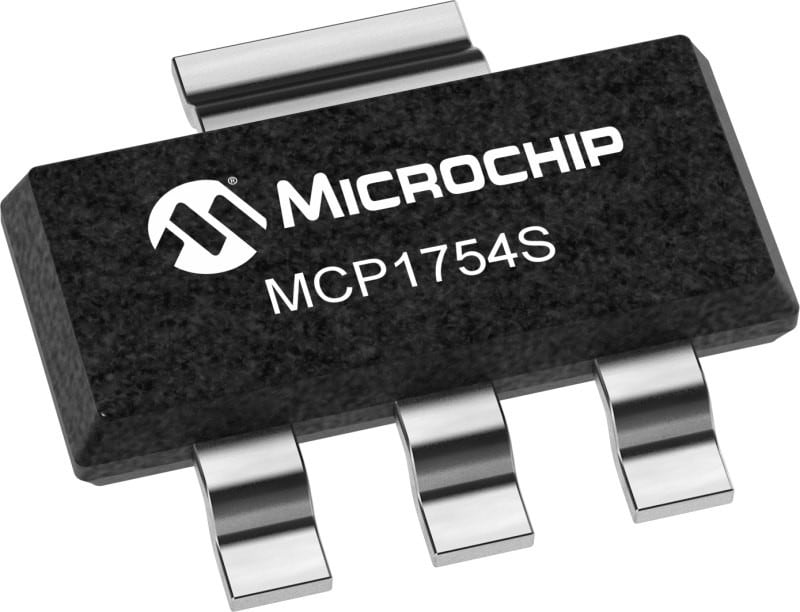

MCP1754ST-3302E/DB
16V, High PSRR, 150 mA LDO, Vout = 3.3V
The MCP1754/MCP1754S is a 16 volt, high PSRR voltage regulator with short-circuit current foldback.

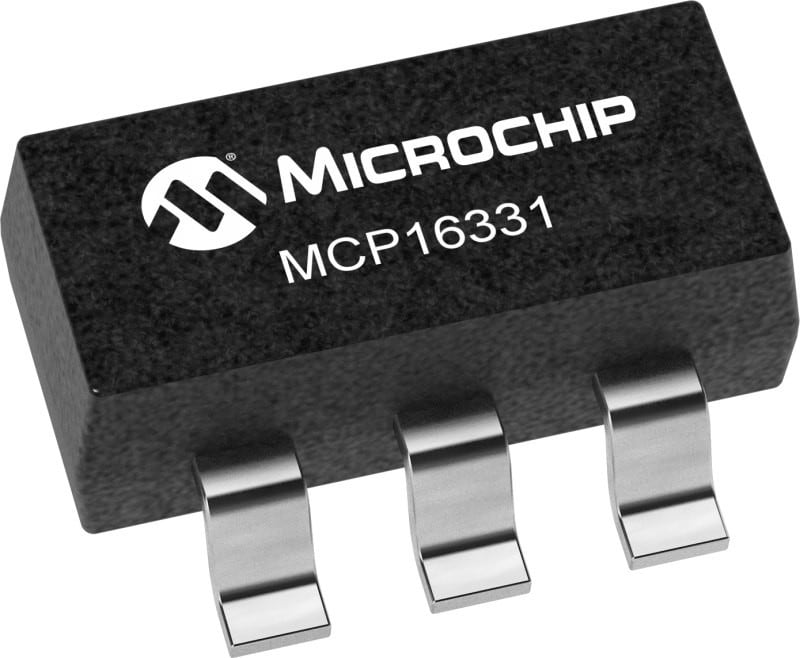

MCP16331T-E/CH
50V/1A Non-Synchronous Buck Regulator
The MCP16331 is a highly integrated, high-efficiency, fixed-frequency, step-down DC-DC converter in a popular 6-pin SOT-23 or 8-pin TDFN 2 × 3 package that operates from input voltage sources up to 50V.

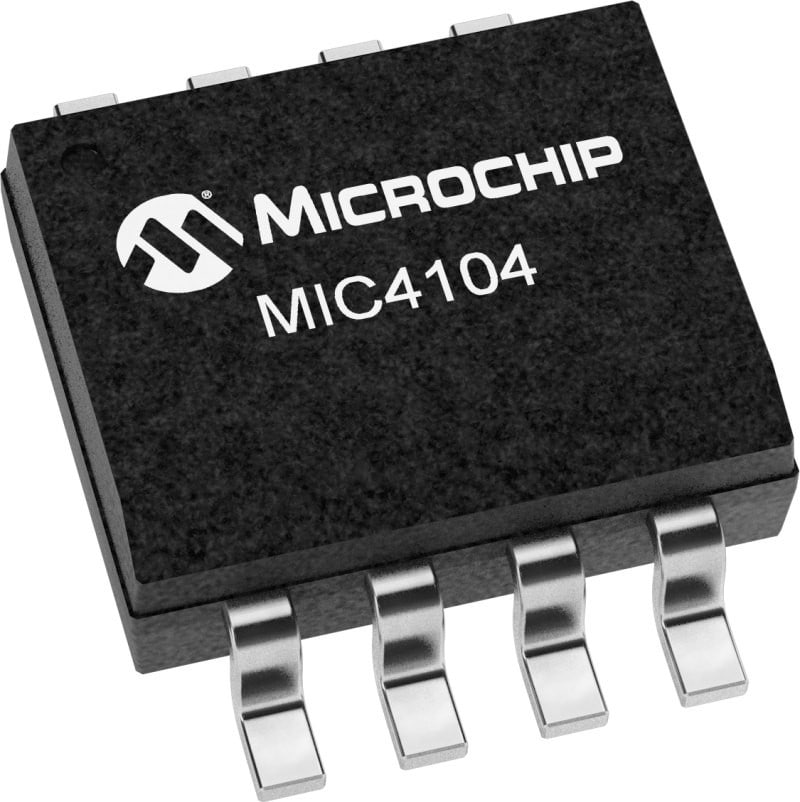

MIC4104
100V, 3A Half-Bridge MOSFET Gate Driver
The MIC4103 and MIC4104 are high-frequency, 100V half-bridge MOSFET drivers with faster turn-off characteristics than the MIC4100 and MIC4101 drivers.
Browse Inventory
Instantly see inventory availability for all components in the E-Scooter Reference Design.
Need Some Help?
We are here to support you. Contact our Client Success Team to get assistance with your design.
