Part Number: MA320014

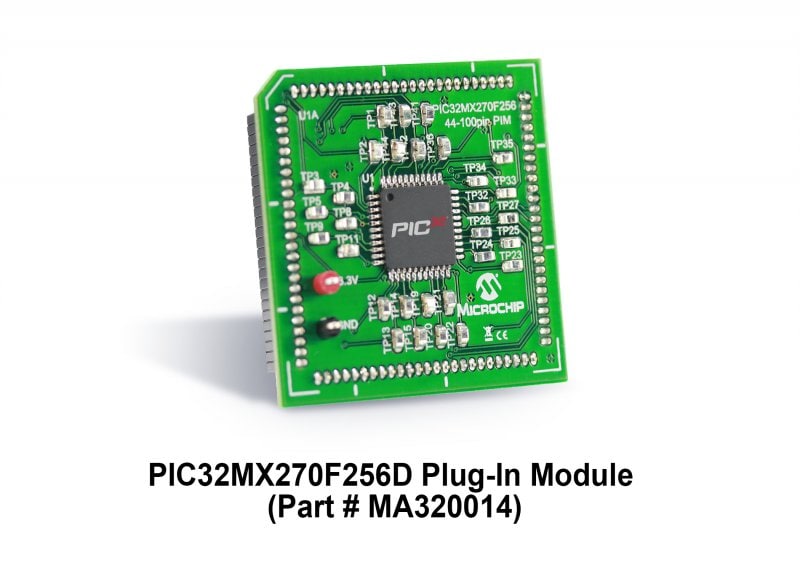

PIC32MX270F256D PLUG IN MODULE

  • 50 MHz/83 DMIPS
  • 256 KB Flash
  • 64 KB RAM
  • USB device/host/OTG support
  • SPI/I2S
  • UARTs
View Purchasing Options
Contact Us

Overview

The PIC32MX270F256D PIM is designed to demonstrate the capabilities of the PIC32MX1XX/ 2XX family of devices using Explorer 16 Development Board. It enables USB and graphics development with the PIC32MX2XX series.

The PIC32MX1XX/2XX family of devices is high-performance 32-bit microcontrollers in low-pin count packages.

Package Contents

N/A

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC32MX270F256D USB/Graphics 44-pin to 100-pinTQFP Plug-In Module (PIM) IS Download c399ca0b-17c4-4417-a7e0-f7450b0eb553
