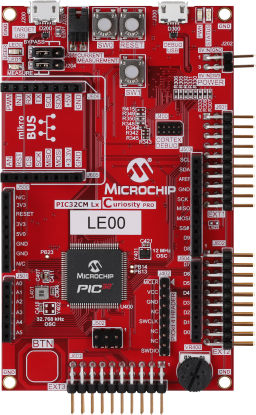

210205-MC32-PHOTO-EV80P12A-Front-Transparent
210205-MC32-PHOTO-EV80P12A-Front-Transparent

Part Number: EV80P12A

PIC32CM LE00 Curiosity Pro Evaluation Kit

Download Primary User Guide
  • PIC32CM LE00 32-bit MCU:
  • 48 MHz ARM® Cortex®-M23 Core
  • 512 KB Flash and 64 KB SRAM
  • Extension headers
  • Arduino Uno header connectors
  • mikroBUS™ socket
  • Embedded debugger
  • USB interface, Host or Device
  • Embedded current measurement XAM with Data Visualizer support for real-time power measurement
  • One Touch button
  • One Potentiometer
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The PIC32CM LE00 Curiosity Pro kit is ideal for evaluating and prototyping with the ultra low power PIC32CM LE00 ARM® Cortex®-M23 based microcontrollers. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.

Related Boards

Development boards with expanded options or features and that support similar set of applications as PIC32CM Lx and SAML1x/L2x MCUs include:

PIC32CM LE00 Curiosity Pro Evaluation Kit Overview

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC32CM LE00/LS00/LS60 Curiosity Pro User Guide Download f71592d0-7a60-4bbe-9ff3-b38679ad8db9
PIC32CM LE00/LS00/LS60 Curiosity Pro Board Change Notification Download 5e15b09b-cf6f-4a82-ab98-8447213fb8dd
PIC32CM LE00/LS00/LS60 Curiosity Pro Evaluation Kit Design Documentation Download 3dd6d1c7-75ab-4d79-a169-147a97a5bb38
Low Power Application on PIC32CM LE00 (Cortex M23) MCUs Using MPLAB® Harmony v3 Peripheral Libraries Link 18f69650-76cd-4e4f-b8db-fb5375e8eb93
How to Setup MPLAB Harmony v3 Software Development Framework PDF | HTML ccb6278b-6aab-4418-bca2-9da1a539ec15

Application Notes

Title
Date
Document Category
Getting Started with the PIC32CM LE00/LS00/LS60 Curiosity Pro Board 24 Aug 2022 Link Application Notes

Software

Title
Date
Getting Started Extended Application on PIC32CM LE00 Curiosity Pro Evaluation Kit 01 Feb 2024 Link
Smart Flame Detector Application Demonstration on PIC32CM LE00 Curiosity Pro Evaluation Kit Download 12 Sep 2024
More application demos on PIC32CM LE00 Curiosity Pro Evaluation Kit and other Development Boards/Kits having the same part number (PIC32CM5164LE00100) 25 Jul 2024 Link
