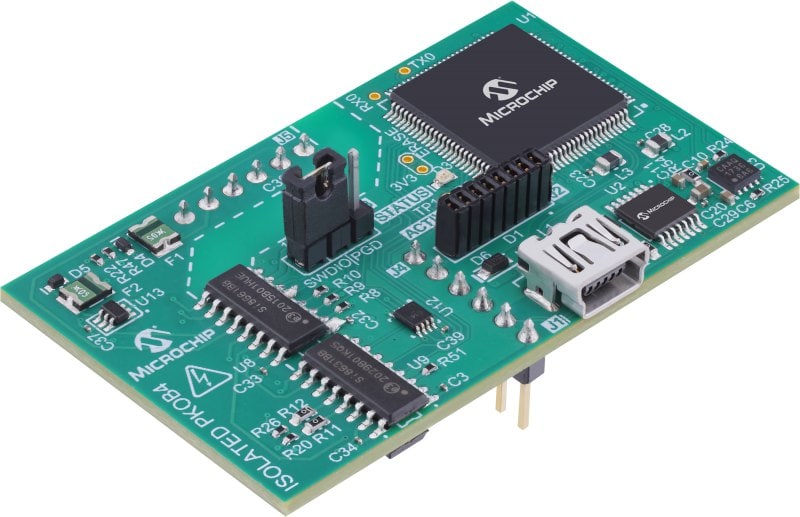

220328-mcu32-photo-dv43t08a-angle-transparent
220328-mcu32-photo-dv43t08a-angle-transparent

Part Number: DV43T08A

High Voltage Motor Control Isolated Debugger Card

Download Primary User Guide

The high voltage motor control isolated debugger card is intended for customers working with MCHV-2 or MCHV-3 high voltage motor control kits. This board offers a complete PKOB4 debugger / programmer with an isolation barrier to protect sensitive, low voltage test hardware and PC connections. It is compatible with SAM, PIC32 and dsPIC MCU's utilizing the Plug-In-Module (square, 100 pin interface) found on the MCHV-2 (DM330023-2) and MCHV-3 (DM330023-3) motor control development kits.

Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart
System Requirements

dsPICDEM MCHV-2 Development Board - DM330023-2

- or -

dsPICDEM MCHV-3 Development Board - DM330023-3

And associated MCU Plug-In-Module

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
High-Voltage Motor Control Isolated Debugger Card Download 0f59ffbb-01b2-450b-a79c-eb8bcec45ecb
