Part Number: EV47P31A

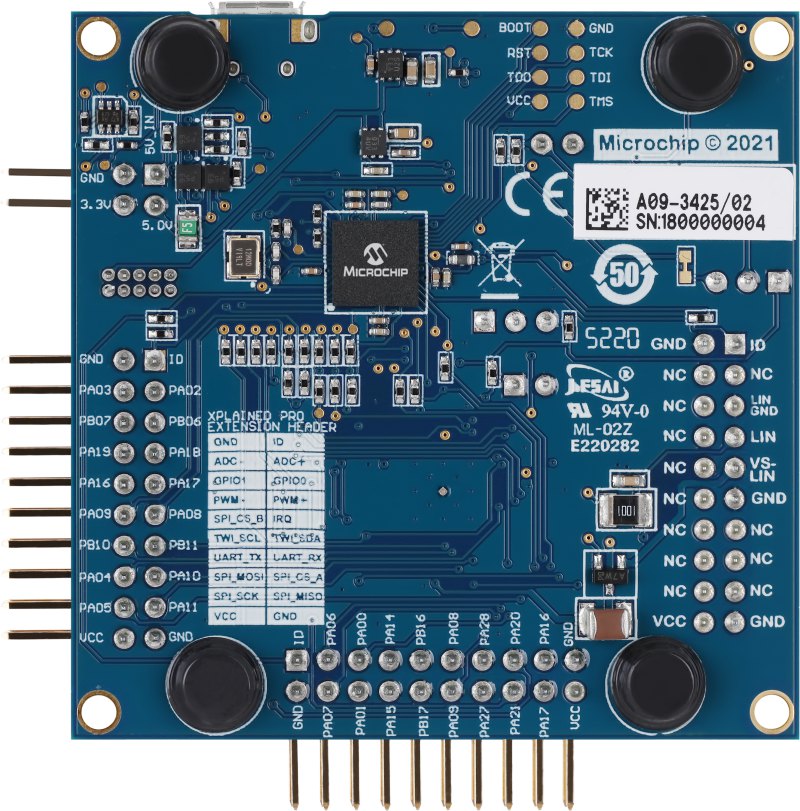

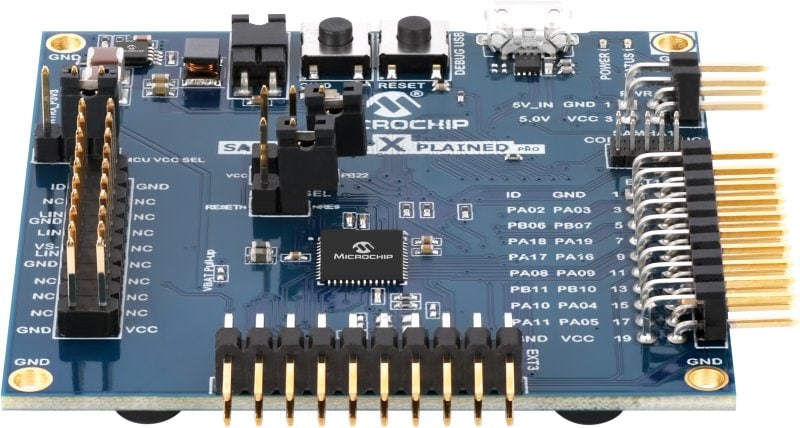

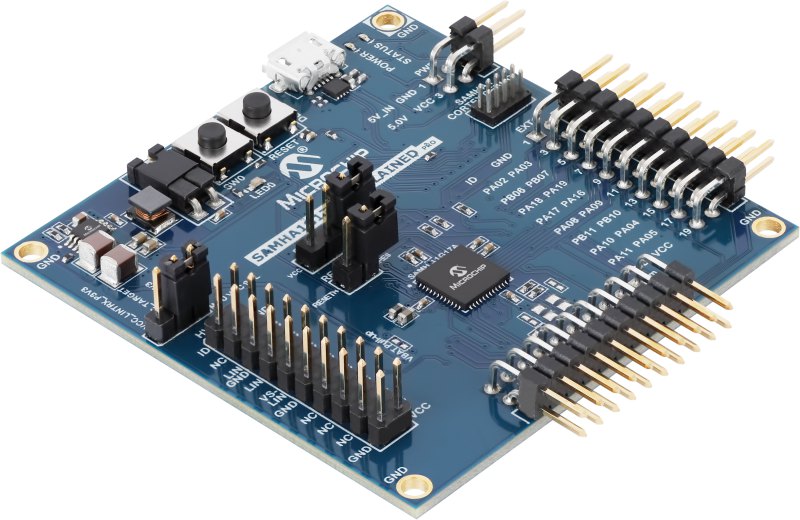

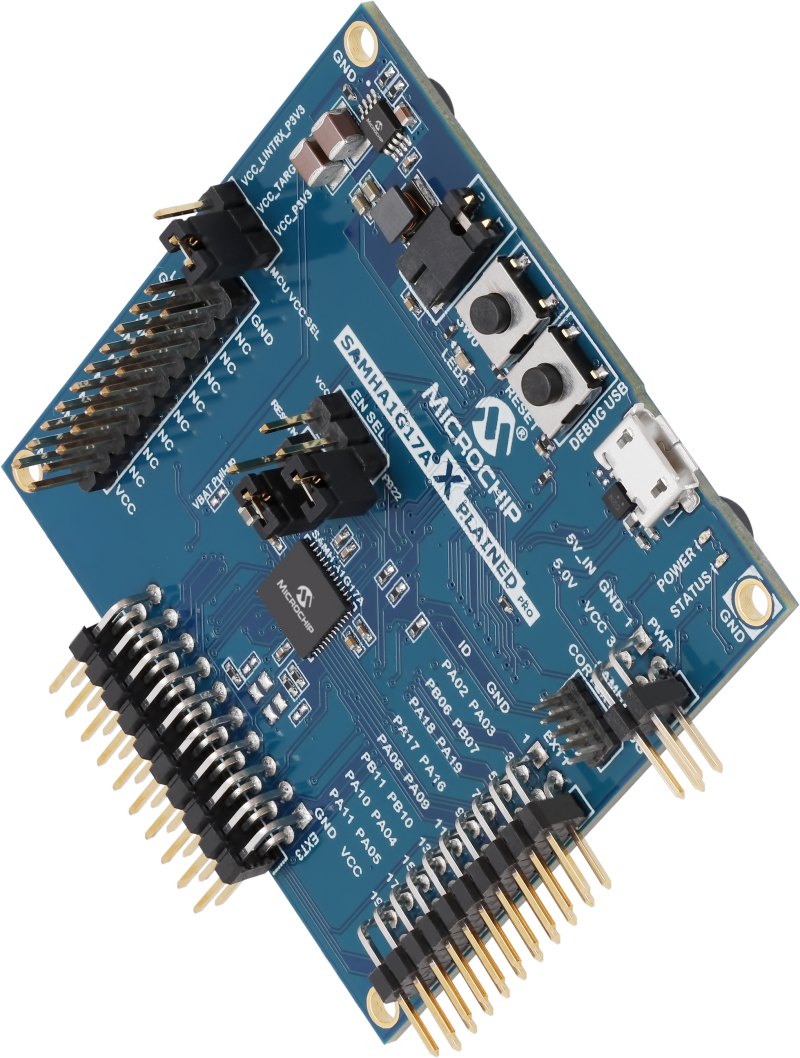

SAM HA1G17A XPLAINED PRO
ATSAMHA1G17A automotive grade System in package including a LIN Transceiver (ATA663231) with built-in 3.3V VREG
One mechanical reset button
One mechanical user pushbutton - Wake-up, bootloader entry or general purpose
One yellow user LED
2 Xplained Pro extension headers
1 High Voltage extension header (LIN functionality)
Embedded Debugger - Auto-ID for board identification in Microchip Studio. One yellow status LED. One green board power LED. Symbolic debug of complex data types including scope information. Programming and debugging. Data Gateway Interface: SPI, I2C, 4 GPIOs. Virtual COM port (CDC)
USB or LIN bus powered
Overview
The SAMHA1G17A Xplained Pro evaluation kit is ideal for evaluating and prototyping with the ATSAMHA1G17A Arm® Cortex®-M0+ based microcontrollers. Extension boards to the SAMHA1G17A Xplained Pro can be purchased individually.
The ATSAMHA1G17A-XPRO evaluation kit does not include extension boards.
The SAM HA1G17A Xplained Pro supports the I/O1 Xplained Pro, OLED1 Xplained Pro, QT2 and QT4 Xplained Pro and PROTO1 Xplained Pro extension boards.
