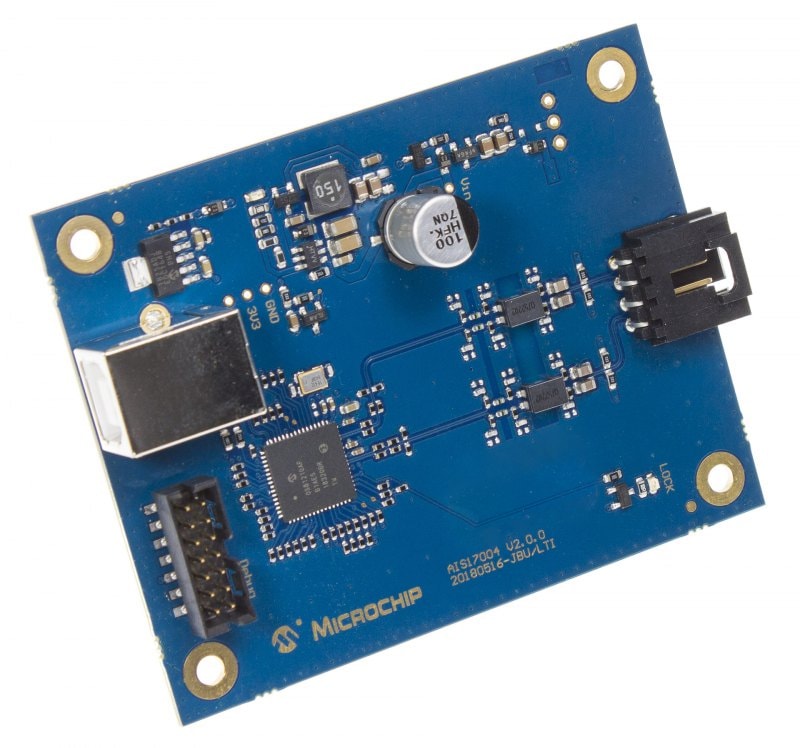

Part Number: B10481

USB APPLICATION BOARD 50UTP

Request Quote
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The USB Applications Board is used to attach any sort of computing module via USB to a bus interface for INICnet™ network (50utp version based on unshielded twisted pair) for rapid prototyping of a Master/ Root Node device.

The ReadMe in the File Section (UNICENS & INICnet™ Training/Getting Started) helps you to get a smooth start into UNICENS & INICnet™ Technology.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

B10482

SLIM AUXILIARY I/O BOARD 50UTP

The Slim Auxiliary I/0 Board is capable to sink or source stereo audio streams from or to the INICnet™ network. Any incoming audio stream on INICnet™ can be sent to its headphone jack to make it audible on a connected headphone. In parallel an audio stream from the LineIn input can be sourced to the INICnet™ network and routed to a Slim Auxiliary I/0 Board and a Slim Amplifier Board to make it audible again. For recording or further processing on a processing module, the audio data can also be routed to a USB Application Board.

B10483

SLIM MICROPHONE BOARD 50UTP

The Slim Microphone Board can serve as a stereo audio source, which is fed into the INICnet™ network. The data can be routed to a Slim Auxiliary I/0 Board and a Slim Amplifier Board to make it audible again. For recording or further processing on a processing module, the audio data can also be routed to a USB Application Board.

B10484

SLIM AMPLIFIER BOARD 50UTP

The Slim Amplifier Board can be used as a sink of a stereo audio stream coming from the INICnet™ network. The audio stream is delivered to loudspeaker terminals to make it audible through a connected speaker.

B10485

PODL INJECTOR BOX 50UTP

The Power over Data Line Injector Box is used to power the Slim Boards 50utp family over the data cable and can deliver up to 850 mA@12V nominal.

All Application Notes

Documentation

Title
Document Id
INICnet™ Technology 50utp Slim Board Family User's Guide Download f333983e-b2e6-48bb-895e-3655b5ba88b0
