Part Number: ATBTLC1000ZR-XSTK
ATBTLC1000ZR-XSTK - BTLC1000ZR-XSTK
- The ATBTLC1000-ZR110CA BLE module with 2.4GHz BLE4.1 compliant ATBTLC1000 SoC (System on Chip)
- 3.3V power source from the Xplained Pro through XPro Extension header
- RESET switch (Option provided for user to mount)
- Power LED
- Current measurement header
- On Board Temperature Sensor
- SWD header (Option provided for user to mount)
- External SPI serial Flash (Option provided for user to mount)
- Extension Port Header - UART, Debug UART, GPIO
- 32KHz crystal
- Supported with application examples in Atmel Software Framework
Overview

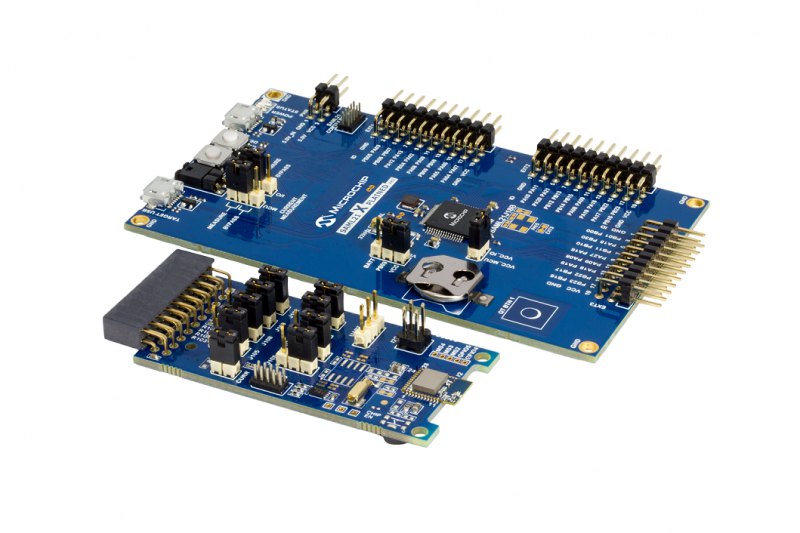

The ATBTLC1000ZR Xplained Starter Kit is a hardware platform to evaluate the ATBTLC1000-ZR110CA module with the ARM Cortex M0+ SAML21 Xplained Pro host MCU evaluation board. The Xplained Pro extension plugs into the SAML21 Xplained Pro evaluation board to quickly add Bluetooth Smart connectivity. The ATBTLC1000-ZR110CA module is based on Microchip's industry leading lowest power Bluetooth Low Energy 4.1 compliant SoC, ATBLTC1000-MU-T.
Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATBTLC1000-ZR110CA BLE module and explains how to integrate the device in a custom design with the Cortex M0+ SAML21 MCU.
Package Contents
- ATBTLC1000ZR Xplained Eval board
- SAML21 Xplained Pro evaluation board
