Part Number: ARD00598

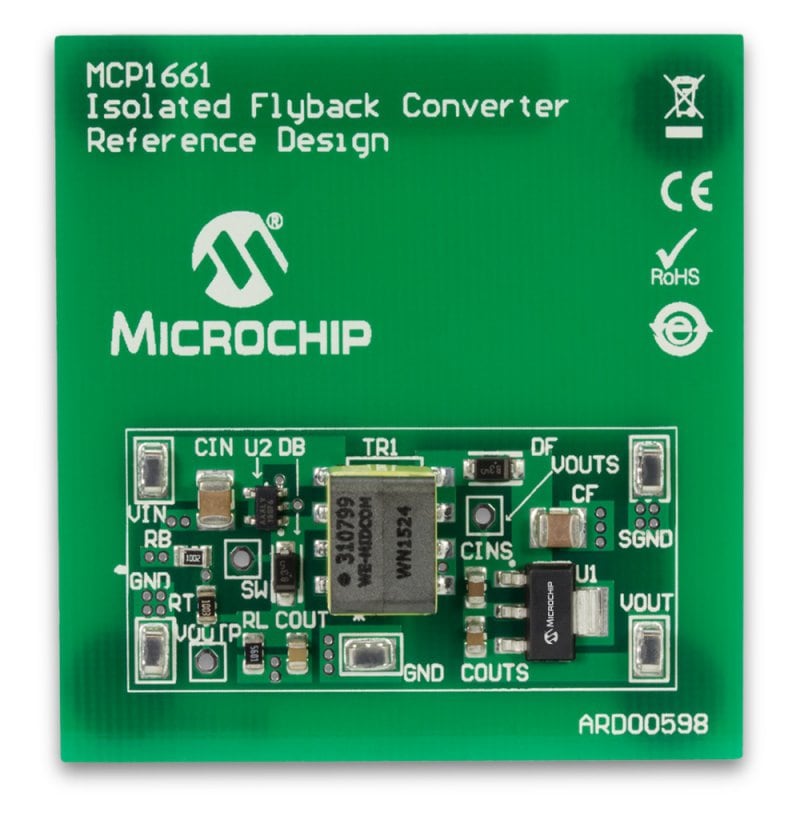

MCP1661 FLYBACK CONVERTER REFERENCE DESIGN
The MCP1661 Flyback Converter Reference Design has the following features:
- Input voltage: 4.25V-5.25V, typical
- USB standard input voltage range
- Output Capability:
- Over 200mA (at Vout=5V)
- Galvanic isolation
- Short-circuit protection
- Galvanic isolation
- Short-circuit protection
- Efficiency up to 75%
- PWM Operation at 500kHz
Overview
The MCP1661 Flyback Converter Reference Design provides an example of a galvanically isolated power supply.The board is used to evaluate and demonstrate Microchip Technology's MCP1661 in the following topology:
- 5V output Isolated Flyback Converter application supplied from 5V typical input voltage.
It is used to evaluate the 5-Lead SOT-23 package.
By changing the LDO, a lower/higher output voltage than 5V will be obtained, but with different capabilities regarding maximum output current and efficiency.
To download Reference Design Files, please request them here.
Package Contents
- 1 x MCP1661 Flyback Converter Reference Design (ARD00598)
