dsPIC30F2011 | Microchip Technology

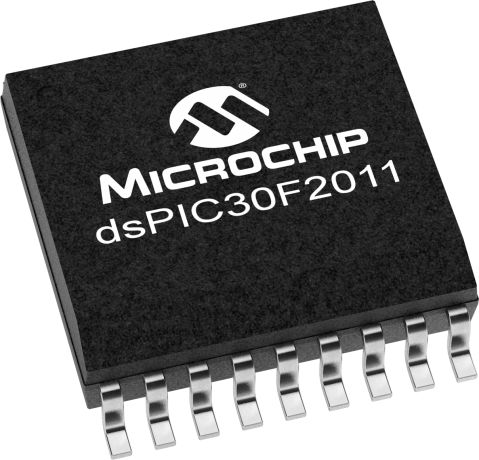

dsPIC30F2011

Status: In Production
Data Sheet:
PDF
dsPIC30F2011/2012/3012/3013 Data Sheet
Overview Documentation Tools And Software Design Resources Similar Devices Purchase Related Videos

Overview

Alternate products
Compare Products (3)
  • CPU Type:dsPIC® DSC
  • CPU Speed Max MHz (megahertz):30
  • Program Memory Size (KB):12
  • Multiple Flash Panels:False
  • Direct Memory Access (DMA) Channels:0
  • Temp. Range Min.(C°):-40
  • Temp. Range Max.(C°):125
  • Operation Voltage Min.(V):2.5
  • Operation Voltage Max.(V):5.5
  • Pin Count:18
  • Low Power:No
  • Number of Comparators:0
  • ADC Modules:1
  • ADC Channels:8
  • ADC Resolution Max:12
  • ADC Sampling Rate (ksps):200
  • Number of DACs:0
  • DAC outputs:0
  • Max DAC Resolution (bits):0
  • Hardware RTCC:No
  • Motor Control PWM Channels:0
  • SMPS PWM Channels:0
  • Number of PWM Time Bases:1
  • Output Compare Channels:2
  • USB Interface:None
  • Number of CAN Modules:0
  • Type of CAN module Max:None
  • Crypto Engine:No
  • Quadrature Encoder Interface (QEI):0
  • Segment LCD:0
  • LCD/Graphics Interface:No
  • Configurable Logic Cell Modules (CLC /CCL):0
  • Peripheral Pin Select (PPS)/Pin Muxing:No
Read more
    High-Performance dsPIC30F core
  • Modified Harvard architecture
  • C compiler optimized instruction set architecture
  • 24-bit wide instructions, 16-bit wide data path
  • Up to 30 MIPS operation
  • DSP Engine for math intensive operations
  • Modulo and Bit-Reversed Addressing modes
  • Two, 40-bit wide accumulators with optional saturation logic
  • 17-bit x 17-bit single cycle hardware fractional/ integer multiplier
  • Single cycle Multiply-Accumulate (MAC) operation
  • 40-stage Barrel Shifter
  • Dual data fetch
    Operating Conditions
  • Wide operating voltage range (2.5V to 5.5V)
  • Industrial and Extended temperature ranges
    Peripheral Features
  • High current sink/source I/O pins: 25 mA/25 mA
  • Optionally pair up 16-bit timers into 32-bit timer modules
  • 3-wire SPI™ modules (supports 4 Frame modes)
  • I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
  • Addressable UART modules with FIFO buffers and selectable pins
  • Analog Features
  • 12-bit 200 Ksps Analog-to-Digital Converter (A/D)
  • A/D Conversion available during Sleep and Idle
  • 1 Sample/Hold
  • Multiple Conversion Sequencing Options
    Special Microcontroller Features
  • Enhanced Flash program memory with 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)
  • Data EEPROM memory with 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation
  • Fail-Safe clock monitor operation
  • Detects clock failure and switches to on-chip low power RC oscillator
  • Programmable code protection
  • In-Circuit Serial Programming™ (ICSP™)
  • Programmable Brown-out Detection and Reset generation
  • DC to 40 MHz external clock input
  • Internal FRC input with PLL active (4x, 8x, 16x)
  • 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)
  • 10 MHz - 20 MHz oscillator input in HS/2 or HS/3 with PLL active (4x, 8x, 16x)
  • Sleep, Idle and Alternate Clock modes for power management
dsPIC30F Sensor Family 16-bit Digital Signal Controller Seamless migration options from this device to dsPIC33F, PIC24H or PIC24F devices in similar packages.
