High Voltage Output Boost LED Constant Current Regulator
Overview
- Max Duty Cycle (%):90
- Input Voltage Range Max:5.5
- Input Voltage Range Min:2.4
- # of Outputs:0
- Output Current:300
- Driver Type:Step Up (Boost)
- Quiescent Current:0.25
- Synchronous Rectifier:No
- Temp Range Max °C (degrees Celsius):125
- Temp Range Min °C (degrees Celsius):-40
- Vout Max:32
- Vfb V (volt):0.3
- Vref (V):0
- Up to 92% Efficiency
- High Output Voltage Range: up to 32V
- ILEDup to 300 mA @ 5.0V VIN, 4 White LEDs
- ILED up to 200 mA @ 3.3V VIN, 4 White LEDs
- ILED up to 150 mA @ 4.2V VIN, 8 White LEDs
- Input Voltage Range: 2.4V to 5.5V
- UVLO@VIN Rising: 2.3V, typical
- UVLO@VIN Falling: 1.85, typical
- No Load Input Current: 250 µA, typical
- Sleep mode with 200 nA Typical Quiescent Current
- PWM Operation with Skip mode: 500 kHz
- Feedback Voltage Reference: VFB= 300 mV
- Cycle-by-Cycle Current Limiting
- Internal Compensation
- Inrush Current Limiting and Internal Soft-Start
- Feedback Pin Shorted to GND (Prevent Excessive Current into LEDs)
- Disconnected LED String (Prevent Overvoltage to the Converter’s Output and SW Pin)
- Overtemperature Protection

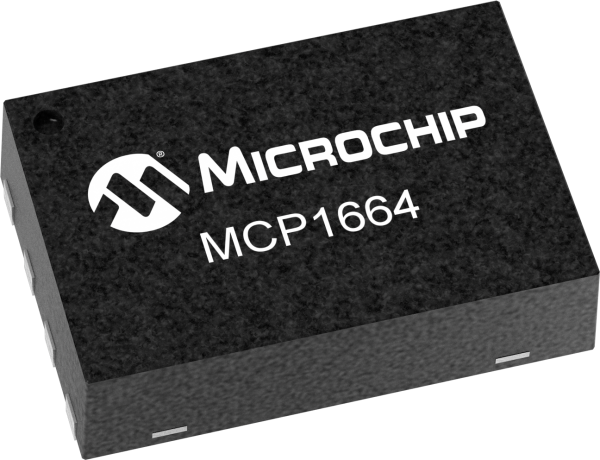

- Available Packages: 5-Lead SOT-23 or 2x3 8-Lead TDFN
The MCP1664 device is a compact, space-efficient, fixed-frequency, non-synchronous step-up converter optimized to drive LED strings with constant current from two and three-cell alkaline and NiMH/NiCd or one-cell Li-Ion or Li-Polymer batteries.
The device integrates a 36V, 400 mΩ low-side switch, which is protected by the 1.8A cycle-by-cycle inductor peak current limit operation. Low-voltage technology allows the MCP1664 to start-up without high inrush current or output overshoot. All compensation and protection circuitry is integrated to minimize the number of external components.
The device integrates a 36V, 400 mΩ low-side switch, which is protected by the 1.8A cycle-by-cycle inductor peak current limit operation. Low-voltage technology allows the MCP1664 to start-up without high inrush current or output overshoot. All compensation and protection circuitry is integrated to minimize the number of external components.
Use your up or down key to switch images.
Tools And Software
Development Environment
Demo & Evaluation Boards
| Tools |
|---|
 Online power solutions, accelerated
MPLAB Analog Designer (MAD) allows you to choose an existing solution or customize a suggested design. Schematics and component lists are included. View or modify your choice and, with one click, export the design files to MPLAB Mindi Analog Simulator for verification and analysis.
|
| Tools |
|---|
| The MCP1664 LED Driver Evaluation Board is used to evaluate and demonstrate Microchip Technology’s MCP1664 product. This board demonstrates the MCP1664 in a boost converter application supplied from an external voltage source, which drives a string of LEDs with three selectable currents. The MCP1664 LED Driver Evaluation Board was developed to help engineers reduce the product design cycle time. |
