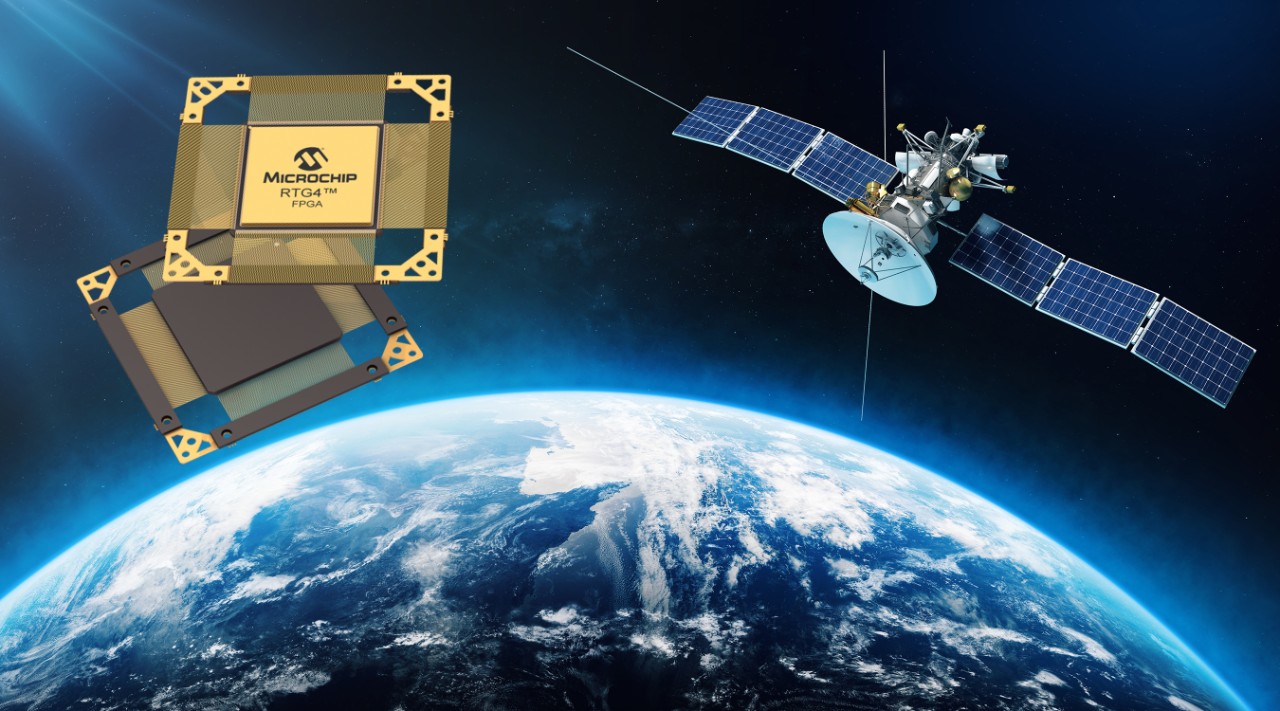

RTG4™ Radiation-Tolerant FPGAs

High-Speed QML Class V-Qualified FPGAs for Space

RTG4™ FPGAs integrate our fourth-generation Flash-based FPGA fabric and high-performance interfaces, such as Serialization/Deserialization (SerDes), on a single chip. They are resistant to radiation-induced configuration upsets in the harshest radiation environments, making them excellent options for use in Low Earth Orbit (LEO), Medium Earth Orbit (MEO), Geostationary Equatorial Orbit (GEO), Highly Elliptical Orbit (HEO) and deep-space flight applications. The RTG4 FPGA family offers up to 151,824 registers, which are hardened by design against radiation-induced Single-Event Upsets (SEUs), and up to 24 lanes of 3.125 Gbps SerDes.

Key Benefits

Radiation Tolerance

Total ionizing dose (TID) > 100 krad
Configuration memory upsets immunity to LET > 103 MeV.cm2/mg
Single-Event Latch-up (SEL) immunity to LET > 103 MeV.cm2/mg
SEU-hardened registers eliminate the need for Triple-Module Redundancy (TMR)
SRAM has a built-in Error Detection and Correction (EDAC)
Global clocks and resets are hardened against Single-Event Transients (SETs)

Qualification for Space Flight

QML Class V qualification has been achieved for CG(G)A/LG(G)A 1657 and CQ(G)FP 352 ceramic packages
JEDEC qualification is completed for the FC/FCG 1657 sub-QML Ball Grid Array (BGA) plastic package, which is well suited for small satellite or constellation applications

Flight Heritage

The RTG4 FPGA has achieved flight heritage on Mission Extension Vehicles (MEV) 1, 2 and CAS-500
The RTG4 FPGA is currently baselined in many US and international programs

Featured Applications and Capabilities

RTG4 FPGAs offer a variety of qualification levels, screening flows and package options, which make them ideal for Class 1 space missions, New Space constellations, medical electronics, nuclear power plant control and many other applications.

Space

Learn More

Radiation and Reliability

Learn More

Radiation-Tolerant FPGAs

Learn More

Sub-QML FPGAs

Learn More

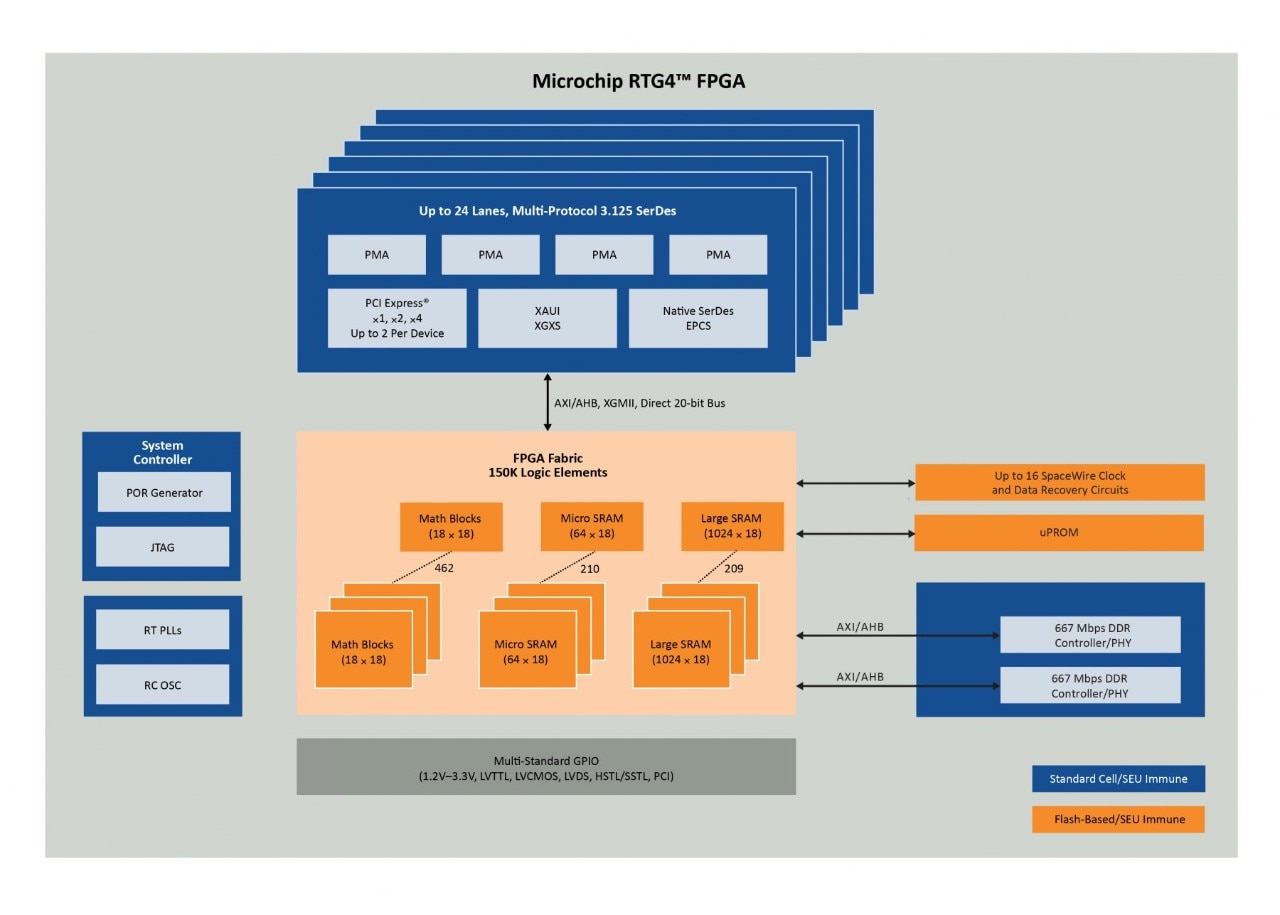

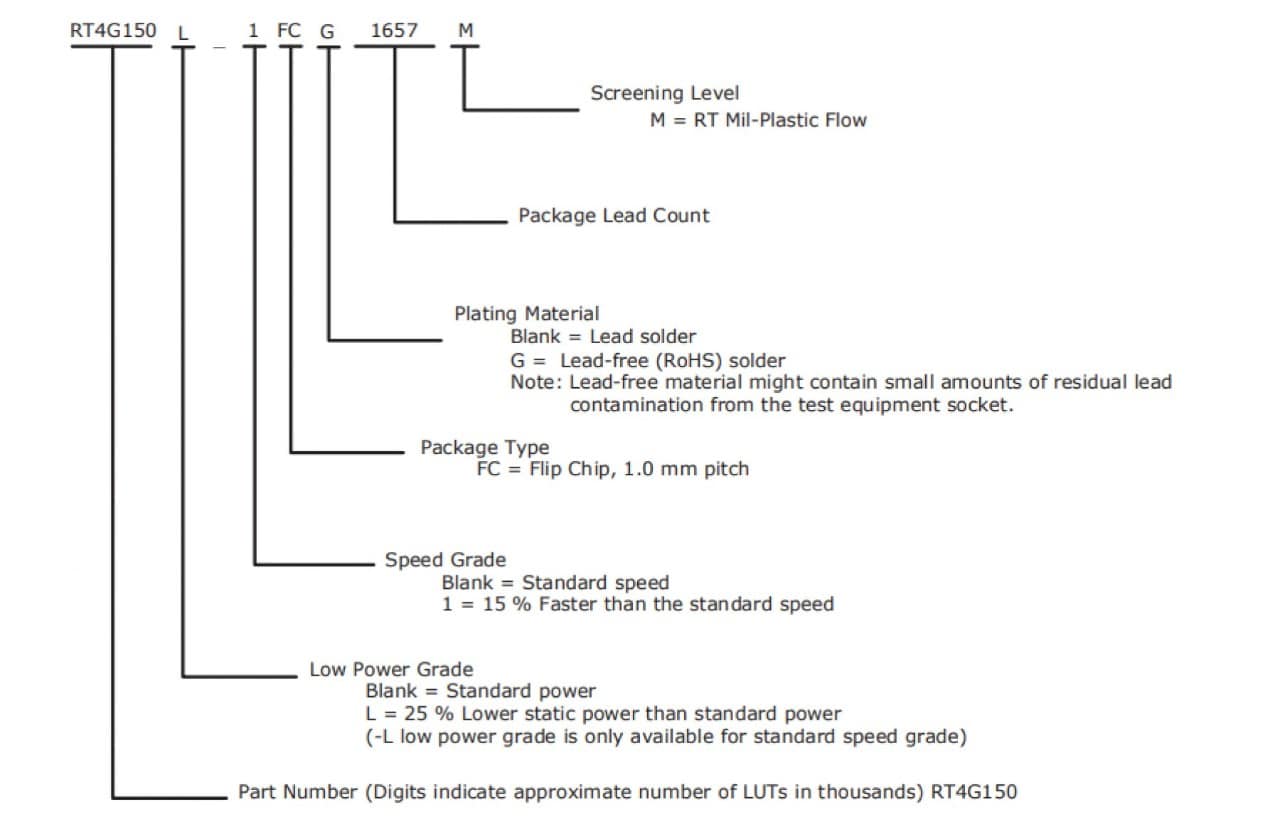

RTG4 FPGA Product Family

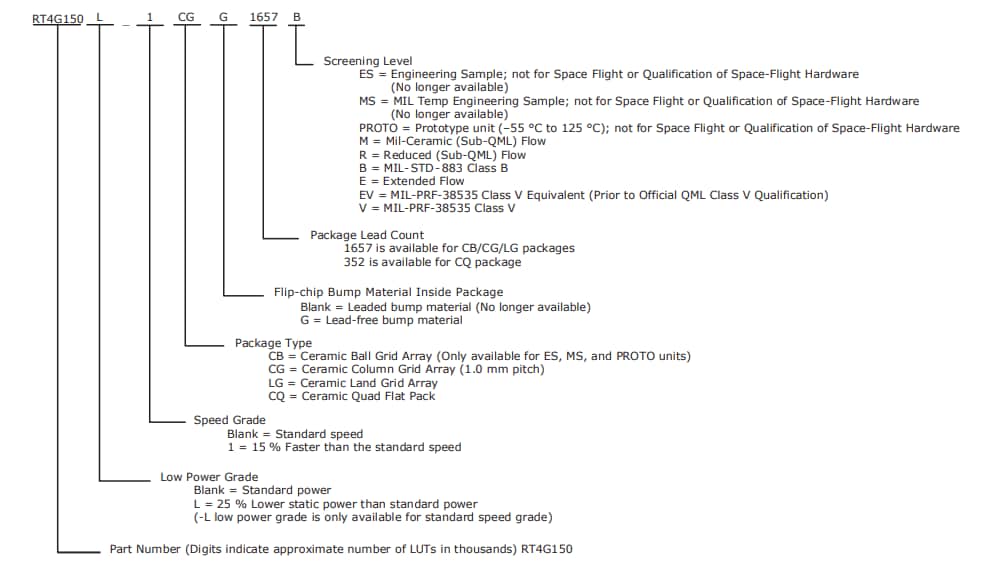

Packages

	CG(G)1657/LG(G)1657	FC(G)1657	CQ(G)352
CG1657 (Ceramic Column Grid Array, Six Sigma Columns, Leaded) CGG1657 (Ceramic Column Grid Array, Six Sigma Columns, Lead-Free) LG1657 (Ceramic Column Grid Array, Six Sigma Columns, Leaded) LGG1657 (Ceramic Column Grid Array, Six Sigma Columns, Lead-Free)	QML-V Qualified
FCG1657 (Ball Grid Array Plastic Package, Lead-Free) FC1657 (Ball Grid Array Plastic Package, Leaded)		JEDEC Qualified
CQ352 (Ceramic Quad Flat Pack, Leaded) CQG352 (Ceramic Quad Flat Pack, Lead-Free)			QML-V Qualified
Package Body Size	42.5 mm × 42.5 mm	42.5 mm × 42.5 mm	48 mm × 48 mm

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
User Guide	RTG4 FPGA System Controller User Guide	02 Feb 2023
User Guide	RTG4 FPGA Programming User Guide UG0602	12 Jun 2024
User Guide	UG0741: RTG4 FPGA I/O User Guide	08 Feb 2024
User Guide	RTG4 FPGA Fabric User Guide	20 Nov 2023
User Guide	RTG4 FPGA Clocking Resources	09 Feb 2024
User Guide	RTG4 FPGA High-Speed Serial Interfaces User Guide (Earlier UG0567)	07 Jun 2024
User Guide	UG0019: DLA Cross Reference User Guide	11 May 2004
User Guide	RTG4 FPGA DDR Memory Controller User Guide	11 Aug 2023
Application Notes	RTG4 FPGA Temperature Monitor using LM99 Temperature Sensor	23 Aug 2019	Design Files
Application Notes	AN4947: Building Mi-V Processor Subsystem for RTG4 FPGA Application Note (Earlier AC490)	25 Jul 2024	Design Files
Application Notes	AN4829: RTG4 Radiation Mitigated Clock and Reset Network Usage (Earlier AC463)	20 Dec 2024	Design Files
Application Notes	AC474: RTG4 Metastability Characterization Report	18 Jun 2018
Application Notes	Simultaneous Switching Noise and Signal Integrity	23 Jan 2023
Application Notes	AN5558: Thermal Management and Mounting Methods for RTG4™ and RT PolarFire® FPGAs in Space Applications (Earlier AC486)	23 Jan 2025	Design Files
Application Notes	Migrating RTG4 Designs from Plastic FC/FCG1657 Package to Ceramic CG/LG1657 Package	04 Feb 2022
Application Notes	AC459: LX7730 Interface Reference Design Using RTG4 FPGA Application Note	07 Feb 2022	Design Files
	RTG4 FPGA and LX7720 BLDC and Stepper Motor Demonstration	10 Feb 2022
Application Notes	AN4893: RTG4 CCC Dynamic Configuration Application Note (Earlier AC458)	20 Jul 2023	Design Files
Application Notes	Addendum: RTG4 FPGAs Board Design and Layout Guidelines	08 Jun 2023
Application Notes	AN4751: Implementing SpaceWire Clock and Data Recovery in RTG4 FPGAs Application Note (Earlier AC444)	14 Feb 2025	Design Files
Application Notes	AN4946: RTG4 FPGA SerDes EPCS Protocol Design Application Note (Earlier DG0624)	09 May 2023	Design Files
Application Notes	AN4945: Low Power Design Application Note (Earlier TU0565)	08 Oct 2024	Design Files
Application Notes	AN4891: Error Detection and Correction on RTG4 LSRAM Memory Application Note (Earlier DG0703)	19 May 2023	Design Files
Application Notes	AN4948: RTG4 FPGA SerDes XAUI Application Note (Earlier DG0760)	19 May 2023	Design Files
Application Notes	AN4972: Board Design and Layout Guidelines for RTG4 FPGAs (Earlier AC439)	08 Jun 2023
Application Notes	AN4892: RTG4 SRAM Initialization After Powerup Using μPROM Application Note (AC454)	26 Jun 2023	Design Files
Application Notes	AN4944: RTG4 FPGA Fabric Application Note (Earlier LG0623)	05 Jul 2023	Design Files
Application Notes	AN4894: Optimization Techniques to Improve DDR Throughput for RTG4 Devices Application Note (Earlier AC446)	15 Oct 2024	Design Files
Application Notes	Optimization Techniques For RTG4 FPGA DDR Throughput Application Note	02 Apr 2024	Design Files
Application Notes	AN4835: LiteFast IP on RTG4 Device Application Note (Earlier DG0729)	22 Aug 2016	Design Files
Application Notes	AN4752: Interfacing RTG4 FPGA with External DDR3 Memory Application Note (Earlier DG0625)	11 Oct 2022	Design Files
Application Notes	AN4753: RTG4 DSP FIR Filter Application Note (Earlier DG0630)	07 Oct 2024	Design Files
Application Notes	RTG4 FPGA SRAM Initialization After Power-up Using µPROM	16 Apr 2024	Design Files
Application Notes	Inferring RTG4 FPGA RAM Blocks - Synopsys Application Note	01 Aug 2016	Design Files
Board Design Files	RTG4 MSIOD IO Banks IBIS Model	26 Apr 2015
Board Design Files	RTG4 DDRIO IO Banks IBIS Model	26 Apr 2015
Board Design Files	RTG4 MSIO IBIS Model	21 Apr 2015
	RT4G_IBIS_AMI_Package	23 Jan 2023
Miscellaneous	RTG4_Power_Estimator	26 Sep 2022
Supporting Collateral	RTG4 FPGA Power Estimator User Guide	29 Jan 2015
Supporting Collateral	WP0191: Mitigation of Radiation Effects in RTG4 FPGAs White Paper	07 Apr 2015
Supporting Collateral	WP0194: Confidently Deploy RTG4 FPGAs in Space-based Systems - A Reliability Overview	27 May 2015
Board Design Files	RT4G150_ES-CG1657M BSDL	09 Dec 2019
Board Design Files	RT4G150 CG1657 BSDL	23 Sep 2015
Board Design Files	RT4G150L-FCG1657M BSDL	28 Apr 2020
Board Design Files	RT4G150-FCG1657M BSDL	28 Apr 2020
Board Design Files	RT4G150L-CG1657M BSDL	28 Apr 2020
Board Design Files	RT4G150L-CQ352M BSDL	28 Apr 2020
User Guide	RT4G150-CG1657M BSDL	09 Dec 2019
Board Design Files	RT4G150-CQ352M BSDL	28 Apr 2020
Board Design Files	RT4G150-CQ352	12 Mar 2019
Supporting Collateral	RT4G150-CG1657	22 Feb 2018
	Prototyping for Space-Flight Designs with RT-PROTO FPGAs	30 Mar 2022
Data Sheets	RTG4™ FPGA Datasheet	29 Feb 2024
Packaging Specifications	RTG4 FPGA Pin Descriptions Datasheet	21 Sep 2023
Data Sheets	RTG4™ FPGA Technical Brief	17 Jan 2024
Application Notes	RTG4 FPGA PCIe Dataplane Demo Using Scatter-Gather DMA Controller Guide	16 Apr 2024	Design Files
	RTG4 PLL Temperature Rise Window Calculator	06 Apr 2022
Application Notes	RTG4 FPGA PCIe Data Plane Using Two Channel Fabric DMA Demo Guide	16 Apr 2024	Design Files
Application Notes	RTG4 FPGA Power Measurement Tutorial	16 Apr 2024	Design Files
Errata	RTG4 FPGA Errata	24 Jun 2024
	CR0031: RTG4 FPGA PCIe Characterization Report	31 Jan 2022
	TR0067: RTG4 FPGA SerDes Interoperability with TI TLK2711 Test Report	31 Jan 2022
	CR0028: RTG4 FPGA XAUI Characterization Report	31 Jan 2022
Supporting Collateral	TR0030: RTG4 FPGA CoreJESD204BRX Interoperability Test Report	04 Apr 2017
Packaging Specifications	RTG4 FPGA: CG1657 LG1657 CB1657 Package Pin Assignment Table	25 Apr 2023
Package Drawings	RTG4 - FC1657 Package Pin Assignment Table	22 May 2024
Package Drawings	RTG4 CQ352 Package Pin Assignment Table	22 May 2024
